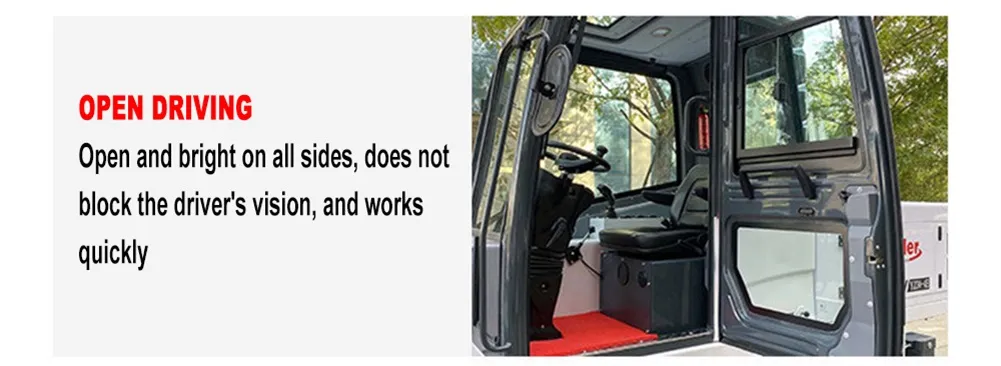

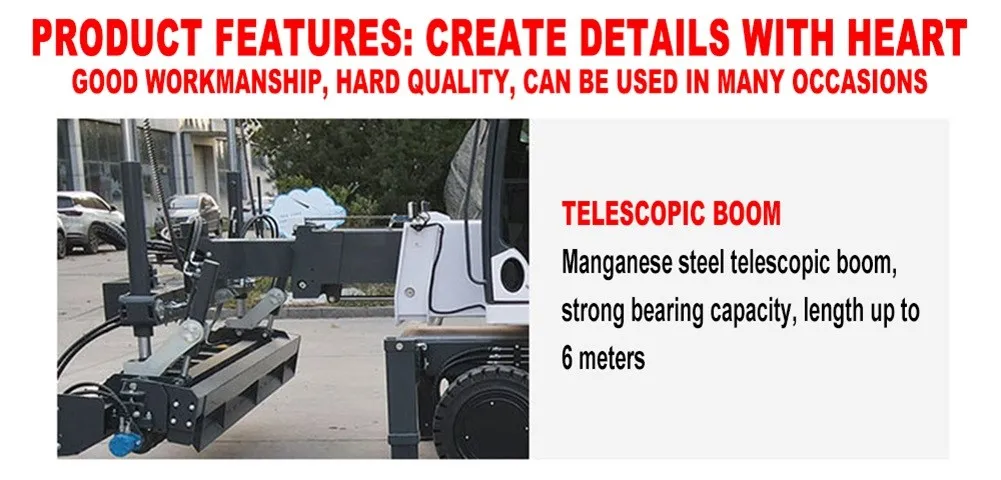

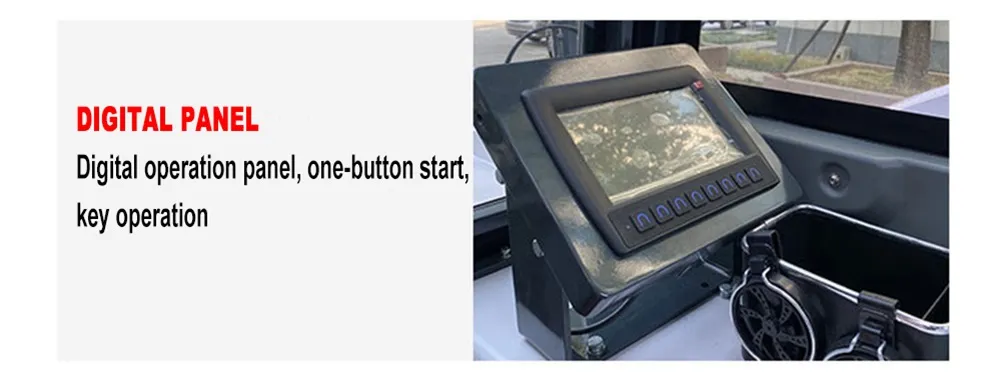

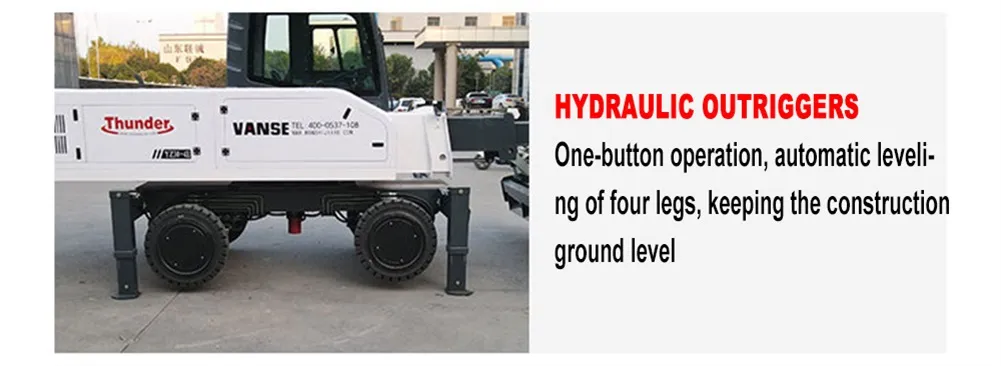

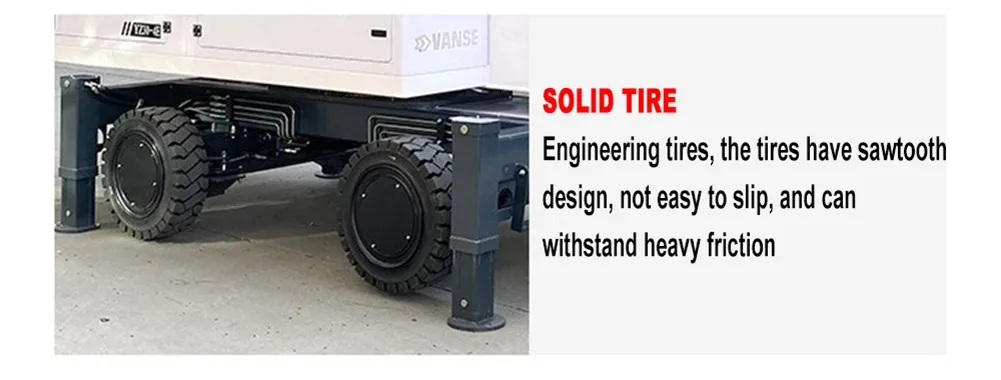

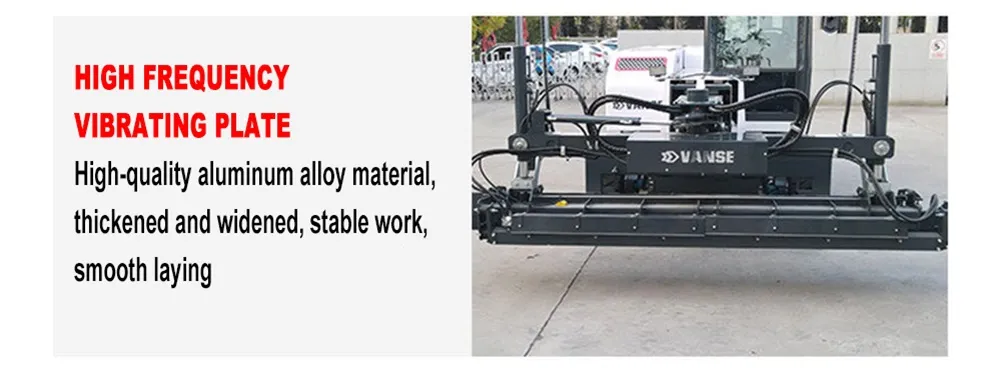

Precautions for safe use of concrete laser leveling machine

The process of positioning and reflection achieved by the laser scanning system of the laser leveling machine is as follows: Laser leveling machines use laser beams to detect and adjust the flatness of object surfaces. The laser beam is generated by a launch system and illuminated on a plane mirror. The plane mirror reflects the laser light onto the surface of the object, forming a spot. The position change of the light spot is detected by a high-precision displacement sensor. In this way, the height difference on the surface of the object can be calculated. The displacement sensor transmits the detected signal to the control system, and the control system controls the position and energy of the laser beam through the feedback control system. The control system adjusts the position and energy of the laser beam according to the preset flatness requirements and sensor feedback information, thereby adjusting the flatness of the object surface. During the adjustment process, the laser beam continuously scans the surface of the object and makes corrections based on feedback information from the sensor until the predetermined flatness requirements are reached. The above content is for reference only. If you need more comprehensive and accurate information, you can check the working principle or operating instructions of the laser leveling machine or consult our business manager.

Fuel problem: Insufficient fuel or poor fuel quality may cause the engine to fail to start. For example, using fuel containing impurities or too much water will affect the combustion process. Spark plug failure: The spark plug is worn or seriously carbonized, and cannot produce a strong enough spark to ignite the mixture. This is prone to happen to the spark plug after long-term use or working in harsh environments. Air filter blockage: Air cannot enter the engine smoothly, causing the mixture ratio to be unbalanced, affecting combustion. In a dusty construction environment, the air filter is easily blocked. Starter motor failure: The starter motor is damaged and cannot drive the engine crankshaft to rotate, so it cannot start. Motor brush wear, winding short circuit, etc. may cause failures. Check the fuel: Make sure there is enough fuel and use qualified fuel. If you suspect there is a problem with the fuel, you can replace it with new fuel. Check and replace spark plugs: Check the status of spark plugs regularly, clean carbon deposits or replace worn spark plugs. Generally speaking, the service life of spark plugs varies according to the frequency of use and working conditions, and they need to be checked about every 100-200 hours of working time. Clean or replace air filter: Clean the air filter regularly according to the dust conditions in the working environment. If the blockage is serious, replace the new filter in time. Check the starter motor: If the starter motor is faulty, it needs to be repaired or replaced by a professional. Improper installation of the trowel or spatula: The trowel or spatula is not installed firmly, which will cause looseness and abnormal vibration during operation. It may be that the mounting screws are not tightened, or the spatula is displaced by impact during use. Bearing damage: The bearings of the trowel machine may wear or be damaged after long-term use, causing abnormal vibration of the machine. For example, the bearings may be damaged by lack of lubrication or excessive load. Engine is unstable: The engine vibrates when it is working, which will be transmitted to the working parts of the trowel machine, causing abnormal overall vibration. This may be caused by reasons such as engine throttle failure and nozzle blockage. Check and reinstall the trowel and spatula: Carefully check the installation of the trowel and spatula before use, and ensure that the screws are tightened and the spatula is evenly arranged. If the spatula is found to be damaged or deformed, it should be replaced in time. Replace the bearing: When the bearing is suspected to be damaged, it is necessary to disassemble the relevant parts to check the bearing status. If the bearing is damaged, it should be replaced with a bearing of the same model as the original, and ensure that it is installed correctly, and add an appropriate amount of grease. Check the engine stability: Perform a comprehensive inspection of the engine, including the opening of the throttle, the injection of the nozzle, etc. Professional diagnostic tools can be used to detect the working parameters of the engine, and corresponding repairs and adjustments can be made according to the test results. Trowel wear: After long-term use, the blade of the trowel will wear and become less sharp, affecting the trowel effect. For example, when smoothing a concrete surface with a higher hardness, the trowel will wear out faster. Improper machine travel speed: If the travel speed of the ride-on trowel is too fast or too slow, the ideal smoothing effect cannot be achieved. If the speed is too fast, the trowel will act on each part for a short time and cannot smooth the surface; if the speed is too slow, it will affect work efficiency. Excessive unevenness of the concrete surface: If the unevenness of the concrete surface itself exceeds the processing range of the trowel, such as large protrusions or depressions, it is also difficult to obtain a good smoothing effect. Replace the trowel: Check the wear of the trowel regularly, and replace it with a new one in time when the trowel is worn to a certain extent. Generally speaking, the trowel needs to be replaced if the blade wears more than 2-3 mm. Adjust the machine travel speed: According to the state of the concrete and the requirements for smoothing, reasonably adjust the travel speed of the trowel. In the initial smoothing stage, you can slow down the speed appropriately to ensure that the trowel can fully act on the concrete surface; in the fine smoothing stage, you can speed up appropriately. Pre-treat the concrete surface: Before using the trowel, preliminarily treat the concrete surface, such as using a scraper or other tools to roughly flatten the surface so that the unevenness is within the effective working range of the trowel. Tire damage: Punctured, severely worn or insufficient tire pressure will affect the driving stability and normal driving of the trowel. At the construction site, sharp objects can easily puncture tires. Steering system failure: Damage or wear of steering system components such as steering shafts and knuckles will cause the trowel to turn inflexibly or lose control. For example, a loose connection at the steering shaft will cause inaccurate steering operations. Transmission system failure: Broken or loose transmission chains or belts, or problems with the gearbox will affect the power transmission of the trowel and cause abnormal driving. Check and repair tires: Regularly check the tire pressure and wear, and repair or replace tires in time if they are damaged. Keep the tire pressure within the specified range. Generally, the tire pressure of a riding trowel is about 2-3 atmospheres. Check and repair the steering system: Check the steering system, tighten loose parts, and replace worn parts. For example, if the steering knuckle is severely worn, it should be replaced with a new one, and the steering clearance should be adjusted. Check the transmission system: Check the tightness of the transmission chain or belt, and adjust or replace it if necessary. For problems with the gearbox, such as difficulty in shifting gears, abnormal noises, etc., professional maintenance personnel are required to inspect and repair.

    Quality control for ultra-large laser-leveled, wear-resistant concrete floors requires a comprehensive process encompassing "pre-construction prevention, in-construction control, and post-construction acceptance." Combining the technical characteristics (laser precision leveling and the synergistic effect of wear-resistant materials) with the challenges of ultra-large-scale construction (temperature cracking, flatness control, and interface bonding), a control system is established across five core dimensions: personnel, materials, equipment, process, and environment. This can be broken down into the following key steps:   Pre-construction preparation for ultra-large flooring directly impacts subsequent quality stability, focusing on addressing three key issues: "unified technical standards, adequate resource allocation, and proactive risk mitigation." Drawing Refinement and Technical Briefing: Based on the building's function (e.g., load and flatness requirements for factories and logistics warehouses must be clearly defined), floor compartment design should be refined (extra-large areas should be divided into 6m×6m or 8m×8m compartments to avoid thermal stress cracking). Key parameters should be clarified, including laser leveling accuracy (typically ±3mm/2m), wear-resistant material dosage (approximately 5-7kg/m2 for metallic aggregates, 3-5kg/m2 for non-metallic aggregates), and concrete strength grade (minimum C30, flexural strength ≥4.0MPa). Technical briefings should be conducted for all employees, with a focus on training laser operators, concrete vibrators, and wear-resistant material spreaders to ensure that all positions understand the key technical aspects of flatness control, wear-resistant layer bonding, and crack prevention. Risk Contingency Plan Development: To address potential issues that may arise during large-scale construction (e.g., insufficient initial setting time for concrete resulting in inability to apply the wear-resistant layer, laser equipment failure resulting in uneven flatness, and cracking due to high summer temperatures), develop a contingency plan: Confirm the initial setting time of concrete with the commercial concrete mixing plant in advance (adjusted to the temperature; ≥4 hours in summer, ≥6 hours in winter), and add a retarder if necessary. Keep one or two spare sets of core concrete laser leveling components (such as laser transmitters and receivers) to prevent interruptions to construction due to equipment failure. Prepare awnings and spray cooling equipment for summer construction, and thermal blankets and electric blankets for winter construction to maintain a temperature difference between the inside and outside of the concrete at ≤25°C. Materials are the core of floor quality. Three key materials, concrete, wear-resistant materials, and surface treatment agents, require full-process inspection: Material Type Key Control Points Inspection Standards Ready-mixed concrete 1. Mix Ratio: Crushed stone particle size 5-20mm (avoid large particles that affect smoothness), sand content 35%-40%; Slump test for each truck upon arrival. Compressive/flexural test blocks are retained according to specifications (one set per 100m³; less than 100m³ is counted as one set). 2. Slump: 120 ± 20mm (slump too large will cause sanding, too small will make vibration difficult); 3. Initial Setting Time: Adapt to the construction schedule (single-chamber construction requires leveling and wear-resistant layer application to be completed before initial setting). Wear-resistant material 1. Composition: Metallic aggregates (such as iron filings and corundum) must have a carbon content ≤ 0.2%, and non-metallic aggregates (such as quartz sand) must have a hardness ≥ Mohs 7; Sampling is randomly sent for inspection upon arrival to test compressive strength (≥60MPa) and abrasion resistance (wear loss ≤0.3g/cm²). 2. Moisture Content: ≤ 1% (avoid clumping that affects spreading uniformity); 3. Adhesion: No risk of delamination at the concrete interface. Interface treatment agent Used at the interface between the concrete base and the wear-resistant layer (if separate-chamber construction requires treatment of the interface between new and old concrete), high adhesion and crack resistance are required. Bond strength is also tested upon arrival (≥1.5MPa). Expired or clumped products are strictly prohibited.   The core equipment for laser-leveling wear-resistant flooring is the concrete laser leveling. Its accuracy directly determines the flatness of the floor, so key control measures are required: Equipment Calibration: 24 hours before construction, calibrate the concrete laser leveling blade, vibrator, and laser receiver using a standard calibration ruler (2m straightedge) to ensure the laser transmitter's leveling error is ≤0.1mm/m and the screed blade's flatness error is ≤0.5mm. Equipment Selection: For very large areas (single area ≥1000㎡), a "large concrete laser leveling" (working width ≥2.5m) should be used, combined with a small walk-behind concrete laser leveling for corners (within 300mm of the wall). Equipment Maintenance: Before construction daily, check the equipment's fuel, hydraulic oil, and vibrator motor. After work, clean the screed blade and laser head to prevent concrete residue from affecting subsequent use.   Large-scale floor construction requires a "divided-cell flow" approach. The connection between processes within each cell (concrete pouring → laser leveling → wear-resistant layer application → joint cutting and maintenance) is central to quality control, requiring on-site supervision of these five key processes. Separate compartment pouring: Strictly divide the construction area according to pre-designed compartment gaps, using the "skip compartment method" (with ≥48 hours between each compartment) to avoid temperature cracking caused by continuous pouring. The "slant layer method" is used during pouring, with each layer ≤300mm thick. The placement speed is matched to the laser leveling speed (approximately 10-15 m³/h). Vibration Control: After concrete placement, first use an inserted vibrator (vibration interval ≤500mm, vibration time 15-20 seconds, until no bubbles escape) to achieve compaction. Then, use a laser leveler to perform a simultaneous "vibration + leveling" operation (vibration frequency 3000-5000 times/minute) to ensure concrete density (rebound strength must meet the standard) while avoiding excessive vibration that can cause aggregate sinking and surface sanding. Benchmark Setting: The laser transmitter must be set up in a location away from the construction area and free from vibration interference (such as nearby fixed structures). Set the laser baseline according to the design elevation and recheck the baseline every two hours to prevent transmitter drift. Working Path: The concrete laser leveling uses a staggered back-and-forth method (first pass horizontally, second pass vertically). The screed height must be fine-tuned based on the concrete slump (higher slumps, lower slumps). Ensure the finished concrete surface is ≤3mm/2m flat. (Use a 2m ruler for immediate inspection, and correct any unsatisfactory areas immediately.) Corner Treatment: For areas beyond the concrete laser leveling's reach, such as walls and column bases, manual leveling is performed using a small handheld concrete laser leveling with an aluminum alloy screed to ensure consistent flatness across the entire surface. The timing and uniformity of spreading wear-resistant material directly impacts its bond with concrete. Spreading should be done in two stages, with strict timing controls. First Spreading: After the concrete is poured and leveled, wait until the surface moisture has evaporated to the point where no visible indentation is observed when pressed with a finger (approximately 1-2 hours before initial setting). Apply 60% of the total amount of material, evenly spreading using a "plum blossom" pattern (avoiding any accumulation). After spreading, use a grinder (with a circular disc) at low speed to embed the wear-resistant material into the concrete surface. Second Spreading: 30-60 minutes after the first grinding, when the surface of the wear-resistant material has initially set, spread the remaining 40% of the wear-resistant material. Use a grinder (with a different blade) at high speed until the surface is smooth and scratch-free. Control the grinding pressure to avoid thinning the wear-resistant layer; the thickness should be ≥ 3mm. Large-area floors are most susceptible to shrinkage cracks, requiring stress relief through slitting. Key control points: Joint cutting time: Start 24-48 hours after concrete pouring (adjusted to the temperature, within 24 hours in summer and within 48 hours in winter), when the concrete strength reaches 25%-30% of the design strength (rebound value approximately 20 MPa). Avoid premature joint edge cracking and delayed joint cutting, which can cause random cracking. Joint cutting parameters: Compartment joints should be "through joints" (depth ≥ 1/3 of the floor thickness; for example, for a 150mm thick floor, the joint depth should be ≥ 50mm). Longitudinal and transverse joint spacing should be designed based on the compartment design (6-8m), with a joint width of 5-8mm. Polyurethane sealant should be applied promptly after joint cutting to prevent rainwater from seeping into the base layer. Temporary contraction joints: If the area of ​​a single compartment is large (≥ 1000 m2), temporary contraction joints (one every 3-4m, 20-30mm deep) should be installed during pouring. These temporary contraction joints will be extended to through joints during subsequent joint cutting. Inadequate curing can lead to sanding and insufficient strength on the concrete surface. Therefore, a "covering + watering" curing method is necessary. Curing Time: Within 12 hours after finishing the wear-resistant layer, immediately cover with plastic film and geotextile (to prevent rapid evaporation). Curing period: ≥7 days (if using impermeable concrete, curing period: ≥14 days). Curing Frequency: Water 3-4 times daily (increase to 5-6 times in summer) to ensure the geotextile is constantly moist to prevent the concrete surface from drying out and cracking. During winter curing, cover with a thermal blanket and maintain an ambient temperature of ≥5°C (if temperatures fall below 5°C, winter construction measures, such as adding antifreeze, are required).   After completion of ultra-large floor construction, a comprehensive inspection is required in accordance with the "Concrete Structure Construction Quality Acceptance Code" (GB50204) and the "Technical Code for Wear-Resistant Concrete Floors" (JGJ/T 337), focusing on the three core indicators of flatness, wear resistance, and crack control. Appearance Inspection: A comprehensive inspection of the floor surface is required. The floor must be free of sanding, peeling, exposed surfaces, or scratches. The wear-resistant layer must be uniform in color with no significant color variations. Crack Inspection: A crack width gauge is used to inspect for cracks. "Non-through surface cracks" (width ≤ 0.2mm) are permitted. "Through cracks" or cracks with a width greater than 0.2mm are strictly prohibited. If excessive cracks are found, the cracked area must be chiseled out (extending 100mm), and the concrete and wear-resistant layer must be re-poured. After rectification, re-inspection will be conducted. Test Items Testing Method Qualification Criteria Smoothness Using a 2m straightedge and a feeler gauge, test at five points (evenly distributed) per 100 m2, recording the maximum deviation. Deviation at any point ≤ 3mm/2m, and a pass rate ≥ 95% Abrasion Resistance Using the Taber Abrasion Test, sample a representative area (100 mm × 100 mm) and weigh it after 500 cycles of abrasion. Abrasion loss ≤ 0.3g/cm² (metal aggregate wear layer), ≤ 0.5g/cm² (non-metal aggregate wear layer) Compressive Strength Concrete test blocks were collected according to specifications (one per 1000 m2) and tested after 28 days of standard curing. Concrete compressive strength ≥ design value (e.g., C30 ≥ 30MPa), flexural strength ≥ 4.0MPa Adhesive Strength Using the Pull-Out Test, samples (50 mm diameter) were taken at the interface between the wear-resistant layer and concrete, and the pull-out strength was measured. Bond strength ≥ 1.0MPa, with failure mode being "cohesive failure of concrete" (not interfacial debonding) After acceptance, finished product protection measures must be implemented to prevent subsequent construction (such as equipment installation and pipeline laying) from damaging the floor: Do not allow heavy equipment (such as forklifts or cranes) to directly roll over the floor (a steel plate is required). Avoid sharp objects (such as rebar or steel pipes) from striking the floor surface. If holes need to be drilled in the floor (e.g., to install a floor drain), use specialized drilling equipment. Manual chiseling is strictly prohibited to prevent cracking of the surrounding concrete.   Large-scale floor construction is susceptible to extreme environmental impacts, such as high temperatures, low temperatures, and strong winds. Targeted adjustments to control measures are required: During high-temperature construction (temperature ≥30°C): Adjust the concrete pouring time to the morning and evening (avoid the high-temperature period of 10:00 AM to 4:00 PM); Pour the concrete immediately after arrival to avoid prolonged standing (this shortens the initial setting time); Immediately cover the wear-resistant layer after finishing to maintain moisture, and increase the watering frequency (once every hour). Low-temperature construction (temperature ≤ 5°C): Add antifreeze to the concrete (dosage according to the instructions, strictly prohibit exceeding the standard) to ensure the concrete enters the mold at a temperature ≥ 10°C. After construction, cover with a thermal blanket and electric heating blanket to maintain an ambient temperature ≥ 5°C. Extend the curing period (≥ 10 days) and remove the insulation only after the concrete strength reaches 70%. In strong winds (wind speed ≥ 5m/s): Suspend the application of the wear-resistant layer (to prevent the material from being blown away by the wind); Immediately cover the concrete with plastic sheeting after pouring (to prevent rapid evaporation of surface moisture and resulting in sanding).   Through the above full-process and multi-dimensional quality control, the three core quality problems of "poor flatness, peeling of the wear-resistant layer, and shrinkage cracks" of ultra-large-area laser-leveled wear-resistant concrete floors can be effectively solved, and ultimately the floor's "high strength, high wear resistance, and high flatness" requirements can be achieved.   Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.
