Common troubleshooting of concrete laser leveling machine

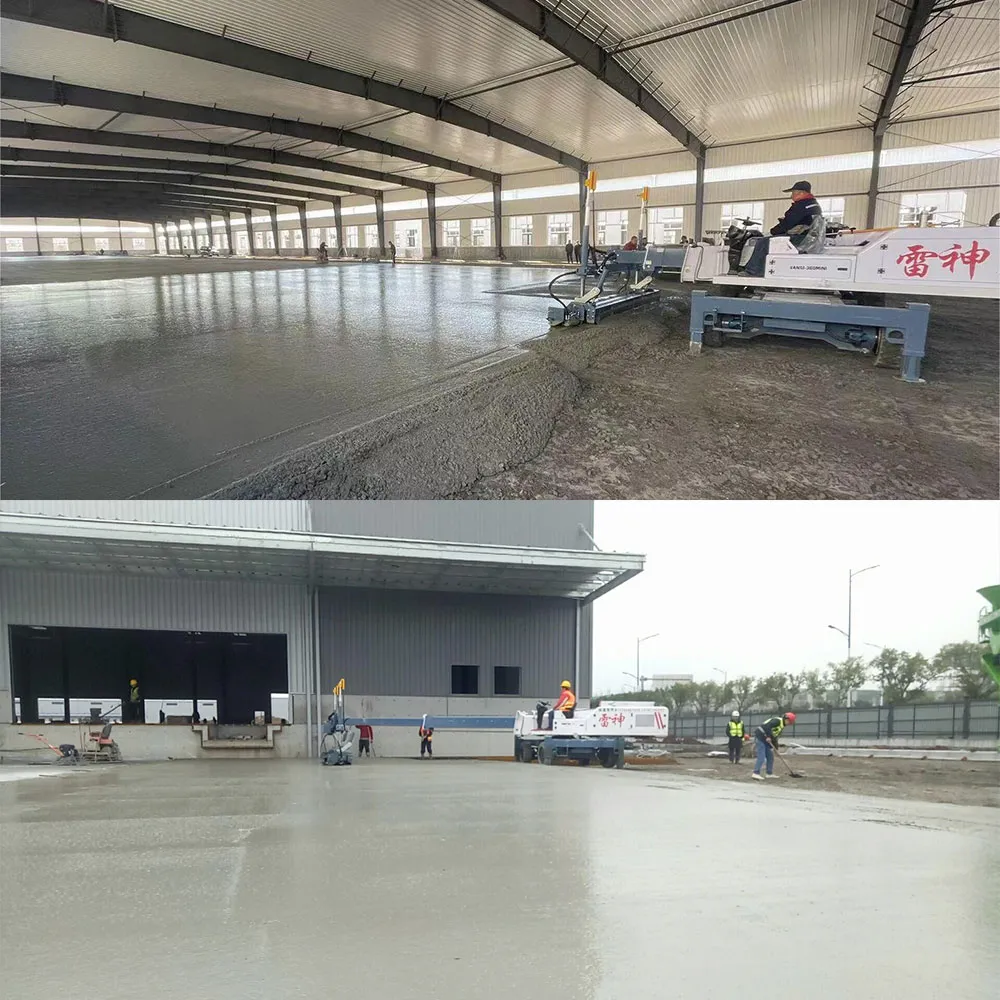

With the increasing number of warehouse and large production workshop construction projects, the existing conventional construction technology can no longer meet their needs for the flatness and quality of concrete floors. In this situation, laser leveling technology has been successfully introduced. The use of laser leveling machines for construction can not only effectively reduce the occurrence of ground cracking, damage, sanding, etc., but also has a high level of construction automation, fast construction speed, and low construction cost. The economic benefits brought by the cast-in-place floor construction of industrial plants are very considerable. The following is a brief introduction to the specific application of laser leveling machines in the construction of cast-in-place floor slabs of industrial plants. —- Working principle of laser leveling machine Laser leveling consists of four parts: laser transmitter, data processing system, laser receiver, and leveling power system. The laser transmitter rotates continuously at a speed of 600r/min to form a horizontal laser plane in space. After receiving the laser signal, the laser receiver on the laser leveler transmits the data to the data processing system, and the data processing system then sends a signal to the electric push rod on the laser leveler. The electric push rod executes the command at a speed of 10 times/s, so that the fabric spiral, scraper, and vibrator on the laser leveler can adjust the elevation in real time to ensure the levelness of the floor. —-Technical features of laser leveler ❶ High flatness quality: The flatness of the floor can reach a deviation of less than 2mm within a range of 2m. The floor elevation is automatically controlled by the laser and data processing system, and the leveling system is adjusted in real time through the bidirectional electric push rod to ensure accurate leveling. ❷ Good integrity of the floor: Due to t he independent arrangement of the laser transmitter, large-area casting can be achieved during the construction of the main frame cast-in-place floor slab. Compared with the traditional method, the construction joints are greatly reduced, making the cast-in-place floor structure more integrated. ❸ Good concrete density: Since the laser leveling machine itself has a vibration system with a vibration frequency of 3000 times/min, compared with the traditional inserted vibrator, the density of the floor structure plate can be increased by more than 20%, thereby avoiding the risk of floor cracking caused by uneven vibration. ❹ Significantly improved work efficiency: The laser leveling head scraper, fabric spiral, vibrator and leveling beam of the laser leveling machine integrate the leveling, leveling and vibration work in one go. Compared with traditional construction methods, about 300m of leveling work can be completed per hour, and an average of 3000m can be completed per day, reducing labor by more than 30%, and the work efficiency can be increased by about 3 times. —-Cast-in-place floor laser leveling construction technology ❶ Construction preparation: First divide the construction section, and after the template support and steel bars of the pouring construction section are installed and accepted, install and debug the laser leveling machine equipment. The laser transmitter is set up on a special tripod to ensure that the laser emission is not blocked so that the construction area can receive the laser smoothly. The laser transmitter can be set up independently of the main body of the frame to be cast to avoid accidental collision during construction. According to the original leveling point, the fixed reference leveling point on the floor is measured and imported into the laser leveling machine to make the laser transmitter, leveling point, and laser leveling machine correspond. ❷ Casting concrete: Use pumped commercial concrete, and the slump is controlled between 160~180mm. According to the workshop area of ​​each floor of the factory building, it is divided into 8 construction sections for segmented construction. According to the divided construction sections, the columns, beams, and slabs are cast in order from one end to the other. After the column and beam concrete are put into the mold, they are vibrated with an inserted vibrator. The concrete of the casting slab needs to be about 2cm higher than the template to facilitate the laser leveling machine to scrape it flat, and the material reduction or supplementation work can be carried out as needed. To prevent cold joints, the concrete transportation should be as continuous and uniform as possible, and the pauses and intervals in the middle should be minimized. During pouring, the piles of concrete need to be roughly flattened manually, and then the laser leveling machine controls the electric push rod according to the signal of the laser transmitter, and adjusts the horizontal height of the leveling head in real time to ensure that its height is always consistent with the set level point. At the same time, two workers are equipped to level and fill materials at the leveling head to ensure the flatness of the floor, and complete the vibration and compaction work while leveling. ❸ Slurry lifting and finishing: After laser leveling, when the concrete is about 3mm deep when people stand on the concrete surface before and after the initial setting, a disc trowel is used to lift the slurry. The speed of the mechanical trowel should be adjusted appropriately according to the hardening degree of the concrete, and the operation should be carried out in a criss-cross manner. Switch to a blade trowel for polishing, and use manual troweling for corners, column corners and other detailed parts that cannot be polished by the trowel. ❹ Maintenance and finished product protection: After the concrete is finished, water is sprinkled and covered with plastic film to prevent water evaporation and maintain a moist maintenance state. The curing time shall not be less than 7 days, and people are prohibited from stepping on the concrete before the concrete strength reaches 1.2MPa. The above is a brief discussion of the working principle and technical characteristics of the laser leveling machine, as well as a systematic summary of the specific process flow of the lightweight leveling machine used in the construction of cast-in-place floor slabs in industrial plants. By comparing multiple engineering practices, it is found that the effect and economic benefits of using a laser leveling machine for construction are more significant than those of manual construction.

    The acceptance of concrete laser leveling machines is a core step in verifying the reliability of equipment performance. This requires multi-dimensional verification through systematic testing, data verification, and operating simulation to ensure that the equipment meets design standards and construction requirements in key performance indicators such as accuracy, stability, durability, and safety. The reliability evaluation process can be broken down into the following five core acceptance dimensions, each with its own specific testing methods and reliability assessment criteria: The core value of a laser leveler lies in its "high-precision leveling." This dimension's acceptance directly determines whether the equipment can meet construction quality requirements and is the primary verification point for reliability. Acceptance requires a two-way verification of both "laser positioning accuracy" and "mechanical execution accuracy." The specific methods are as follows: Acceptance Project Test Method Reliability judgment criteria Risk of failure (if not met) Laser transmitter accuracy 1. Place the laser transmitter on a horizontal reference point and use a precision level (accuracy ≥ 0.1mm) to calibrate the transmitter's levelness. Within the full operating radius, the laser receiving height deviation is ≤±0.5mm; the deviation fluctuation during rotation is ≤0.3mm, and there is no "break" or "jump" phenomenon. Unstable laser signals lead to deviations in the leveling height, resulting in ground height differences and substandard flatness, necessitating rework. 2. Place a laser receiver at 10m/20m/30m (maximum operating radius of the coverage device) and record the receiving height deviation. 3. Rotate the transmitter 360° and record the deviation value every 45°. Leveling mechanism execution accuracy 1. Simulate standard construction conditions (concrete slump 120-180mm) and cast a 3m×3m test block; The flatness deviation of the 2m straightedge is ≤3mm/2m; the elevation deviation is ≤±2mm; the fluctuation of the 3 test data is ≤1mm, with no obvious dispersion. Poor mechanical execution accuracy results in excessive ground flatness, affecting the subsequent construction of the wear-resistant layer or the use of the ground (such as storage and workshop floors). 2. After the concrete has initially set, use a 2m straightedge to check the surface flatness (measure one point every 1m, for a total of 9 points) and use a laser leveler to check the overall elevation deviation; 3. Repeat the test three times and compare the data consistency each time. Slope control accuracy 1. Set the slope mode of the laser transmitter (e.g. 2%, 5% bidirectional slope); The deviation between the actual slope and the set slope is ≤±0.1%; the slope of the entire working surface is uniform, with no local "steep drops/sharp rises". Failure of slope control results in poor ground drainage (such as roofs and outdoor areas), causing water accumulation and leakage problems. 2. Measure one point every 2 meters along the diagonal direction of the test block and calculate the deviation between the actual slope and the set slope; 3. Test the slope accuracy in both horizontal and vertical directions. The power system (engine/motor) and drive system (travel and leveling roller drive) are the "power source" for continuous operation of the equipment. Their stability directly determines whether the equipment can cope with long-term, high-load construction and is the foundation of reliability. Acceptance requires a combination of "static parameter verification" and "dynamic operating condition testing": Parameter verification: Check the engine/motor model, rated power, speed (e.g., diesel engine rated speed 2200-2800 rpm), output torque and other parameters to ensure they are consistent with the equipment manual to avoid "downgrading" and resulting in insufficient power. Dynamic testing: Run the machine at no load for 30 minutes, monitoring the power system speed fluctuation (≤±50r/min), oil temperature (≤85°C), and noise (≤95dB). No abnormal vibration or noise should be observed. Run at full load (the leveling head is pressed into the concrete to a depth of 50-80mm) for 1 hour, observe whether the power system experiences any "speed drop" or "stall", and verify the overload capacity (run at 120% of the rated load for 10 minutes without any fault). Travel reliability: Test forward/reverse/turning functions on a concrete surface (before initial setting). Ensure the travel speed (adjustable from 0-15 m/min) is smooth, the turning radius complies with the specifications (e.g., minimum turning radius ≤ 2 m), and the drive wheels do not slip and the bearings do not overheat (≤ 70°C) after one hour of continuous travel. Leveling auger drive: Test the forward and reverse rotation of the leveling auger and the speed adjustment (0-60r/min). Observe whether the auger rotates evenly, without "stuck" or "eccentric shaking", and whether the auger rotates freely after shutdown (to verify the reliability of the brake). Laser leveling machines are required to operate for long periods of time under bumpy and high-load conditions. The strength and durability of their structural components (frame, leveling rollers, laser bracket) directly affect the life of the equipment. Therefore, acceptance must be verified through "static strength verification" and "dynamic fatigue testing": Size and material: Use calipers and spectrometers to inspect key structural parts (such as the wall thickness of the leveling roller ≥12mm, the cross-sectional size of the frame main beam ≥150×80mm). The material must be Q355B grade steel or above, and the welding points must be free of pores and cracks (using penetrant testing). Load-bearing capacity: Apply a load 1.5 times the rated pressure to both ends of the leveling roller (e.g., 750 kg for a rated load of 500 kg) for 30 minutes. Measure the deformation of the structural components (frame deflection ≤ 2 mm/m, leveling roller bending ≤ 1 mm). No permanent deformation should be observed after unloading. Simulate bumpy road conditions at a construction site (set a 50mm high bump and a 10° slope). Drive the machine continuously at a medium speed (8m/min) for 2 hours with the leveling function enabled. After the test, check the tightness of the structural connection parts (bolts, pins) (torque attenuation ≤ 10%), whether the welding points are cracked, and whether the laser bracket is loose (laser receiver position deviation ≤ 0.3mm) to verify the structural fatigue resistance. Modern laser levelers rely on electronic control systems (PLC, touch screen, sensors) for automated operation. The stability of the control system directly affects the safety and efficiency of equipment operation. Acceptance verification focuses on "operational response" and "fault handling capabilities": Human-computer interaction: Test the touch screen (or operating handle) command response speed (e.g., slope adjustment, speed switching response time ≤ 0.5s), with no "delay" or "misoperation", and the display interface data (laser height, travel speed, oil temperature) is updated in real time (refresh rate ≥ 1 time/second). Automatic leveling function: Artificially create a height deviation of the laser receiver (e.g., raise it by 5mm) and observe whether the equipment can automatically adjust the leveling roller height to the set elevation within 3 seconds. Repeat 10 times with an adjustment accuracy deviation of ≤0.5mm, with no over-adjustment or under-adjustment. Simulate common faults (such as laser signal interruption, low engine oil pressure, and drive motor overload) to verify that the control system can alarm within 3 seconds (audio-visual alarm + on-screen fault code display), and that the alarm information is consistent with the actual fault; Test the fault protection function: for example, when the laser signal is interrupted, whether the equipment automatically shuts down (to avoid blind operation); when the oil pressure is too low, whether the power output is automatically reduced and an alarm is issued to prevent engine damage. Equipment reliability not only means "being able to work", but also "working safely". The acceptance of safety protection measures is the bottom line for ensuring the safety of operators and equipment. It must comply with the "Technical Regulations for Safety in the Use of Construction Machinery" (JGJ33-2012): Safety features Acceptance requirements Reliability judgment criteria Emergency stop function Test the operating handle and the emergency stop button on the side of the machine. After pressing it, the device must cut off power within 1 second (engine shutdown, motor power off), and must be manually reset after restarting. Emergency shutdown response time ≤ 1s, no "failure" or "false triggering". Protective devices 1. There must be a guardrail (height ≥ 1.2m) on the outside of the leveling roller to prevent people from contacting it; The protective device is firm (withstands 500N force without deformation) and is not missing or damaged. 2. The engine exhaust port must be equipped with a heat shield with a surface temperature of ≤60°C; 3. Wires and hydraulic pipes must have protective covers and no exposed parts. Stability Park the equipment on a 15° slope (empty or fully loaded) and observe whether it slides or overturns. Test the supporting strength of the outriggers (if any) to ensure they do not sink after loading. There is no sliding when parking on the slope, and the horizontal deviation of the fuselage after support by the outriggers is ≤0.5°. The acceptance of concrete laser levelings essentially involves transforming the abstract concept of "reliability" into measurable, concrete data (such as accuracy deviation, fault response time, and structural deformation) through quantitative performance testing and simulated operating conditions. Only when these five dimensions meet design standards and the test data demonstrates consistency (no significant fluctuations across multiple tests) and redundancy (such as dynamic overload capacity and structural load margin) can the equipment be proven to deliver reliable performance with long-term stable operation, low failure rates, and high fault tolerance in actual construction, thus preventing quality defects and project delays caused by equipment issues.

When renting a concrete laser leveling, you need to pay attention to the following points: 1. Choose the right leasing method There are many ways to rent concrete laser leveling machines, including long-term rental, short-term rental, hourly rental, etc. Different leasing methods correspond to different needs and budgets, and you need to choose according to the actual situation. Long-term leasing usually requires higher rent, but can be used for a longer period of time, which is suitable for construction companies that need to use the leveling machine for a long time; short-term leasing and hourly leasing are suitable for situations that require short-term use of the leveling machine, such as a certain specific engineering projects. 2. Choose a regular lessor When choosing a lessor, you need to choose a formal and qualified lessor to ensure that the leased concrete laser leveling machine has reliable quality and guaranteed service. You can find regular leasing companies through online searches, friend recommendations, etc. 3. Understand the rental fees and deposit status Before signing a rental contract, you need to understand the specific rental fees and deposits. Rental costs include rental and transportation costs, etc. The specific price needs to be negotiated based on the actual situation. The deposit is to protect the rights and interests of both parties to the lease. After the contract expires, if the leveler is not damaged or causes no other losses, the lessor needs to return the deposit to the lessee. 4. Check the quality of the leveling machine Before taking delivery of a rental concrete laser leveling, the quality of the leveling needs to be inspected. The inspection content includes the appearance of the leveler, whether the spare parts are complete, and whether the performance is normal, etc. If there are any problems, you need to contact the lessor promptly and request replacement or repair. 5. Sign a lease contract When signing a lease contract, you need to read the terms of the contract carefully to clarify the rights and obligations of both parties. The contract content should include the lease term, rent and payment method, deposit and return method, equipment maintenance and repair responsibilities, etc. In addition, you also need to understand important terms such as liability for breach of contract and methods of resolving disputes. 6. Precautions during use During the rental period, you need to pay attention to the following points when using the concrete laser leveling: Comply with the operating specifications and precautions in the instruction manual, and use and maintain the leveling machine correctly; Avoid the leveler working in harsh environments, such as high temperature, low temperature, humidity, etc.; If any problems or malfunctions are found during use, stop the machine immediately and contact the lessor; Comply with safety regulations at the construction site to ensure the safety of construction workers; After use, the surface of the leveler should be cleaned in time to avoid affecting the next use. 7. Pay rent and maintenance fees on time In the process of using a concrete laser leveling machine, rent and maintenance fees need to be paid on time. The rent is the cost of leasing the leveling machine and needs to be paid according to the time and method agreed in the contract; the maintenance fee is to ensure the normal use and maintenance of the leveling machine and needs to be maintained and maintained in accordance with the requirements in the instruction manual. 8. Pay attention to the return of equipment At the end of the lease period, the concrete laser leveling needs to be returned to the lessor. Please note the following points when returning: Make sure the surface of the leveler is clean and tidy with no obvious damage; Make sure the spare parts of the leveling machine are intact; Make sure the leveler is functioning properly; Contact the lessor promptly and go through the return procedures. To sum up, when renting a concrete laser leveling, you need to pay attention to choosing the appropriate rental method, choosing a regular lessor, understanding the rental fees and deposits, checking the quality of the leveling, signing a rental contract, and paying attention to the precautions during use. Pay rent and maintenance fees on time and pay attention to the return of equipment. Only by carefully understanding and complying with the above precautions can we better use the concrete laser leveler and improve construction efficiency and quality.
