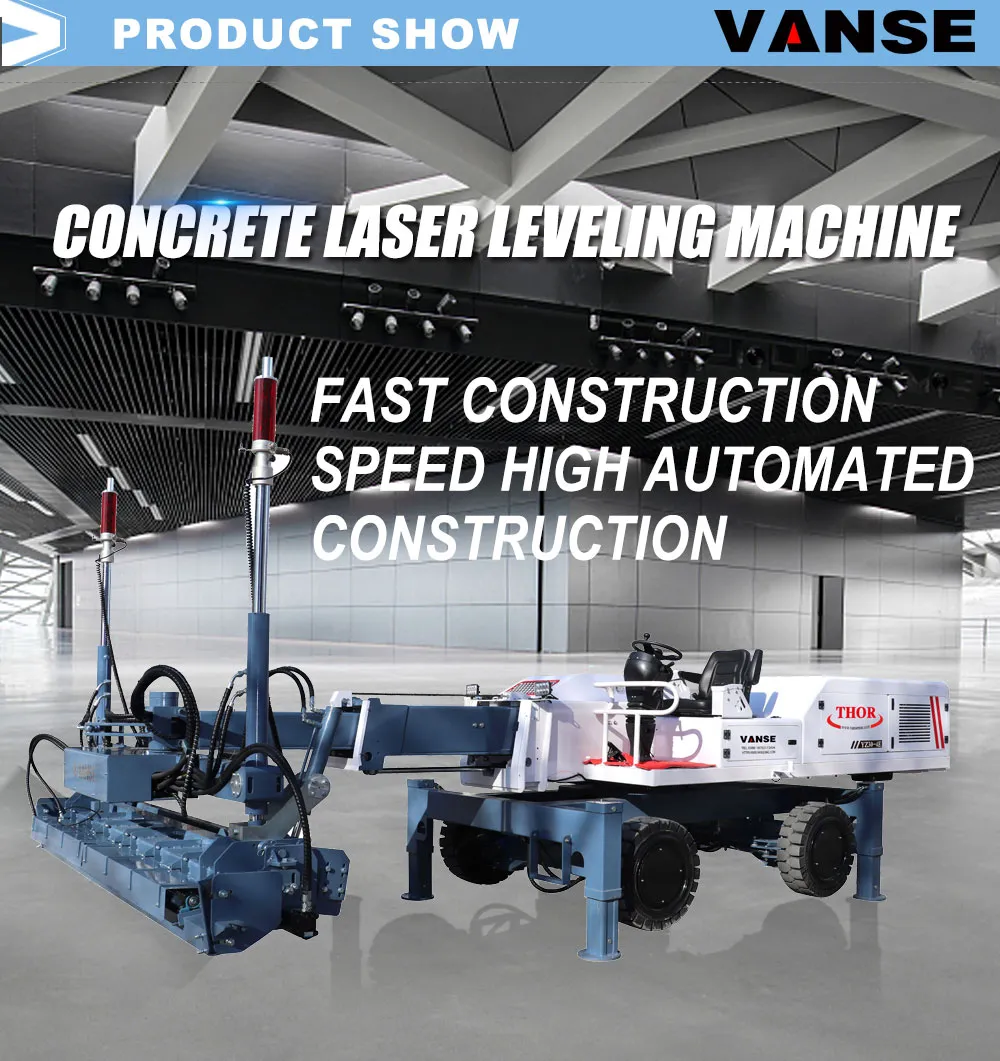

The development history & current situation of concrete laser leveling machine

    The construction quality of a power trowel (also known as a finishing machine) is 70% about leveling and 30% about operation. The flatness of the chassis and the blade is the key to determining whether the concrete surface ultimately achieves a mirror-like smoothness, without ripples or flaws. The following are detailed technical tips for leveling the base of a power trowel and calibrating the consistency of the blade height, combining the experience of experienced masters with scientific methods. One benchmark: Take the chassis as the sole benchmark. All blade adjustments must be based on a already leveled chassis. Three unifications: uniform blade height, uniform inclination Angle, and uniform wear degree. The chassis serves as the installation platform for the blade. If the chassis itself is uneven, the consistency of the blade is out of the question. First choice: A large and flat platform (such as a calibrated granite platform, a thick tempered glass tabletop or a new thick steel plate). Second choice: On a very flat ground, use a known uniform thickness pad (such as a feeler gauge). Essential items: feeler gauge, tape measure, marker pen. Cleaning and preparation Thoroughly clean the chassis and remove all cement slurry and hard lumps. Check the chassis for any obvious deformation caused by the collision. If there is severe deformation, it needs to be corrected or replaced first. Place the power trowel on the platform and ensure that the contact surface between the chassis and the platform is clean and free of debris. Preliminary "Four-point measurement Method" Consider the chassis as a clock face and measure the gap between the edge of the chassis and the surface of the platform at the four positions of 12 o 'clock, 3 o 'clock, 6 o 'clock and 9 o 'clock. Use a feeler gauge to measure and record the gap values at four points. Preliminary judgment: If the gap values at the four points differ by more than 1-2 millimeters, it indicates that the chassis is uneven and needs to be adjusted. The chassis of most power trowels is connected to the main unit through three or four adjustable pull rods. Identify the high and low points: Based on the measurement data, determine which corner has the smallest clearance (the highest point of the chassis) and which has the largest clearance (the lowest point of the chassis). To raise a certain Angle, loosen (counterclockwise) the lock nut of the pull rod corresponding to that Angle, then shorten the length of the pull rod (turn the pull rod body clockwise), and finally tighten the lock nut. To lower a certain Angle, loosen the lock nut, then extend the length of the pull rod (turn it counterclockwise), and finally lock it. The mnemonic: "High pines are short, low pines are long." (For the angles that need to be adjusted After each adjustment, gently rotate the chassis (to prevent scratching the platform) and conduct the four-point measurement again. Repeat steps 3 and 4 until the difference in gap values among the four points is controlled within 1 millimeter. At this point, it can be considered that the chassis has been leveled. The calibration of the blade can only be carried out on the basis of ensuring that the chassis is absolutely flat. A ruler (preferably a high-precision steel ruler) or a dedicated blade height gauge. Tape measure, marker pen, wrench. Installation and cleaning Install a set of blades of consistent newness and oldness onto the blade seat. It is strictly prohibited to mix new and old blades! Make sure that all the blade fixing bolts and blade seats are clean, the threads are undamaged and can be tightened in place. Place the power trowel with the chassis adjusted on a flat ground. Place a fixed reference point (such as a thin gasket or directly using the joints of floor tiles) on the ground beneath the chassis and within the rotation trajectory of the blade. Stand a ruler vertically beside the reference point and measure the distance from one of the knife tips to the ground, recording it as the reference height H. It is extremely important: Manually and slowly rotate the base of the trotter so that the same position of the next blade (for example, the outermost end of both blades) rotates directly above the reference point. Measure the distance from the tip of the knife to the ground again with a ruler. Compare it with the reference height H and record the difference. For example: Blade 1 is H, blade 2 is H-1.5mm, and Blade 3 is H+1.0mm. Measure all the blades in sequence. The height of the blade is adjusted by the regulating bolt on the blade seat to change its inclination Angle. Adjustment principle If the measured value of a certain blade is low, it needs to be raised. The method is: tighten the adjusting bolt below the blade seat, or loosen the adjusting bolt above to lift the leading edge of the blade (the side close to the rotation direction). If the measured value of a certain blade is too high, it needs to be reduced. The method is: Loosen the adjusting bolt below the blade seat or tighten the adjusting bolt above it to lower the leading edge of the blade. Mnemonic: "High tight, low loose, the leading edge as the standard." (For the leading edge of the blade that needs to be adjusted After adjusting each blade, it is necessary to rotate and measure once again, as adjusting one blade may slightly affect the height of adjacent blades. Repeat steps 3 and 4 until the difference between the measured height of all blades at the reference point and the reference height H is controlled within ±1 millimeter. Final inspection: Rotate the chassis quickly and listen to the sound with your ears. When the highly uniform blades are idling, the wind sound is a uniform "buzz". Inconsistent ones will have a periodic noise of "puff puff". The sequence is crucial: the chassis must be leveled first, and then the blades calibrated. Reversing the order is in vain. Tools are the guarantee: Having an absolutely flat calibration platform is half the battle. Data-driven operation: Trust feeler gauges and rulers, not rely on the naked eye. Each adjustment should be measured and recorded. Complete set replacement: The blades must be replaced as a complete set to maintain the same wear condition. Regular inspection: A quick inspection should be carried out before starting work every day and after replacing the blade. A full set of calibration should be carried out every 50 to 100 hours of operation or after a collision. Safety first: All operations must be carried out when the machine is completely powered off and the engine is turned off. Through the above strict and meticulous process, your power trowel machine will be in the best working condition, capable of easily creating a mirror-like smooth and high-quality concrete surface, effectively avoiding problems such as ripples, scratches and excessive cutting, thereby enhancing construction efficiency and professional image.   Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.

    Choosing the right blade is about matching the abrasiveness and toughness of the concrete slab as it cures. Using the wrong blade can either "burn" the floor (black marks) or wear out your equipment in minutes. Here is the breakdown of blade types and when to swap them: Strictly speaking, these are large steel disks that clip onto the blades, but they are the first "type" you'll use. Concrete State: Wet/Plastic. You can leave a 1/4" to 1/2" footprint. Hardness Profile: Soft/Fresh. Use Case: To break down high spots and fill low spots left by the laser leveling. Pans provide the highest Floor Flatness (FF) because they have a massive surface area. The workhorse of the industry. Concrete State: Damp to Firm. Footprint is roughly 1/8". Hardness Profile: Standard setting concrete. Use Case: These are used as the concrete begins to harden. They are stiff enough to apply pressure but flexible enough to "flick" the cream back into the pores. The Catch: If the concrete is very "hard" or has high silica content, these blades will wear down quickly and can leave dark burnish marks if you aren't careful. The "Insurance Policy" for colored or decorative concrete. Concrete State: Firm to Hard. Hardness Profile: High-performance mixes or light-colored slabs. Use Case: If you are working on a white or light-gray floor where burn marks (black streaks from steel friction) would be a disaster. Plastic blades give a smooth finish without the metallic discoloration. A hybrid between a float blade and a finish blade. Concrete State: Medium-Firm. Hardness Profile: Versatile. Use Case: Designed for operators who don't want to swap blades mid-job. One side is wide (for floating) and the other is pitched for finishing. They are great for small-to-medium residential jobs but usually aren't precise enough for ultra-flat industrial floors. Concrete Hardness / Type Recommended Blade Primary Benefit Fresh / Soft Float Pans Maximum flatness; high "cream" Standard / Mid-Day Carbon Steel Finish High durability; classic shine Ultra-Hard / Fast-Set Blue Steel Blades Extra flexibility; prevents "chatter" Light Colored / Dyed Plastic (Poly) Blades Prevents black burnish streaks Epoxy / Specialty Stainless Steel Prevents rust contamination If you are dealing with High-Early strength concrete (which gets hard very fast), look for Blue Steel blades. Blue Steel is thinner and more flexible than standard gold or silver steel. This flexibility allows the blade to "give" a little when it hits a hard aggregate stone, preventing the machine from "chattering" or bouncing, which is common on hard-set slabs.   Would you like me to explain how to tell if your blades are "spent" and actually damaging your floor flatness? Contact us NOW   Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.

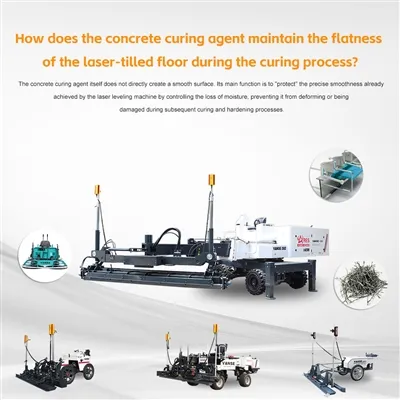

    The concrete curing agent itself does not directly create a smooth surface. Its main function is to "protect" the precise smoothness already achieved by the laser leveling machine by controlling the loss of moisture, preventing it from deforming or being damaged during subsequent curing and hardening processes. The laser leveling machine lays a highly precise horizontal foundation for the ground. The curing agent is like an invisible "shield" that ensures this foundation is not damaged by factors such as contraction and warping. Its specific mechanism of action mainly manifests in the following two aspects: This is the most crucial approach for the protective flatness of the sealant. During the hardening process of concrete, if the moisture evaporates too quickly, it will generate huge internal stress, leading to two serious consequences that severely affect the flatness: Reducing shrinkage cracks: When the pore water inside the concrete evaporates to form a crescent surface, its surface tension will exert a pull on the pore walls, causing the concrete to shrink. If the shrinkage is not uniform, cracks will form, damaging the integrity of the floor. The sealant (especially the shrinkage-reducing type) can effectively reduce the surface tension of the pores, thereby reducing the drying shrinkage by 80% (28 days) to 50% (1 year or longer), eliminating the destructive force caused by shrinkage at its source. Preventing board warping: When the drying speeds of the upper and lower surfaces of the concrete slab are inconsistent (such as the upper surface drying faster and the bottom surface drying slower), warping occurs, that is, the edges or corners of the slab rise upwards. This is the number one killer of flatness. The moisture-retaining film formed by the sealant ensures that the slab surface is uniformly hydrated, minimizing this deformation caused by the humidity gradient. It has been reported that using the appropriate curing product can increase the spacing of the joint (the gap reserved to cope with shrinkage) and achieve a smoother and more durable floor. Some advanced curing agents, especially those that can be used during the finishing process, can also assist in achieving a smoother surface by optimizing the construction: Extended operation time: In hot or windy conditions, the concrete surface tends to harden too quickly, resulting in incomplete finishing and leaving knife marks or waves. Curing agents can slow down the evaporation of surface moisture, providing construction workers with a longer operation window, allowing them to make the floor smoother with more ease. Reduced finishing damage: High-quality curing agents can act as a lubricant, reducing the dragging force of the trowel on the concrete surface. This helps to reduce parallel micro-cracks beneath the surface and enables more precise seam cutting, preventing damage to the surface's smoothness due to improper finishing. This issue touches upon a crucial point. Based on your question, you may have come across various types of products, and they do have differences: Product type Main mechanism of action Contribution to flatness Traditional/membrane-forming curing agent Form a physical film on the surface of the concrete, locking in moisture. Passive protection: Through moisturization, it prevents shrinkage and cracking caused by excessive water loss, thereby maintaining the existing flatness. Reactive/permeation-type curing agent Penetrate into the concrete interior, react with the cement hydration products, fill the capillary pores, and play a role in densification and assisting in hydration. Active enhancement: In addition to moisturization, it can directly reduce micro-cracks and act as a finishing aid to improve construction quality, thus achieving a more excellent flatness effect. Retarding agent Added internally to the concrete, it reduces the surface tension of pore water at its source, significantly reducing shrinkage during drying. Root cause control: This is the most fundamental solution. By minimizing the contraction stress to the lowest level, it completely prevents flatness problems caused by contraction, allowing for a larger joint spacing. In summary, the concrete curing agent achieves the maximum reduction of volume changes and stress during the hardening process of concrete through both moisture-retaining curing and chemical shrinkage. This ensures that the high-precision results of laser leveling can be perfectly "locked" and preserved, ultimately resulting in a long-lasting, flat, and durable high-quality floor. Does your project have specific numerical requirements for the floor's flatness (such as FF/FL grades)? Also, is the floor planned to undergo sealing curing or polishing treatment? This will directly affect the selection of the curing agent. Some curing agents have better compatibility with subsequent coatings, while others are specifically designed for polishing systems. Please provide these details so that I can confirm if the current choice is the most suitable.  Contact us NOW   Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.
