    This is a detailed plan on how to establish and share the "Common Fault Troubleshooting Manual for concrete laser leveling". It not only contains the core content framework of the manual, but also provides a full-process approach for establishing, maintaining and sharing this knowledge system. Concrete laser leveling machines are core equipment in modern floor construction, and their operational status directly affects the construction efficiency and floor quality. The establishment of a standardized troubleshooting manual aims to: Enhance efficiency: Quickly locate and resolve faults to minimize downtime. Cost reduction: Avoid major repairs due to minor malfunctions and reduce reliance on senior technicians. Unified standards: Provide a unified troubleshooting process and solutions for both new and experienced operators as well as mechanics to reduce operational errors. Knowledge inheritance: Transform the experience of master craftsmen into replicable and shareable organizational assets. Ensure safety: Standardize operations to prevent safety accidents caused by improper maintenance. (1) Core Content Framework of the manual The manual should adopt a clear, concise and easy-to-query structure. The suggested list is as follows: Cover Equipment name and model Manual version number, formulation/revision date Establish departments/personnel Part One: Safety First General Safety Regulations: All maintenance and inspection work must be carried out after power failure and pressure relief. Personal protective equipment (PPE) requirements: safety helmets, protective glasses, gloves, steel-toed shoes, etc. Safety checklist before operation: such as checking the surrounding environment of the equipment, the effectiveness of the emergency stop button, etc. Part Two: Introduction to Equipment Foundation and Working Principle Diagram of the main components of the entire machine (chassis, scraper, vibrator, laser receiver, hydraulic system, control system, etc.). A brief description of the working principle of the laser elevation control system. A brief description of the principle of hydraulic transmission. Part Three: Quick Troubleshooting Table for Common Faults (Core Part) It is recommended to use a table format, which is clear at a glance. Fault phenomenon Possible reasons Troubleshooting steps Solution Risk Warning/Remarks 1. The leveling accuracy is inaccurate The elevation remains persistently high or low 1. The elevation setting of the laser emitter is incorrect 1. Recheck the elevation of the laser emitter 1. Reset the laser elevation Before calibration, ensure that the ground is stable and the laser signal is unobstructed 2. The initial height of the laser receiver was not calibrated 2. Execute the "centering" calibration procedure for the receiver 2. Re-calibrate the receiver 3. Wear of the machine's reference surface 3. Check the wear condition of the scraper base plate 3. Replace or adjust the scraper base plate The ground shows waves or unevenness 1. The machine's walking speed is unstable 1. Check the walking motor and control system 1. Adjust to a uniform walking speed 2. Pressure fluctuations in the hydraulic system 2. Check the hydraulic oil level, filter element and pump valve 2. Replace the hydraulic oil or filter element and inspect the hydraulic components 3. The ground base is soft and uneven 3. Assess the compaction degree of the base layer 3. Handle the grassroots level 2. Vibration system failure The vibrator is not working or is weak 1. Power supply/circuit failure of the vibrator Check the fuses, circuits and switches 1. Replace the fuse and repair the circuit When repairing the circuit, be sure to cut off the power 2. The vibration motor is damaged 2. Measure the resistance of the motor 2. Replace the vibration motor 3. Blockage or insufficient pressure in the hydraulic oil circuit 3. Detect the hydraulic pressure of the vibration circuit 3. Clean the filter screen and adjust the relief valve 3. Malfunction of the walking system – Walk on one side or not at all 1. The walking track is stuck 1. Clear the debris inside the tracks 1. Clear out debris Do not force the drive to avoid damaging the components 2. Malfunction of the walking motor 2. Check the working pressure of the motor 2. Inspect or replace the motor 3. The control solenoid valve gets stuck 3. Tap or clean the solenoid valve 3. Replace the solenoid valve 4. Hydraulic system failure The system is noisy and the oil temperature is high 1. The hydraulic oil level is too low or the oil quality is incorrect 1. Check the oil level and the type of oil 1. Add or replace standard hydraulic oil Be careful not to get burned when checking the oil level while warming up the machine 2. Air enters the hydraulic pump or it is damaged 2. Exhaust and listen to the sound of the pump running 2. Tighten the oil suction pipe and replace the oil pump 3. The hydraulic oil filter element is clogged 3. Check the filter element clogging indicator 3. Replace the filter element 5. Laser system failure The receiver signal is unstable 1. The laser signal is blocked 1. Check the laser path 1. Clear the obstacles 2. The receiver sensor is dirty 2. Clean the receiver panel 2. Wipe with a soft cloth 3. Environmental disturbances (strong light, vibration) 3. Avoid interference sources 3. Adjust the position of the equipment or add a light shield Part Four: Regular Maintenance and Upkeep Plan Daily maintenance: Cleaning, checking the oil level, and inspecting the fasteners. Weekly/monthly maintenance: Replace the filter element, check the wear of the tracks, and calibrate the laser system. Quarterly/annual maintenance: Replace hydraulic oil and conduct a comprehensive inspection of key components. Part Five: Appendix Key component model table: such as hydraulic oil model, filter element model, fuse specification, etc. Service contact information: Phone numbers of the equipment manufacturer, internal maintenance supervisor, and external service engineer. Fault record sheet: It is used by operators to record the detailed situation of each fault for subsequent optimization of the manual. (2) Manual Compilation Process Establish a project team: Led by the equipment manager, the team members include: senior operators, maintenance technicians, and technical document clerks. Information collection Refer to the official "Operation and Maintenance Manual" for all the equipment. On-site interview: In-depth interviews with experienced operators and maintenance workers, documenting the "classic malfunctions" and "folk tricks" they encountered. Historical data analysis: Analyze previous maintenance record sheets to identify high-frequency fault points. Content writing and visualization The technical document clerk writes the first draft based on the collected information in accordance with the above framework. Use a lot of pictures and ICONS! In the "Possible Causes" and "Solutions" sections, attach physical photos or simple sketches as much as possible, such as "This is the filter element that needs cleaning" or "This is the location of the calibration button". Review and Verification Distribute the first draft to all operators and maintenance workers for trial use and review. Make revisions based on feedback to ensure the content is accurate and the language is easy to understand. Finalization and release: The final version of the manual (V1.0) is formed and enters the sharing process.   (1) Sharing form Physical manual Make waterproof, oil-proof and durable loose-leaf manuals and place them in the cab or toolbox of each piece of equipment. Advantages: Readily available on site and does not rely on electronic devices. Disadvantages: Inconvenient to update, prone to damage or loss. Digital Manual PDF electronic version: Distributed to each employee's wechat, email or company shared disk for easy access at any time on mobile phones or computers. Enterprise internal APP/ microsite: Transform the manual content into a simple web page or embed it into the company's OA/ERP system, supporting keyword search for the best user experience. Qr code: Paste a QR code in a prominent position on each device. Scan the code to view the latest version of the electronic manual. This is a highly recommended way! (2) Management and Update Mechanism The manual is not set in stone and a dynamic update mechanism must be established. Designated person in charge: Clearly define the maintenance person in charge of the manual (usually the equipment supervisor). Establish feedback channels: Encourage all users to provide feedback on new faults or better solutions not covered in the manual in the "Fault Record Sheet" or through the wechat work group. Regular review: Every six months or once a year, the project team conducts a centralized review of the manual and updates it based on feedback and technological development. Version control: Each update requires the version number and date to be updated, and everyone should be notified through group announcements, emails, etc., to ensure that everyone is using the latest version. For physical manuals, it is necessary to collect the old versions in a timely manner and replace them with new ones. The value of a manual lies in its use. Formal kick-off meeting: Organize a brief meeting to introduce the purpose, content and access methods of the manual to all employees. Practical training: Use the manual as an essential textbook for new employees' onboarding training and conduct troubleshooting drills in combination with real equipment. Case Sharing Session: Every month, during the safety meeting or morning meeting, an operator is invited to share a case of successfully resolving a fault using the manual, and a small reward is given to stimulate enthusiasm for use. By systematically establishing a detailed and illustrated troubleshooting manual, and adopting a shared approach that combines online and offline methods, supplemented by effective management and training, this "Common Fault Troubleshooting Manual for Concrete Laser leveling Machines" is bound to transform from a mere document into a core asset that enhances team combat effectiveness and ensures equipment availability.   Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.

  It is very important to ensure that the laser transmitter of the concrete laser leveler is installed stably. Here are the specific methods: – Select a suitable location: According to the shape, size and obstacle distribution of the construction site, choose an open, flat location that can fully cover the construction area to install the laser transmitter. Generally speaking, it can be placed near the center of the site or at the edge of the site where the terrain is higher, and avoid placing it in places that are susceptible to vibration and collision. – Clean the installation surface: Use cleaning tools such as brooms and rags to thoroughly remove dust, debris, oil and loose particles on the surface of the installation location to ensure that the surface is clean and flat, providing a good foundation for subsequent installation. – Check the appearance of the transmitter: Carefully check whether the laser transmitter has any external damage, such as cracked or deformed shell, and whether the lens has scratches, stains, looseness, etc., to ensure that the laser transmitter itself has no quality problems and damage, so as to avoid affecting its normal operation and installation stability. – Use the level adjustment device: When installing, use the level adjustment foot or level meter that comes with the laser transmitter. By adjusting the height of the level adjustment foot, the level bubble of the laser transmitter is located in the center position to ensure that the transmitter is in a horizontal state. For some high-precision laser transmitters, a high-precision electronic level may also be required for auxiliary calibration. – Fix with a fastening device: After placing the laser transmitter in the selected position, use the matching bolts, nuts, washers and other fastening devices to firmly fix it on the mounting bracket or foundation. When tightening the bolts, operate according to the specified torque value to ensure that the tightening force of each bolt is uniform to prevent the transmitter from tilting or loosening due to uneven force. – Perform angle calibration: According to the construction requirements, use the angle adjustment mechanism on the transmitter to accurately adjust the angle of the laser emission so that it maintains the correct angle relationship with the construction plane or reference plane. During the calibration process, angle measurement tools such as theodolites and total stations can be used for auxiliary measurement to ensure that the angle error is within the allowable range. – Inspect installation stability: After installation, gently shake the laser transmitter to check for looseness or shaking. At the same time, observe whether the horizontal state and angle of the transmitter have changed. If there is any abnormality, readjust and tighten it in time. – Regular maintenance and calibration: During the use of the concrete laser leveling machine, the laser transmitter should be inspected and maintained regularly. At regular intervals of working time or construction mileage, the transmitter's horizontality, angle, and accuracy of the laser beam should be calibrated and debugged to ensure that it always maintains a stable and accurate working state. – Set up protective measures: To prevent the laser transmitter from being disturbed and damaged by external factors, protective devices such as guardrails and protective covers can be set around it. The height and strength of the guardrail should be able to effectively prevent personnel and equipment from colliding with the transmitter, and the protective cover should be able to prevent rain, dust, and sun, providing a good working environment for the transmitter.

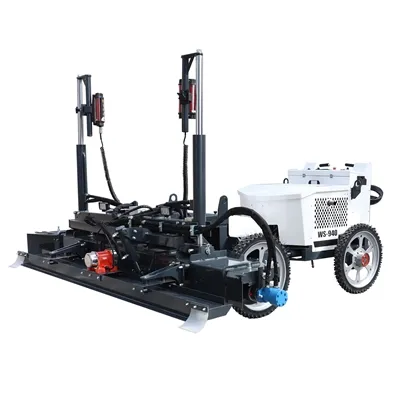

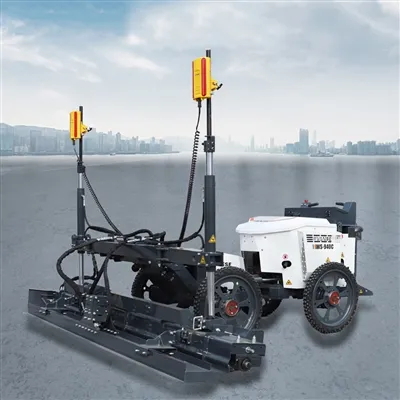

  ✨Accurate Elevation Control: The concrete laser leveling machine utilizes a laser-controlled leveling system. It takes the plane formed by the rotating laser beam emitted by the laser transmitter as the control reference. As long as the laser transmitter is not disturbed, the elevation of the entire floor can be accurately controlled. This ensures that the error in floor elevation is extremely small, reaching millimeter-level accuracy. In contrast to traditional manual leveling methods that rely on multiple reference points, which are prone to errors, the concrete laser leveling machine only requires 1-2 reference point elevations for the entire floor, reducing errors caused by multiple reference points. ✨Minimal Flatness Error: The laser-controlled leveling system of the machine can continuously and accurately measure and adjust the height of the concrete surface during the leveling process. This results in a much better-controlled flatness of the ground, with the flatness and levelness of the ground being more than three times better than that of traditional manual leveling operations. ✨Large-Area Paving: The concrete laser leveling machine facilitates large-area, one-time integral paving of the floor. It can continuously operate until the completion of the entire floor according to the required block-division construction, effectively avoiding problems such as easy hollowing and cracking caused by the layered pouring of the floor. This is difficult to achieve with traditional construction techniques. ✨Reduced Construction Joints: The large-area integral paving method significantly reduces the number of construction joints. Fewer construction joints mean less potential for damage along the joints due to factors such as wheel loads, which improves the overall integrity of the ground and also helps to reduce subsequent maintenance costs. ✨High-Frequency Vibration and Compaction: During the leveling of concrete, the concrete laser leveling machine operates at a constant speed. The leveling head's vibrating plate is equipped with a high-frequency vibrator that vibrates at 4000 times per minute. This generates uniform high-frequency vibrations, which effectively compact the concrete, making the ground more uniform and dense. The density of the concrete can be increased by more than 20%, which is beneficial for improving the strength and durability of the ground. – The concrete laser leveling machine is suitable for use with various types of concrete, including dry-hard concrete, fiber-reinforced concrete, and large-aggregate concrete. It can meet the construction quality requirements for different types of concrete floors, demonstrating strong adaptability.       Click the below to jump immediately!!! ARMOUR JOINT CONCRETE LEVELING MACHINE LIGHT TOWER POWER TROWEL SLIPFORM MACHINE STEEL FIBER TOPPING SPREADER TRACKED MINI DUMPER
