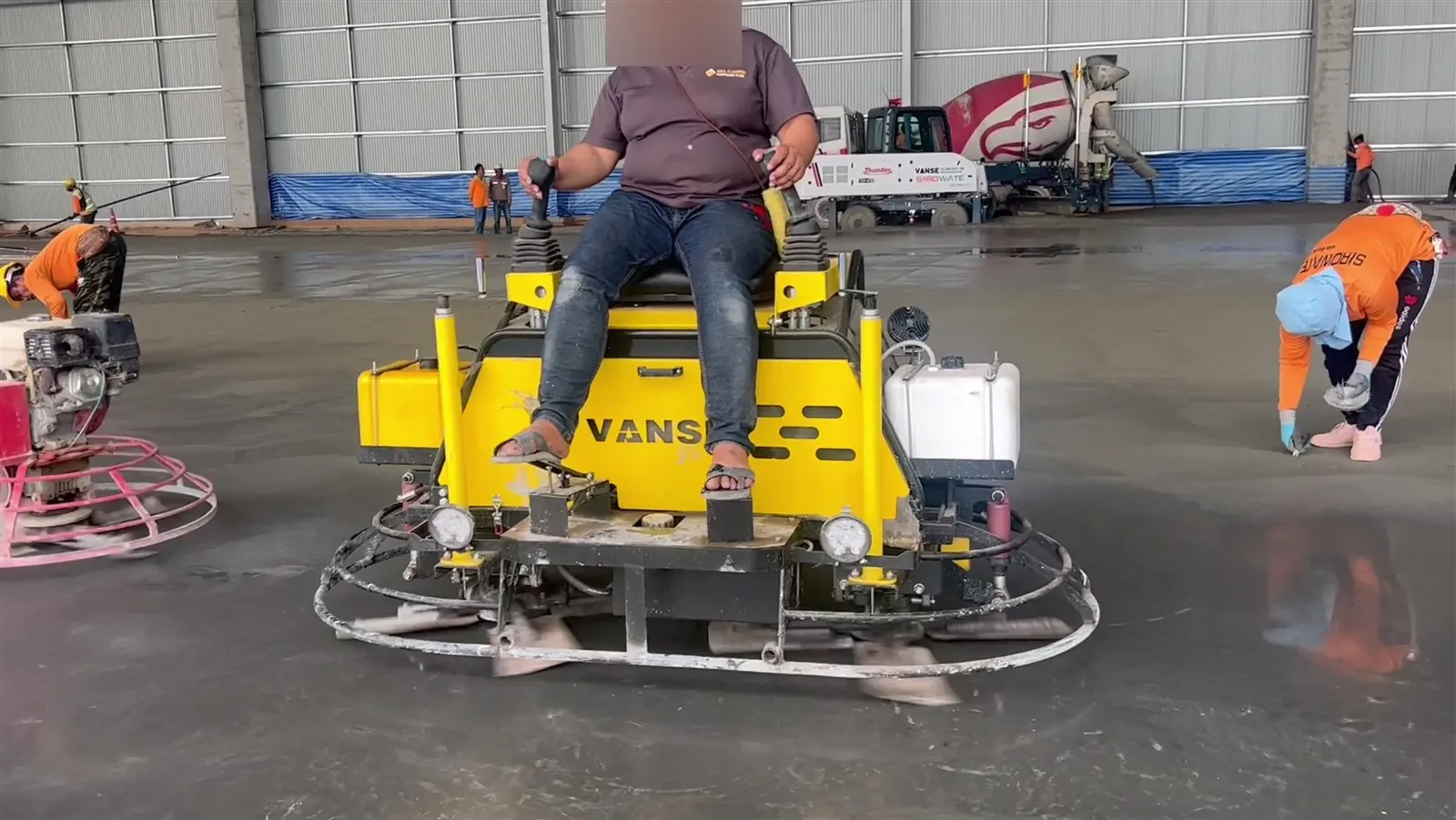

How long does it take to smoothen concrete? Depends on what

    To achieve a ±3mm tolerance (roughly an FF 50+ or "Super Flat" floor), your laser transmitter and leveling receivers must be calibrated far more precisely than a standard residential slab. At this level of precision, environmental factors and "ghosting" become your biggest enemies. Here is the professional procedure for calibrating a laser leveling system for super flat requirements. Before the pour, you must verify the laser transmitter itself. Even a high-end unit can drift. The Set-up: Place the laser exactly halfway between two walls (or stakes) approximately 30m (100ft) apart. Step A: Turn the laser to Face 1 (X-axis). Mark the beam height on Wall A and Wall B. Step B: Rotate the laser 180° to Face 2. Re-mark Wall A and Wall B. The Math: If the difference between the two marks on either wall exceeds 1.5mm, the internal pendulum or diode is out of spec. The "Super Flat" Rule: For ±3mm floors, your transmitter should ideally be accurate to ±1.5mm per 30m to allow for cumulative errors in the receiver and leveling hydraulics. If you are using a laser leveling (e.g., Vanse), you must calibrate the relationship between the laser receivers and the leveling head. Hydraulic Warm-up: Run the machine for 15–20 minutes. Cold hydraulic fluid moves slower, causing a "lag" in the auto-leveling that will blow your FF numbers. Auto-Cal Sequence: Set the transmitter 20–30m away. Place the leveling boom at 100% extension. Enter the machine's "Tuning" or "Service" menu and select Auto-Cal. The machine will move the cylinders through their full range to "learn" the exact voltage needed to move the head 1mm. Vibration Check: Ensure the vibrator is ON during the final stages of calibration. The vibration causes "settling" in the head that must be accounted for. Once the machine is calibrated, you must sync it with the physical site datum. Establish a Master Benchmark (usually a brass plug or a column mark) away from the pour area. Set your hand-held laser receiver (grade rod) to this benchmark. Place the grade rod on the leveling's finish blade (not the plow). Adjust the leveling's offset until the machine's "On Grade" light matches the grade rod's "On Grade" signal. Factor Requirement Why? Wind/Heat Use a "dead" zone Wind can vibrate the laser transmitter tripod, causing "beam bounce" (a 1mm shake at the source becomes 5mm at the leveling). Receiver Height Keep it low The higher the receivers are on the masts, the more they amplify any "sway" or vibration from the machine. Tripod Stability Concrete/Solid Earth Never set the transmitter on a wood deck or loose fill. Use a heavy-duty fiberglass tripod. Overlap 10–20% On super flat pours, each pass must overlap the previous one significantly to "erase" the transition line. If your numbers are off despite calibration, check for Refraction. On hot days, the laser beam can "bend" as it passes through heat shimmering off the ground. Solution: Raise the transmitter tripod to 2 meters (6.5 ft) high. This keeps the beam above the hottest air layer near the ground, providing a more stable reference line.   Would you like me to explain how to conduct a "Dipstick" or Floor Profiler test to verify these numbers once the concrete has cured?  Contact us NOW   Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.

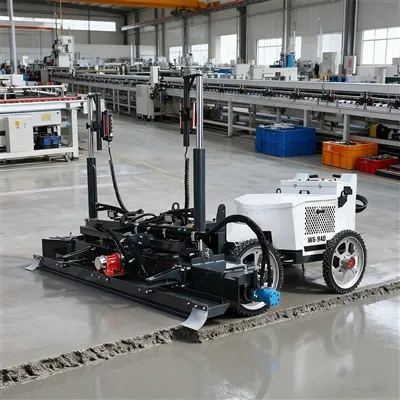

Large area floor laser leveling machine leveling construction method 1. Laser transmitter The laser transmitter is one of the important components of the large-area floor laser leveling machine. It is responsible for emitting laser beams and providing positioning and navigation benchmarks for the leveling machine. The laser transmitter should have the characteristics of high precision, high stability and long life to ensure the accuracy and reliability of leveling construction. When selecting a laser transmitter, factors such as its power, wavelength, and beam quality should be considered to meet different construction needs. 2. Work head The leveling head is the core component of the large-area floor laser leveling machine. It is responsible for leveling and compacting concrete materials to form a smooth and flat floor. The design and manufacturing quality of the smoothing head directly affects the quality and appearance of the floor. The smoothing head is generally composed of a scraper, a pressing plate, a motor, etc. It has a variety of working modes and adjustment functions, and can be selected and adjusted according to different concrete materials and construction requirements. 3. Engine The engine is the power source of the large-area floor laser leveling machine and provides power for the operation of the leveling machine. The choice of engine should be based on the specifications and construction needs of the leveling machine. Generally, a diesel engine or an electric motor is used. Engine performance parameters such as power, fuel consumption, noise, etc. are also important factors in selection. 4. Control Panel The control panel is the control center of the large-area floor laser leveling machine. The operator can control the operation of the leveling machine and switch between various working modes through the control panel. The control panel generally has multiple functions, such as start, stop, speed adjustment, direction control, etc. It can also display the working status and fault information of the machine. The design of the control panel should be concise and clear, making it easy for operators to quickly grasp and operate. 5. Auxiliary equipment Large-area floor laser levelings also require some auxiliary equipment such as concrete mixers, transport trucks, water pumps, etc. to complete the entire construction process. The selection and use of these auxiliary equipment should be based on actual conditions to ensure the smooth progress of construction and improve construction efficiency.

How is the frequency of maintenance of concrete laser leveling machine determined? As an important equipment in modern building construction, the frequency of maintenance of concrete laser leveling machine is of great significance to ensure the normal operation of the equipment, extend its service life and ensure the quality of construction. Determining a reasonable maintenance frequency is a complex process that requires consideration of the combined effects of multiple factors. This article will delve into how to determine the maintenance frequency of concrete laser levelings, and cover frequency of use and working environment, equipment performance evaluation, manufacturer recommendations and maintenance manuals, regular inspections and preventive maintenance, fault and exception handling, maintenance records and tracking and professional technical support and services. 1. Frequency of use and working environment The frequency of use and working environment of the concrete laser leveling are the basic factors that determine the frequency of maintenance. Generally speaking, equipment that is heavily used is more prone to wear and failure and therefore requires more frequent maintenance. At the same time, the complexity of the working environment will also affect the frequency of maintenance. If the equipment often operates in harsh environments, such as dusty, watery, high or low temperatures, the frequency of maintenance will also need to increase accordingly. When determining the frequency of maintenance, a preliminary assessment can be made based on the actual use of the equipment and the working environment. For example, if the equipment needs to work for a long time every day and the working environment is harsh, then it is recommended to perform comprehensive maintenance once a week or every two weeks. 2. Equipment performance evaluation Equipment performance evaluation is an important basis for determining maintenance frequency. By evaluating the performance of the equipment, you can understand the operating status and wear of the equipment and determine when maintenance is needed. Performance evaluation includes but is not limited to the flatness, flatness deviation, compactness, operational flexibility and stability of the equipment. During the evaluation process, if it is found that the performance of the equipment has declined or an abnormality occurs, maintenance should be carried out in a timely manner. At the same time, based on the results of equipment performance evaluation, the frequency of maintenance can be adjusted to ensure that the equipment is always maintained in optimal condition. 3. Manufacturer's recommendations and maintenance manual Manufacturer's recommendations and maintenance manuals are important references for determining the frequency of maintenance on concrete laser levelings. Manufacturers usually provide a detailed set of maintenance recommendations based on equipment design, manufacturing and testing experience. These recommendations usually include specific requirements and cycles for equipment cleaning, lubrication, tightening, inspection, and replacement of wear parts. The maintenance manual is a detailed guide for equipment maintenance, which contains maintenance requirements and specific operating steps for each component of the equipment. . By reading and maintaining the manual, we can have a more comprehensive understanding of the structure, performance and maintenance methods of the equipment, thereby more accurately determining the frequency of maintenance. Therefore, when determining the maintenance frequency of the concrete laser leveling, we should carefully read the recommendations and maintenance manuals provided by the manufacturer, and comprehensively consider the actual situation of the equipment. 4.Regular inspection and preventive maintenance Regular inspection and preventive maintenance are important measures to ensure the stable operation of the concrete laser leveling. Through regular inspections, potential problems and hidden dangers of the equipment can be discovered in time to prevent the occurrence or expansion of faults. Preventive maintenance is to delay the wear and aging process of equipment through a series of maintenance measures before equipment failure occurs. Regular inspections usually include visual inspection, electrical system inspection, hydraulic system inspection and transmission component inspection. During the inspection process, attention should be paid to the wear and tear of the equipment, the lubrication condition, the tightening of fasteners, and the contact of electrical components. Preventive maintenance includes regularly changing lubricants, cleaning filters, adjusting transmission component clearances, and tightening loose components. These measures can effectively extend the service life of the equipment and improve the stability of the equipment. The frequency of regular inspections and preventive maintenance should be determined based on the actual use of the equipment and the working environment. For equipment with high frequency of use or harsh working environment, the frequency of inspection and maintenance should be appropriately increased. 5. Fault and exception handling Fault and exception handling are important links in the maintenance process. When equipment fails or an abnormal situation occurs, it should be dealt with in time to prevent the failure from expanding or affecting the construction progress. When dealing with a fault, you should first determine the cause and location of the fault. Through observation, testing and analysis, the root cause of the fault is found, and then appropriate measures are taken to repair or replace it. At the same time, faults should be summarized and recorded to avoid the recurrence of similar problems during subsequent maintenance. In addition to handling faults, attention should also be paid to abnormal conditions of the equipment. For example, abnormal sounds, vibrations or temperature increases during the operation of the equipment may be symptoms of potential problems with the equipment. When these abnormalities are discovered, timely inspection and repair should be carried out to ensure the normal operation of the equipment. Therefore, when determining the maintenance frequency of concrete laser levelings, the need for fault and abnormal handling should also be taken into consideration. If your equipment frequently malfunctions or behaves abnormally, it may require more frequent maintenance. 6. Maintenance records and tracking Maintenance records and tracking are important means to ensure that maintenance work is carried out in an orderly manner. By recording the maintenance status of the equipment, the maintenance history and status of the equipment can be understood in a timely manner, providing reference for subsequent maintenance work. Maintenance records should include information such as the time, content, and methods of each maintenance, as well as problems found and treatment results. At the same time, records should be organized and analyzed regularly to evaluate the maintenance effect of the equipment and determine the next maintenance plan. Through the tracking and analysis of maintenance records, the actual operation status and maintenance needs of the equipment can be more accurately understood, thereby providing a more reliable basis for determining the frequency of maintenance. 7. Professional technical support and services Professional technical support and services are important guarantees to ensure the smooth progress of concrete laser leveling maintenance work. Manufacturers or professional maintenance teams usually have rich technical experience and professional knowledge and can provide timely and accurate technical support and services. During the maintenance process, if you encounter problems that are difficult to solve or need professional technical support, you can seek help from the manufacturer or a professional maintenance team. They can provide targeted solutions and technical guidance based on the actual situation and specific needs of the equipment. At the same time, professional technical support and services can also provide equipment upgrades and improvement suggestions to help users make better use of the equipment and improve its performance and efficiency. Through cooperation with the professional technical team, we can have a more comprehensive understanding of the characteristics and maintenance of the equipment. Maintenance requirements to more accurately determine the frequency of maintenance. To sum up, determining the frequency of concrete laser leveling maintenance is a process that takes multiple factors into consideration. Through comprehensive consideration of frequency of use and working environment, equipment performance evaluation, manufacturer recommendations and maintenance manuals, regular inspections and preventive maintenance, fault and exception handling, maintenance records and tracking, and professional technical support and services, we can provide equipment with Develop a scientific and reasonable maintenance plan. In actual operations, we need to flexibly adjust the frequency and content of maintenance based on the specific conditions and actual needs of the equipment. At the same time, we will strengthen the training and technical improvement of maintenance personnel to ensure that they are proficient in equipment maintenance skills and provide a strong guarantee for the stable operation of the equipment. In addition, with the continuous advancement of science and technology and the upgrading of equipment, we also need to pay attention to new maintenance technologies and methods and apply them to actual work in a timely manner to improve the effectiveness and efficiency of maintenance. During the maintenance process, we should also pay attention to the following points: First, we must strengthen the daily cleaning and maintenance of the equipment, regularly clean up dust and debris on the surface of the equipment, and keep the equipment clean and hygienic. This can not only extend the service life of the equipment, but also improve the construction efficiency of the equipment. Secondly, pay attention to the lubrication of the equipment, regularly replace the lubricating oil and clean the filter to ensure that the lubrication system of the equipment is smooth. Good lubrication conditions can reduce equipment wear and failure and improve equipment stability and reliability. In addition, attention should be paid to the inspection and maintenance of the equipment's electrical system and hydraulic system. Regularly check the contact of electrical components and the connection of the lines to ensure the normal operation of the electrical system: Regularly check the cleanliness of the wave pressure oil and the stability of the oil level to ensure the stable operation of the hydraulic system. Finally, it is necessary to establish a sound maintenance record and file management system, and conduct detailed records and analysis of each maintenance situation to provide reference and basis for subsequent maintenance work. At the same time, through the management of maintenance records and files, potential problems and hidden dangers of the equipment can be discovered in time, providing a basis for preventive maintenance. In short, determining the frequency of concrete laser leveling maintenance is a comprehensive and complex process that requires comprehensive consideration of multiple factors. Through the implementation of scientific and reasonable maintenance plans and measures, we can ensure the stable operation of the equipment and extend its service life, and provide efficient and high-quality services for concrete construction. However, it is worth noting that although we have discussed multiple factors to determine the frequency of maintenance, each specific concrete laser leveling may vary depending on its model, specifications, usage conditions and other factors. different. Therefore, in actual operation, we also need to flexibly adjust the frequency and method of maintenance according to specific conditions. At the same time, with the advancement of science and technology and the upgrading of equipment, new maintenance concepts and technologies will continue to emerge. We should actively pay attention to the latest developments and technological developments in the industry, and promptly apply new maintenance concepts and technologies to actual work to improve the maintenance level and efficiency of equipment. In addition, it is also very important to strengthen communication and cooperation with other peers and professional and technical personnel. By sharing experiences, exchanging ideas and jointly discussing ways to solve problems, we can continuously improve our professional skills and levels and provide better support and services for the maintenance of concrete laser leveling machines. Finally, we need to emphasize the continuity and stability of maintenance work. Maintenance work should not be just an occasional temporary task, but should become a long-term, stable job. Only consistent maintenance can ensure the stable operation of the equipment and extend its service life. To sum up, determining the frequency of concrete laser leveling maintenance is a complex and important process. We need to comprehensively consider multiple factors, formulate a scientific and reasonable maintenance plan, and strengthen the continuity and stability of maintenance work. Only in this way can we ensure the stable operation and efficient construction of the equipment and contribute to the development of the concrete industry. The above content is only a relatively comprehensive overview of the maintenance frequency of concrete laser leveling machines. In actual operation, we still need to conduct more in-depth research and discussion based on specific circumstances. I hope this article can provide some reference and inspiration for readers, and inspire more thinking and research on the maintenance of concrete laser leveling machines.
