Experienced manufacturers answer your questions about cleaning the laser leveling machine oil tank

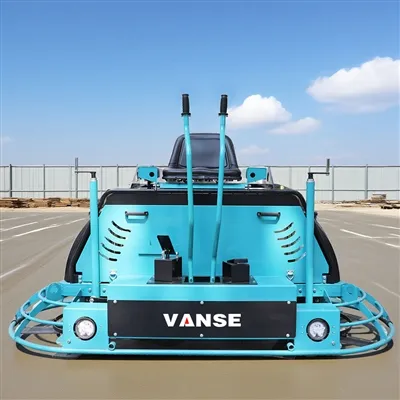

    Black smoke emitted by a Power Trowel during operation is a typical malfunction phenomenon. The fundamental cause lies in incomplete fuel combustion, which leads to the direct discharge of tiny carbon particles. The following is a detailed analysis of the causes and handling measures, listed in the common order of investigation. Cause analysis: Engine combustion requires sufficient air. When the air filter is severely clogged with dust and debris, the intake volume is insufficient, resulting in the fuel injected into the cylinder not being able to mix with enough air, causing a "rich fuel" state. Unburned carbon particles then form black smoke. Handling measures Stop the machine immediately for inspection. Remove the air filter element. For paper filter elements, check by shining a flashlight. If the light transmission is poor or the surface is covered with dust, they need to be replaced. For sponge filter elements, they can be thoroughly cleaned with neutral detergent, completely dried, and then a few drops of engine oil should be added and kneaded evenly before being reinstalled. Note: In construction sites with a lot of dust, the air filter should be cleaned every day or every shift. Cause analysis: Excessive fuel supply or poor fuel quality. Handling measures Check the fuel: Use fresh and clean standard-grade gasoline. Inferior or deteriorated gasoline will affect combustion. Check the oil level: Pull out the oil dipstick and check if the oil level is between the upper and lower limits. Excessive oil filling will increase the pressure in the crankcase, causing the oil to seep into the combustion chamber and participate in combustion, generating blue-black smoke. Check the dampers: The dampers are used to thicken the mixed gas during cold machine startup. If the machine remains in the off state during hot operation or normal operation, it will cause the mixture to be too rich and black smoke to be emitted. Please ensure that after the machine is started and preheated, the choke door is fully opened to the "Running" position. Clean or inspect the carburetor: If all the above three points are normal, the problem is likely to lie with the carburetor itself. Excessive mixture: If the oil level in the float chamber inside the carburetor is too high, the main orifice is worn or blocked, or the needle valve is stuck, it can all lead to excessive fuel injection. Handling: The carburetor needs to be disassembled. Thoroughly clean all oil passages and measuring holes with carburetor cleaner. This is a highly technical operation. It is recommended that it be carried out by professional maintenance personnel or that the carburetor assembly be replaced directly. Cause analysis: Ignition system failure leads to incomplete combustion. Handling measures Check the spark plugs Remove the spark plug and observe the electrode part. If the carbon deposits are severe and appear black and velvety, it indicates poor combustion. Clean the carbon deposits with spark plug cleaner or a wire brush. Use a feeler gauge to check and adjust the electrode gap to the range specified in the equipment manual (usually 0.6-0.8mm). If the ceramic part of the spark plug is cracked or the electrode is severely eroded, please replace it with a new one directly.   Cause analysis: When the concrete material is too soft, the operator presses down too deeply, or the flattening head is stuck by foreign objects, the engine will be forced to output more power due to a sharp increase in load. The control system will automatically thicken the mixture, and at this time, black smoke may be emitted briefly. Handling measures Master the correct construction timing: Start the smoothing operation when the concrete reaches the initial setting state (when a person stands on it and sinks by about 5-10mm). Standard operation: According to the hardening condition of the concrete, gradually switch from high speed and large Angle to low speed and small Angle to avoid excessive downward pressure in the initial stage.   Safety Notice: All inspections and repairs must be carried out after the engine has been completely turned off and cooled down. Preventive maintenance recommendations Regular maintenance: Replace the air filter, engine oil, spark plugs and fuel filter strictly in accordance with the user manual. Use high-quality oils: Use clean gasoline and engine oil of the recommended grade. Form good habits: Conduct a simple visual inspection before each operation, pay attention to the engine sound during operation, and stop the machine immediately if any abnormality is found. By following the principle of starting from the simple to the complex for investigation, most black smoke problems can be solved by cleaning the air filter and checking the choke.   Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.

The laser receiver is one of the core equipment in laser leveling construction, and the evaluation of its sensitivity and dynamic range is crucial to ensure construction quality. Sensitivity determines the minimum signal strength that a laser receiver can detect, while dynamic range reflects the laser receiver's ability to work under different signal strengths. This article will elaborate on how to evaluate the sensitivity and dynamic range of the laser receiver, in order to provide a useful reference for improving the quality of laser leveling construction in floor projects. 1. Evaluation of sensitivity The sensitivity of a laser receiver is usually expressed in terms of the minimum optical power or minimum light intensity that can be detected. Assessing the sensitivity of a laser receiver requires the following steps: •♦•Choose an appropriate test light source: In order to ensure the accuracy and reliability of the evaluation results, it is necessary to select a stable and adjustable test light source. The wavelength of the test light source should match the design wavelength of the laser receiver. To ensure the validity of the test, •♦•Set test conditions: During the test process, environmental variables such as temperature, humidity and vibration need to be controlled to reduce test errors. At the same time, the test distance and angle should also be set according to the actual usage of the laser receiver. •♦•Measurement of optical power or intensity: Use measuring equipment such as an optical power meter or intensity meter to measure the response of the laser receiver under different optical powers or intensity. Recording the minimum optical power or light intensity value that can trigger the response of the laser receiver is the sensitivity of the laser receiver. It should be noted that when evaluating the sensitivity of the laser receiver, it is also necessary to consider the impact of parameters such as spot diameter and divergence angle on the test results. In addition, since the laser receiver may be interfered by background light, noise and other factors, corresponding measures should be taken during the evaluation process to reduce the impact of interference on the test results. 2. Assessment of dynamic range The dynamic range of a laser receiver refers to the range between the maximum optical power and the minimum optical power that the base can handle. To evaluate the dynamic range of a laser receiver, you need to take the following steps: •♦•Determine the maximum optical power threshold:  First, you need to determine the maximum optical power that the laser receiver can withstand, which can usually be obtained by consulting the technical specifications of the laser receiver or conducting actual tests. During the actual test process, you can gradually increase the optical power and observe the response of the laser receiver until saturation or damage occurs. Record the optical power value at this time, which is the maximum optical power threshold of the laser receiver. •♦•Determine the minimum optical power threshold: As mentioned above, the minimum optical power threshold of the laser receiver can be obtained through sensitivity evaluation. That is, the minimum optical power value that can trigger the response of the laser receiver. •♦•Calculate dynamic range: Calculate the dynamic range of the laser receiver based on the maximum optical power threshold and the minimum optical power threshold. Dynamic range is usually expressed in decibels (dB), and the calculation formula is: dynamic range (dB) = 10*log10 (maximum optical power/minimum optical power). It should be noted that when evaluating the dynamic range of a laser receiver, other factors such as linearity, noise, etc. should also be considered. Linearity reflects whether the response of the laser receiver under different optical powers is linear and is crucial to ensuring measurement accuracy. Noise may have a negative impact on the performance of the laser receiver and needs to be paid attention to in practical evaluations. In addition, in order to improve the accuracy and reliability of the evaluation results, it is recommended to use a variety of different testing methods and equipment for evaluation. For example, you can use test light sources of different wavelengths, change the test distance and angle, and other conditions to observe the response of the laser receiver. At the same time, you can also conduct comparative tests with other laser receivers of the same type to better understand the performance characteristics of the laser receiver. Summarize The evaluation of the sensitivity and dynamic range of the laser receiver is an important part of ensuring the quality of laser leveling construction for floor projects. The performance characteristics of a laser receiver can be fully evaluated by selecting the appropriate test light source and test conditions, making optical power or intensity measurements, and calculating dynamic range. In the actual evaluation process, attention should also be paid to the impact of other factors such as linearity, noise, etc. on the evaluation results. Through scientific and reasonable evaluation methods and technical means, useful reference and support can be provided to improve the quality of laser leveling construction of floor projects.

Even the best laser levelers will likely age or even become scrapped as they age or are used more and more, or due to improper maintenance, untimely after-sales service from the manufacturer, and other factors. Faced with such machines, many construction units usually abandon them, not knowing that many manufacturers have launched activities such as "recycling old machines at high prices and exchanging old for new". For scrapped laser levelers, customers can participate in the above activities in the following ways. ● Sell the idle laser levelers directly, and the manufacturers will recycle them at a high price For the idle and aging scrapped laser levelers in your hands, it may be due to the large amount of engineering, long service life, old software system, or replacement with a newer or larger laser leveler, or the transformation of the industry and no longer direct concrete paving construction, and no longer intend to reuse the original idle laser levelers. As long as the laser system is intact, it can be sold directly to manufacturers with "old for new" activities. They will definitely conduct professional evaluation of your equipment and help you realize cash. ● Repair and refurbish the laser leveler in your hands, and the manufacturer provides you with remanufacturing services At the end of the year, many construction units will sort out the construction equipment in their hands after they are idle, in preparation for the construction next year. They hope to reuse the idle and aging laser levelers in their hands, but they often do not have professional skills and cannot repair them. The cost of purchasing a new machine is too high. At this time, you can contact the manufacturer of "old machine recycling at a high price" to remanufacture your laser leveler. In addition to solving the problems of your current equipment and replacing damaged parts, you can also use your own technical advantages to upgrade and transform your equipment software system to "turn waste into treasure". ● Replace the scrapped equipment in your hands with a new machine, and the manufacturer provides "old for new" service As a precision equipment, some friends ignored the after-sales service, brand technology, product quality and other factors when they bought the laser leveler. They often bought low-quality products without after-sales service because they only wanted to be "cheap" for a while. Although there are concrete paving projects in hand, they cannot be used normally due to problems with the equipment or the manufacturer has not provided systematic and professional training to the operator. I want to buy a product with higher intelligence, guaranteed service and excellent quality, but due to financial pressure, I can't buy it for the time being. In order to meet the needs of such friends, we carry out the "old for new" service, conduct replacement evaluation, and replace the new intelligent laser leveling machine after making up the price difference. After the laser leveling machine has been used for a long time, it will inevitably be idle or scrapped, but as long as we handle it reasonably, we can successfully turn waste into treasure and obtain unexpected benefits. Therefore, if the laser leveling machine in your hand has become old or scrapped, do not discard it at will. You can contact the manufacturer with recycling activities to let the equipment "turn waste into treasure".
