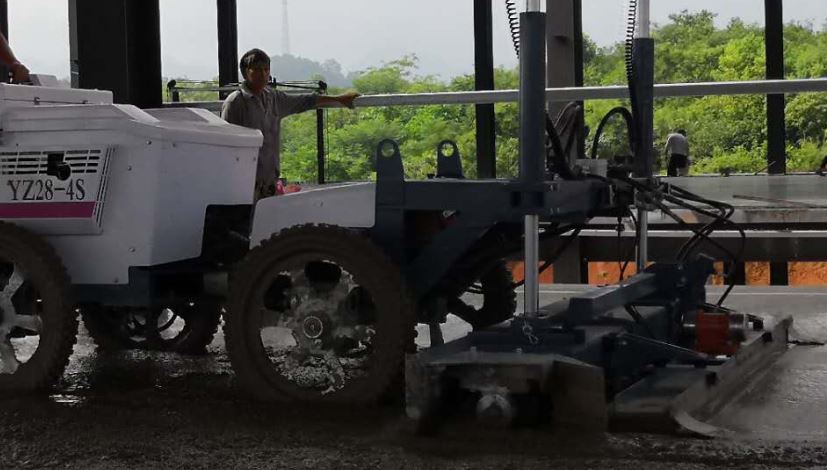

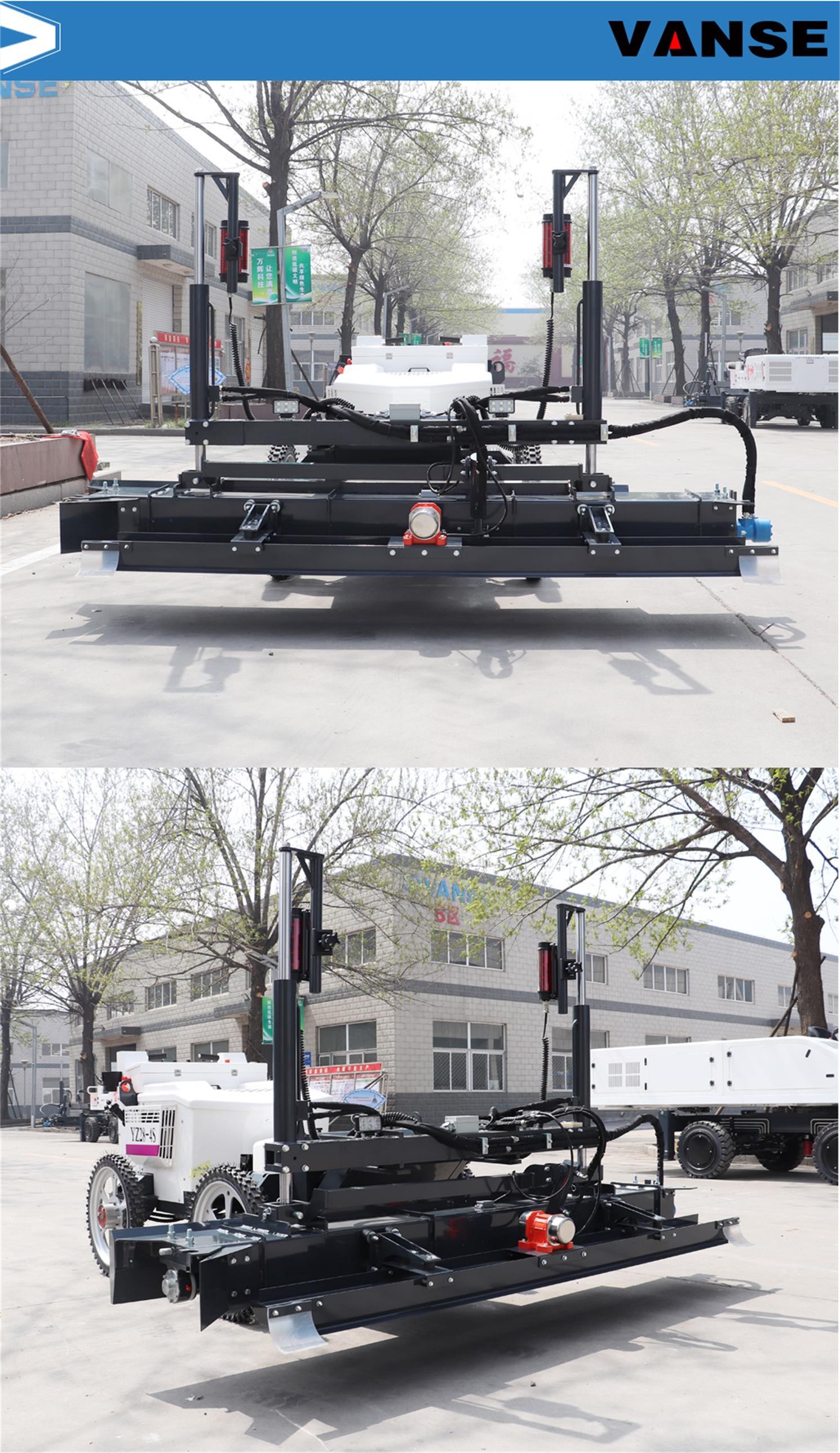

YZ28-4S Concrete Level Machine Summer Construction Considerations

As one of the commonly used equipment in modern construction projects, concrete laser leveling machine has close contact and mutual influence with other construction machinery. These connections and influences are not only reflected in the complementarity between equipment, but also in the coordination and optimization of the overall construction organization. The following will elaborate on the connection and interaction between the concrete laser leveling machine and other construction machinery from several aspects, as well as its status and role in the overall construction organization. 1. The relationship between concrete laser leveling machine and other construction machinery The concrete laser leveling machine is mainly used to smooth and smooth the concrete surface to improve the quality of the concrete surface. During the construction process, the concrete laser leveling needs to work closely with other construction machinery to ensure the smooth progress of the construction. Connection with the concrete mixing station: The concrete laser leveling needs to use the concrete provided by the mixing station, so there is a close connection with the concrete mixing station. During the construction process, the concrete mixing station needs to reasonably arrange the supply of concrete according to the construction progress and needs of the concrete laser leveling to ensure that the supply of concrete can meet the construction needs. Connection with transportation machinery: The concrete laser leveling requires the use of transportation machinery to transport concrete from the mixing station to the construction site, so there is a close connection with the transportation machinery. The transportation machinery needs to reasonably arrange the transportation time and transportation route according to the construction progress and needs of the concrete laser leveling machine to ensure that the concrete can reach the construction site in time. Connection with lifting machinery: The concrete laser leveling requires the use of lifting machinery for hoisting and movement, so there is a close connection with the lifting machinery. During the construction process, the concrete laser leveling needs to cooperate with the lifting machinery to ensure the accuracy and safety of hoisting and movement. 2. Interaction between concrete laser leveling machine and other construction machinery There are mutual influences between concrete laser leveling machines and other construction machinery. These influences are mainly reflected in the following aspects: Influence of construction efficiency: The construction efficiency of concrete laser leveling machines is affected by other construction machinery. For example, if the supply of the concrete mixing station is insufficient or the transportation machinery fails, the concrete laser leveling machine will not be able to perform normal construction, thus affecting the overall construction efficiency. Influence of construction quality: The construction quality of concrete laser leveling machine is affected by other construction machinery. For example, if the concrete is not smoothed in time after the transport machinery transports it to the construction site, it may cause problems such as cracks or bubbles on the concrete surface. Impact on construction safety: The construction safety of concrete laser leveling machines is affected by other construction machinery. For example, if the lifting machinery is operated improperly or does not properly cooperate with the concrete laser leveling for lifting and moving, safety accidents may occur. 3. The status and role of concrete laser leveling machine in the overall construction organization Concrete laser leveling machine plays an important role in the overall construction organization, which is mainly reflected in the following aspects: Improve construction efficiency: The concrete laser leveling can quickly and accurately complete the flatness and smoothness of the concrete surface, thereby improving construction efficiency. Guarantee construction quality: The concrete laser leveling can accurately control construction accuracy and quality, thereby ensuring construction quality. Reduce labor intensity: The concrete laser leveling machine can reduce the labor intensity of workers and improve work efficiency. Promote construction safety management: Concrete laser levelings can reduce the number of personnel on the construction site, thereby reducing safety risks on the construction site. To sum up, as one of the commonly used equipment in modern construction projects, concrete laser leveling machine has close contact and mutual influence with other construction machinery. In the overall construction organization, the concrete laser leveling has an important position and role. It can improve construction efficiency, ensure construction quality, reduce labor intensity, and promote construction safety management. It plays an important role. Therefore, during the construction process, the impact of various factors on the concrete laser leveling should be fully considered, and the relationship with other construction machinery should be coordinated to ensure the coordination and optimization of the overall construction organization.

    The key to adjusting laser leveling parameters is to "take concrete properties as the basis and laser benchmark as the core". It is necessary to achieve a balance between flatness and efficiency through three steps: matching material conditions, optimizing mechanical parameters, and adjusting the laser system.   Concrete slumpand Initial setting timeIt is the fault that determines all parameters. Different states require corresponding different settings, otherwise "over-vibration analysis" or "leveling failure" will occur. Specific status Core Impact Key parameter adjustment direction High slump (≥180mm) Strong fluidity, easy to segregate and produce sand 1. Reduce the vibration frequency (3000-4000 times/minute); 2. Slow down the driving speed (3-5m/min); 3. Reduce the scraper/warehouse pressure depth Medium slump (120-180mm) Moderate fluidity, easy to level 1. The vibration frequency is set to 4000-5000 times/minute; 2. Travel speed 5-8m/min; 3. Set the scraper/stack pressure depth to 5-10mm Low collapse (≤120mm) Poor fluidity, easy to honeycomb, uneven surface 1. Increase the vibration frequency (5000-6000 times/minute); 2. Slow down the driving speed to 2-4m/min; 3. Appropriately increase the scraper/warehouse pressure depth (10-15mm) After determining the foundation direction according to the concrete state, it is necessary to make detailed adjustments, vibration, walking, leveling. The three core parameters are the key to determining flatness. Vibration frequency: The core function is to make the concrete dense. If the frequency is too low, it is easy to hollow out, and if it is too high, it is easy to segregate. It is the first choice for conventional projects.4000-5000 times/minute. For thick concrete (≥200mm), the speed can be appropriately increased to 5500 times/minute, and for thin floors (≤100mm), it needs to be reduced to below 3500 times/minute to avoid vibrating dark and shallow layers. Vibration depth：The thickness of concrete pouring needs to be covered 1.2-1.5 times. For example, if the thickness of the poured ground is 150mm, the vibration depth should be set to 180-225mm to ensure that the upper and lower layers of concrete are tightly combined without stratification. Driving speed: Too fast will result in insufficient leveling and vibrating of the concrete, while too slow will affect the construction efficiency. It is recommended to follow the "Slow start, constant speed, slow stopPrinciple, normal speed is controlled at 5-8 m/min, the speed needs to be reduced by 2-3m/min in turning or corner areas to avoid edge abnormalities caused by centrifugal force. Walking path:use"Overlapping Paths", overlapping working width is200-300 mm, to prevent missing areas, especially suitable for large-area floor construction. Scraper/Neck Height：Based on the "reference signal" of the laser receiver, the initial height of the scraper must be higher than the design elevation.5-10mm high(Preset vibration subsidence amount), the warehouse height is slightly lower than the scraper (responsible for secondary finishing and leveling). Adjust：The consistency of the laser receiver determines the response speed of the equipment with high deviation. The large flat ground is set to "Medium sensitivity" (trigger adjustment when the deviation is ±2mm), corner or complex area setting "High sensitivity" (Adjustment is triggered when the deviation is ±1mm) to avoid surface depression caused by excessive adjustment. The premise for all parameter adjustments is that the laser reference is "accurate". If the laser system is offset, even the best mechanical parameters cannot guarantee flatness. Place it on a hard surface away from vibration sources (such as rollers and pump trucks), and use a spirit level to ensure that the transmitter is level (the bubble is in the center). After turning on the transmitter, use a tape measure or laser range finder to check whether the laser elevation within the 360° range of the transmitter is consistent (the workpiece must be ≤1mm). If the deviation is large, it needs to be corrected using the leveling screws at the bottom of the transmitter. Stop at a benchmark point with a known elevation (such as a poured lawn concrete block) and manually adjust the height of the receiver so that the display shows "Benchmark Elevation". Move the device to another reference point and check whether the display elevation is consistent with the actual height. If the deviation is greater than 1mm, open the host architecture panel and adjust the connection parameters between the receiver and the host. The chassis deviation should be ≤1mm.   The adjustment logic for the best leveling effect is "First determine the benchmark (laser layout) → then match the materials (adjust parameters according to collapse) → finally fine control (vibration, movement, flattening and refinement). After adjustment, it is recommended to conduct a trial operation on a small area (2-3㎡) first, check the flatness with a 2-meter ruler (the gap is qualified if it is ≤3mm), and then use the error parameters based on the trial operation results to avoid rework caused by direct large-scale construction. Concrete slump Vibration frequency Travel speed Scraper/stack pressing depth Laser receiver is the same ≤120mm (low slump) 5000-6000 (times/minute) 2-4 (m/min) 10-15 (mm) High deviation (trigger adjustment when deviation is ±1mm) 120-180mm (medium slump) 4000-5000 (times/minute) 5-8 (m/min) 5-10 (mm) Middle deviation (trigger adjustment when deviation is ±2mm) ≥180mm (high slump) 3000-4000 (times/minute) 3-5 (m/min) Appropriately reduce (mm) Middle deviation (trigger adjustment when deviation is ±2mm)   Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.

    Evaluating the commissioning and calibration of a concrete laser leveling is a systematic process, with the core criteria being "efficient construction" and "high-quality finished products." A successfully commissioned and calibrated machine should perform exceptionally well during construction, ultimately delivering a concrete surface that meets or exceeds expectations. The following are detailed dimensions and methods for evaluating its effectiveness, which can be viewed from both process indicators and outcome indicators:   These indicators focus on whether the machine is stable, efficient and reliable during operation. Evaluation method: Check whether the laser transmitter is securely mounted and whether its automatic leveling function is sensitive and accurate. Move the receiver within the effective range and observe whether the signal strength and data on the control panel are stable and without jumps. Good results: The laser transmitter is stable, and the signal covers the entire construction area without blind spots. The receiver can quickly capture and lock the signal at any position, and the device responds promptly. Machine response and execution accuracy Manual test: Without pouring concrete, start the leveling machine and observe whether the lifting and lowering action of the scraper (or mixing cage) is completely synchronized with the control command (manual raising/lowering), linear, and without delay. Automatic test: Place the leveling machine in a test area with a set elevation (such as a hardened floor), turn on the automatic mode, and the machine should automatically adjust the scraper according to the laser signal and maintain it at the designed height without any abnormal up and down fluctuations or "chasing" phenomenon (over-adjustment). Good results: The hydraulic or electric actuator moves smoothly, accurately, and without shock. The system corrects height deviations quickly and gently, without oscillation, demonstrating a good control algorithm. Evaluation method: Observe the performance during the actual pouring process. Does the operator need frequent manual intervention? Can the machine perform the leveling operation continuously? Good results: The construction process is smooth, and the leveling machine can "follow" the concrete pouring progress and continue to work, greatly reducing the downtime and waiting caused by equipment debugging problems, and significantly improving production efficiency. This is the most direct and reliable indicator for evaluating the effectiveness of commissioning and calibration. The quality of the final poured concrete floor must be verified by actual measured data. Evaluation tools: Use rulers and feeler gauges for routine testing. For more professional evaluation, use a floor flatness tester to measure F₃₀ and F₄₀ value. General standard: Use a 2-meter ruler to check, the gap should not be larger than 3-5mm. High standards: meet or even exceed the design requirements of F₃₀/F₄₀Values (e.g., F₃₀ ≥ 90%, F₄₀ ≥ 70%). This is the core value of the laser leveling machine. Evaluation tools: level or electronic level. Good results: The elevation of all points on large-area floors is consistent with the design elevation, with a very small error (usually required to be within ±3mm to ±5mm). Large areas are free of water accumulation. Evaluation method: visual inspection. Good results: The surface is dense and uniform, without obvious scraper marks, aggregate separation, honeycomb surface or cracks. The slurry is evenly mixed, providing a good foundation for the subsequent finishing process.   A successful commissioning and calibration should bring the following comprehensive benefits: Evaluation Dimensions Good debugging and calibration results Debugging poor calibration results Flatness/levelness Very high, data meets standards and is uniform and consistent Uneven, large data fluctuations, and local deviations Construction efficiency High, continuous operation, less manual intervention Low, frequent shutdowns for adjustments, relying on workers' experience Operation difficulty Low, easy for operators to control, low labor intensity High, the operator needs to make manual corrections constantly, which is stressful Material saving Precise control of concrete paving thickness, saving materials Uneven thickness may cause material waste Post-Processing Good surface quality and small finishing workload Many surface defects, requiring additional repair work Equipment loss Smooth operation, little wear on hydraulic system, scraper and other components Frequent abnormal movements increase equipment wear No-load test: After completing all hardware and software settings, perform a no-load operation test to check whether all actions are normal. Simulation test: Set a known elevation on hardened ground and let the machine run automatically to verify its accuracy in positioning and maintaining the elevation. Small area trial pouring: Select a small area (such as 10m x 10m) for actual concrete pouring and leveling, which is the most critical step. Actual measurement: After the trial pouring area is completely solidified (or measured promptly after initial setting, taking care to protect the surface), use tools such as a ruler and a level to conduct comprehensive measurements and collect data. Analysis and Adjustment: Determine the effect based on the measured data. If it does not meet the standard, analyze whether it is a mechanical failure, laser system error, or parameter setting problem, make fine adjustments, and repeat the test until the effect is satisfactory. Large-area construction monitoring: During formal large-area construction, it is still necessary to regularly review the laser transmitter benchmark and the machine's zero point to ensure long-term working stability. In short, the evaluation of the debugging and calibration effect of the concrete laser leveling machine must not be based on feelings alone, but must rely on "data". The ultimate evaluation standard is whether it can efficiently and stably produce concrete floors with flatness, levelness and surface quality that meet the design requirements without frequent human intervention. ARMOUR JOINT CONCRETE LASER LEVELING MACHINE POWER TROWEL
