There are some particularities in replacing parts of concrete laser leveling machines. Are you familiar with the operating specifications?
September 11, 2024

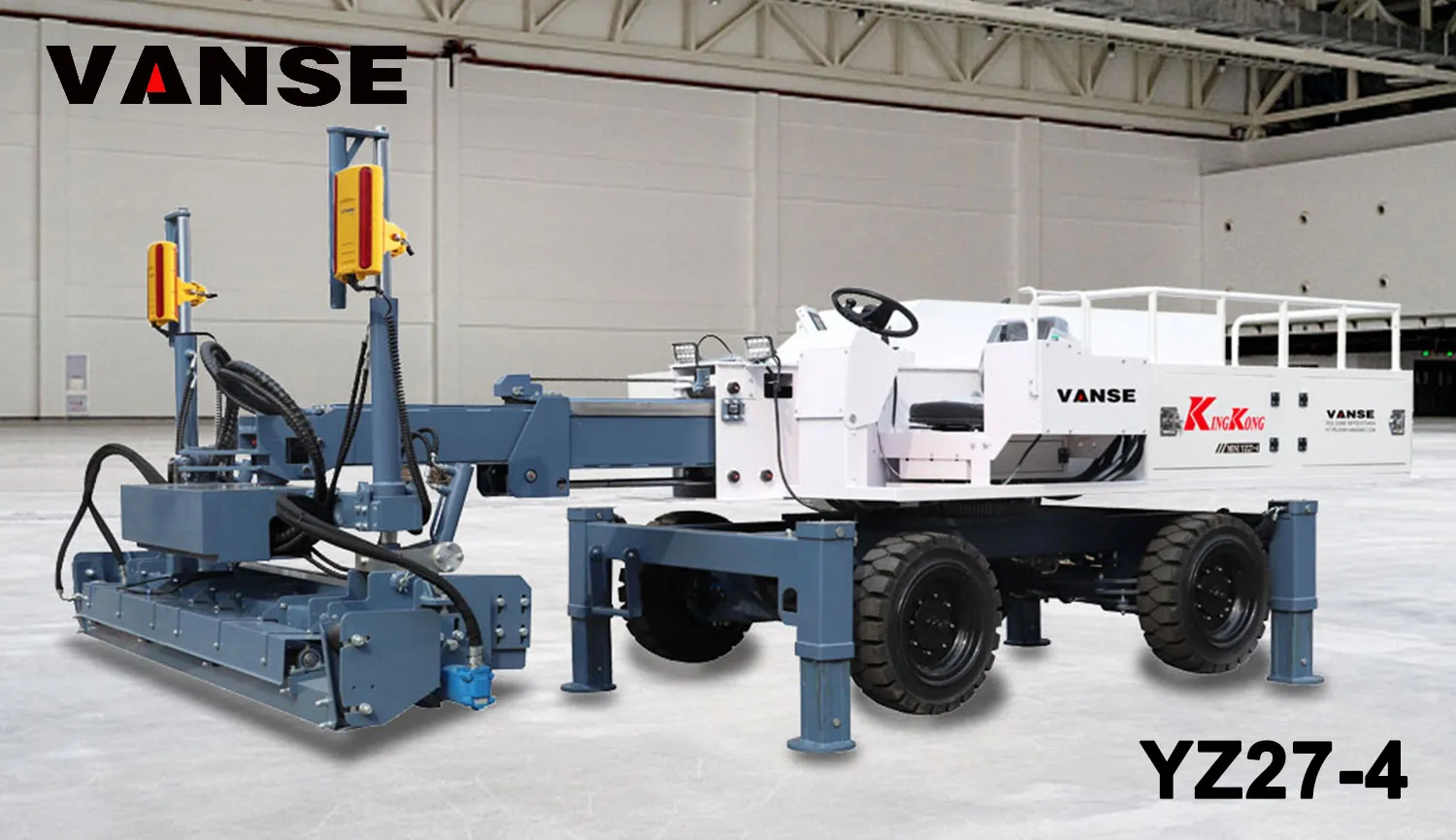

There are some particularities in replacing parts of concrete laser leveling machines. Are you familiar with the operating specifications? 2
With the rapid development of modern industry, the application of concrete laser leveling machines has become increasingly widespread. However, in the actual use process, there are also cases where the parts of the concrete laser leveling machine are damaged due to improper operation or excessive workload. In order to ensure the smooth progress of the project construction, it is necessary to replace the damaged parts in time. So, what is the correct posture for replacing damaged parts of the concrete laser leveling machine?
☪ Tips for replacing connecting rods and connecting rod caps
The connecting rod of the horizontal diesel engine is split at 45 degrees, and the section should be facing down to improve the force of the connecting rod bolts. The connecting rod cap and the connecting rod are processed in pairs. When assembling the concrete laser leveling machine, the matching marks should be on the same side to ensure that the roundness and cylindricity of the connecting rod bearing meet the specified requirements.
☪ Tips for replacing main bearing caps, bearing shells, and bushings
The main bearing caps and the bearing seats of the engine body are both processed by matching boring. They should be seated according to the matching marks. They should not be interchanged or the assembly direction should be changed at will to avoid damaging the coaxiality and dimensional accuracy of the main bearing seat hole. The bearing shells or bushings with oil holes should be aligned with the corresponding oil passage holes on the bearing seat and bushing holes to ensure that the oil path of the concrete laser leveler is unobstructed.
☪ Tips for replacing cylinder gaskets
If the concrete laser leveler has oil holes, they should be aligned with the corresponding oil passage holes on the engine body and cylinder head to avoid friction caused by oil shortage in the valve mechanism on the cylinder head. If there is no oil passage hole and the front and back shapes are the same, it is determined by the material of the cylinder head: for aluminum alloy cylinder heads, the curled side of the cylinder head should face the cylinder body; for cast iron cylinder heads, the curled side of the cylinder head should face the cylinder head.
☪ Tips for replacing pistons and piston rings
For pistons with upward arrows or other marks on the top, they should be installed in the direction specified by the marks; for pistons without marks, the vortex pit on the top of the piston or the small notch next to the pit should be facing the injector side to ensure uniform mixing of the gas. When assembling piston rings, those with "up" or "UP" marks on the top should face upward; for twisted rings without marks on the top, the inner circle groove or chamfer should face downward; chrome-plated rings (shiny shell) should be installed in the first piston ring groove, and the openings of each ring should be staggered by 120~180 degrees to ensure its sealing effect.
Have you learned today how to correctly replace damaged parts of concrete laser leveling machines? If you have any questions, or if you have any questions about other technical issues, you can leave a message directly on this site. After receiving your feedback, we will definitely have professional technicians to reply to you in a timely manner.
