How to evaluate the performance & stability of laser receivers?

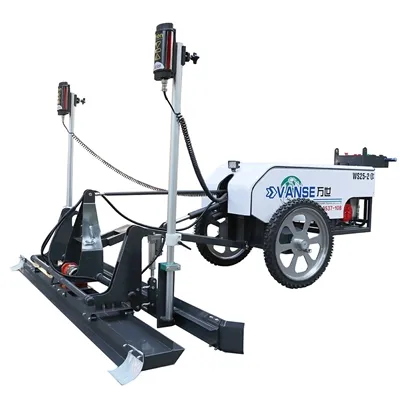

  The development of concrete laser leveling machine is the need of the times! The concrete laser leveling machine adopts the principle of laser leveling, which is more scientific and accurate than the traditional manual measurement method, and greatly reduces the error value caused by manual measurement. For some environments that require ultra-flat ground Said that this way of working is more acceptable and more in line with the needs of users. (1) The leveling principle of the laser leveling machine is realized under the automatic control of the computer by using precision laser technology, closed-loop control technology and highly precise hydraulic system. This is the most prominent difference between it and other floor construction processes. specialty. (2) The leveling principle of the precision laser leveling machine is to rely on the leveling head driven by hydraulic power, cooperate with the laser system and the computer control system to complete the leveling work while automatically leveling. The leveling head is equipped with an integrated scraper, vibrator and leveling plate, which integrates all leveling, leveling, vibration and compaction work, and completes it at one time. The computer control system automatically adjusts the elevation 10 times per second in real time, and the vibration frequency of the vibrator with a balanced design reaches 3000 times per minute. (3) The laser transmitter used to control the ground level is arranged independently, so that the level of the ground is not controlled by the template, and no cumulative error will occur.     The original traditional labor-intensive operation methods no longer meet the needs of development. The integration of machinery and equipment and intelligence must have become the mainstream of the times. The current construction industry has already adopted laser leveling machines to replace the traditional ground paving mode. Rapid paving of large areas can ensure the quality of construction. The ground paved by this equipment is more flat and compact, so that the flatness of the ground is guaranteed. The laser leveling machine has a high leveling ground, which significantly improves the flatness of the ground. The ground constructed by the laser leveling machine and the traditional method are tested at 22 points (one point every 5mx4m), and the average flatness is 1.3mm and 4.1mm respectively. The leveling quality of the laser leveling machine can be improved by more than 3 times compared with the traditional method. Reduce the amount of side formwork dismantling: Based on the statistics of 20,000 square meters of concrete pavement, the traditional method needs to dismantle 5800m of side formwork, but with advanced equipment such as laser leveling machines, the dismantling of 2500m can reduce the support modulus by more than 74%. Fast construction speed: use laser leveling machine and other equipment to construct large slabs, which improves the work efficiency by 3 times compared with the traditional beam vibrator method, saves 30%, and can complete 3000 square meters per day on average, especially suitable for large-scale concrete surface construction. High degree of automation and low labor intensity: the use of laser leveling machine equipment can change the heavy manual labor into mechanical paving, vibrating, leveling, pulp extraction, and surface plastering, reducing the number of operators by 30% and reducing labor intensity. The application of equipment such as laser leveling machines can realize large-scale construction, effectively reduce a large number of construction joints, and the concrete slump can also be significantly reduced. The concrete strength is guaranteed, so that the ground integrity is good and cracks are not easy to appear. High economic benefit, the use of laser leveling machine can save 2-3 yuan per square meter compared with the traditional process, less seams, and lower maintenance costs in the later period, so that the economic benefit can be significantly improved.

The use and promotion of concrete paving and leveling machines has ended the traditional construction of using mortar to punch piers, finding elevations, laying out side formwork, dump trucks to transport concrete, manual preliminary leveling, scraping with flat plates, and vibrating concrete with vibrators. Then a special double-row steel pipe is used to vibrate and tamp and level it back and forth. So how much do you know about this device? Next, I will give you a detailed introduction to the basic configuration of the concrete paving and leveling machine equipment. Let's learn more about it together. The basic configuration of concrete paving and leveling machine equipment is introduced in detail as follows: 1. The laser leveling machine uses precision laser technology, closed-loop control technology and a highly precise integrated hydraulic system, and is realized under the automatic control of a microcomputer. This is what distinguishes it from other floor construction techniques. 2. The concrete paving and leveling machine relies on a hydraulically driven leveling mechanism and cooperates with the laser system and computer control system to complete the leveling work while automatically leveling. 3. The laser transmitter used by the concrete leveling machine to control the ground elevation is independently arranged, and the floor elevation will not produce cumulative errors. Compared with traditional methods, the construction joints on the floor can be greatly reduced, and the subsequent maintenance costs of the ground and the use of formwork are also greatly reduced. 4. The laser transmitter equipped with the concrete paving and leveling machine can automatically control both the plane and the two-way slope. It is also completed by the laser system, microcomputer system, hydraulic system, and mechanical and electronic system. For complex-shaped floors with high requirements such as drainage, a three-dimensional special-shaped ground treatment system can also be selected. 5. Using solid anti-puncture tires, paving and leveling operations can be performed directly on the steel mesh. 6. The concrete paving and leveling machine comes with a high-pressure cleaning system, which greatly facilitates the cleaning of the bonded concrete on the machine, ensures the normal use of the machine, and extends the service life of the machine. Scope of application: Laser leveling machines are developed based on the increasing demand for ground quality such as strength, flatness, and levelness in modern industrial plants, large shopping malls, warehouses, and other large-area cement concrete floors. Indoor floors: ① Modern large-scale industrial plants, workshops, and automated three-dimensional warehouses. ②. Clean factories for electronic appliances, food materials, medicine, etc. ③, Large-scale warehouse supermarkets, logistics centers, convention and exhibition centers, etc. Outdoor floors: ①, terminals, container yards, freight yards, ②, airport runways, aprons, parking lots, ③, squares, residential floors, municipal roads, etc.

    Concrete Laser Leveling Machine Safety Operation and Maintenance Procedures Performance Requirements: Operators must undergo rigorous training and be familiar with the equipment's performance, operating methods, and safety regulations. Unlicensed operators are strictly prohibited. Dress Code: Wear personal protective equipment (PPE), including a hard hat, reflective clothing, puncture-resistant shoes, and protective gloves. On-site Inspection: Survey the construction site, clear any obstructions, and confirm the site's sufficient bearing capacity to prevent equipment from sinking. Set up clear construction cordons and prohibit unauthorized personnel from entering the work area. Equipment Inspection (mandatory before daily startup): Walk around the machine: Check all machine components for damage or cracks, especially the scraper, vibrator, and track. Fastener Inspection: Check for loose bolts and nuts in key areas (such as scraper attachment bolts and vibrator mounting bolts). Leak Check: Check the engine, hydraulic system, and fuel system for oil or water leaks. Lubrication Inspection: Check the lubricating and hydraulic oil levels to ensure they are within normal ranges. Power System: Check the coolant level and engine air filter for cleanliness. Laser System: Check the laser transmitter battery level to ensure the signal is stable; clean the laser receiver sensor lens. Start up: Ensure all control levers are in the neutral or park position. Sound the horn or sound an alarm to alert nearby personnel that the equipment is about to start. Start the engine smoothly and let it idle for 3-5 minutes to warm up, especially in cold weather. Moving and Traveling: Before moving, check your surroundings to ensure there are no people or obstacles. When working in potholes, on slopes, or near edges, exercise extreme caution and maintain a low speed to prevent tipping. When turning, pay attention to the position of accessories such as scrapers to avoid collisions with others or objects. Operation Process: Laser Setup: Properly set up the laser transmitter, ensuring it remains stable and stationary. Regularly check the reference surface for accuracy throughout the application process. Focused Operation: Pay close attention to the front and rear of the machine, as well as the feedback from the laser control system, and keep your hands on the joystick. Keep Out of the Way: While the machine is operating, no one is allowed to stand in the danger zone directly in front of or behind the machine. Abnormal Handling: If the machine experiences unusual noises, vibrations, alarms, or a sudden drop in performance, immediately shut it down for inspection. Operations can only resume after the problem has been corrected. Emergency: Familiarize yourself with the location of the emergency stop button and press it immediately in any emergency. If a fire occurs, immediately use the provided fire extinguisher to extinguish the fire. Shutting Down the Machine: Park the machine on a flat, solid, and safe area. Lower the scraper and ensure it rests flat on the ground. Shutting Down the Engine: Turn off the engine and remove the key for safekeeping. Cleaning: Do this immediately! Before the concrete sets, thoroughly clean any concrete slurry from the equipment, especially any buildup on the scraper, vibrator, and travel mechanism. Never use a sledgehammer to strike precision components. When flushing, avoid splashing the engine exhaust, bearing housing, laser electrical components, and other areas. Handover: Complete the equipment operation log, recording the operating hours, any abnormalities detected, and any maintenance performed during the shift. Maintenance is implemented through a system that combines daily maintenance, scheduled maintenance, and seasonal maintenance. Cleaning: Thoroughly clean the entire machine. Inspection and Tightening: Inspect and tighten all connecting bolts. Lubrication: Fill all lubrication points (such as the cutter head support, lift screw, travel bearings, etc.) with the specified grease according to the instructions in the manual. (Especially important: the scraper lift screw must be lubricated after each use!) Leak Check: Inspect the hydraulic system and engine for leaks. Oil Level Check: Check the engine oil, coolant, and hydraulic oil levels. Cycle Maintenance Details Maintenance Details Every 50 hours 1. Complete all daily maintenance items. 2. Inspect the scraper and vibrator for wear and adjust or replace if necessary. 3. Check the engine belt tension. Every 250 hours 1. Complete all 50-hour maintenance items. 2. Change the engine oil and oil filter. 3. Clean or replace the engine air filter element (requires shorter intervals in dusty environments). 4. Inspect the equipment structure for cracks or deformation. Every 500 hours 1. Complete all 250-hour maintenance items. 2. Replace the hydraulic oil suction and return filters. 3. Inspect the track and tires for wear and tension. 4. Check all electrical connections for tightness and deterioration. Every 1000-2000 hours 1. Complete all 500-hour maintenance items. 2. Completely replace all hydraulic oil. 3. Clean the hydraulic oil tank and breather. 4. Professional service engineers will fully calibrate the laser system accuracy and conduct a comprehensive overhaul of the equipment. Clean the equipment according to regulations. Apply grease to all exposed metal parts (such as scrapers and screws) to prevent rust. Fill the fuel tank with fuel to prevent rust on the inside. Disconnect the negative battery cable. Store the equipment in a dry, flat indoor environment.   Safety First, Prevention First: All operations and maintenance must be conducted with safety in mind. Cleanliness is Key: Concrete is extremely difficult to clean after setting, which can severely damage equipment. Immediate cleaning after each shift is paramount. Lubrication Ensures Longevity: Use the specified brand of lubricant/grease strictly in accordance with the manual and refill on schedule. Follow the Manual: This procedure is a general guideline only. For specific operations, be sure to follow the official manual for your equipment.   Implementing this procedure in daily operations will greatly ensure personnel safety, extend equipment life, and ensure construction quality.   Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.
