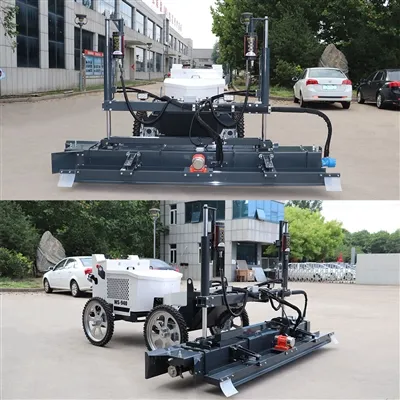

How to ensure the safety and reliability of concrete laser leveling machine during construction?

When the concrete laser leveling machine fails, it needs to be repaired. Generally speaking, maintenance is a good way to help the leveling machine to restore health, but some leveling machines still have a lot of small problems after maintenance. What is this ? In fact, because some maintenance personnel in the maintenance of concrete laser leveling machine, the error caused by the error, the following error in the maintenance of concrete laser leveling machine when do not make it again.

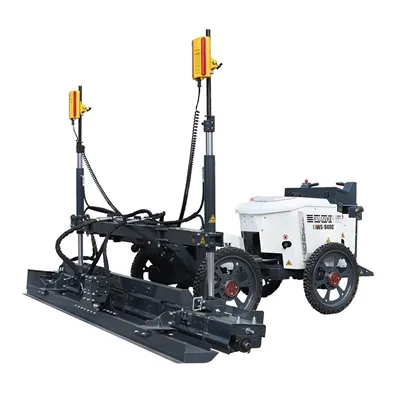

    In concrete construction, ensuring safety and improving efficiency requires coordinated efforts in equipment operation, personnel management, and construction process. The following is a detailed implementation plan that combines document safety specifications with construction points: Equipment hardware inspection (15 minutes before each operation): Confirm that the safety signs are complete (such as the "danger" signs on the telescopic arm and vibration beam are not detached), and the protective covers (hydraulic system, rotating parts) are installed in place. Check tire pressure (solid tires are not punctured), brake system (parking brake lock is reliable), and the hydraulic oil level is not lower than 1/2 of the oil gauge window (YZ40-4E hydraulic oil tank is 200L, if it is lower than the lower limit, add oil immediately). Test the signal connectivity between the laser receiver and the transmitter: The transmitter is placed at the reference point (height 3.2 meters), the receiver indicator light is centered, and the deviation exceeds ±1.5mm and needs to be recalibrated. Electrical system verification: Before starting, check the power cut-off switch (press to cut off, lift to turn on), there is no fault code on the instrument panel (such as water temperature > 112℃ warning light is not on), and all control handles are returned to zero position. Requirements for certification: Operators must pass manufacturer training (such as Shandong Wanshi Machinery's practical assessment), and are strictly prohibited from working under the influence of alcohol or while fatigued (continuous operation for more than 4 hours requires rotation). Emergency response drills: Simulate "abnormal equipment shutdown" and "laser signal interruption" scenarios every month, requiring operators to complete the following within 10 seconds: ① Lock the safety lever → ② Turn off the engine → ③ Take out the key. Multi-machine collaboration signal unification: A dedicated person is assigned to command with standard gestures at the construction site (such as "horizontal arm swing" to indicate shutdown), and all personnel must remember the "three-point contact on and off the machine" principle in the "Safety Rules" (maintain three-point support between the body, handrails, and pedals, and jumping is prohibited). Foundation pretreatment: The foundation needs to be compacted to 95% density, and the elevation deviation is controlled within ±20mm (laser elevation technology measurement) to avoid accumulation of leveling errors due to uneven foundation. Dividing construction zones: According to the 4-meter leveling width of YZ40-4E, each zone overlaps 0.5 meters to reduce joints (such as a 1000㎡ site can be divided into 25 40㎡ units). Concrete parameter matching: Use C20-C30 commercial concrete, the slump is controlled above 120mm (insufficient fluidity can easily lead to blockage of the screw conveyor), and the supply speed is matched with the construction efficiency of 24㎡/min to avoid material interruption and shutdown. Telescopic arm and steering coordination: During straight-line construction, the telescopic arm maintains 60% extension length (about 3.6 meters), and the crab steering mode (four wheels turn at the same time) is used for right-angle turns to minimize the time of moving the machine. When working on a slope (≤15°), adjust the automatic leveling system of the outriggers to ensure the level of the machine body, and adjust the excitation force to 3000N (maximum value) to enhance the density of the concrete. Dynamic calibration of the laser system: Use a handheld receiver to randomly check 3 points (such as the four corners and center of the site) every 2 hours of construction. If the FF value deviates by > 5 (such as from FF50 to FF45), immediately reset the laser reference point. Distance control for high-voltage line operation: ≥2 meters from 10kV cables, ≥11 meters from 500kV cables (see document safety distance table), set up warning lines during operation, and signalmen monitor the distance between equipment and cables in real time. If it is necessary to get close to the cable, the operator must wear insulating rubber shoes, lay rubber mats in the cab, and single-person operation is prohibited (2 people are required to cooperate, and 1 person is ready to stop the machine at any time). Operation specifications in high-temperature environments: Wait 30 minutes after the engine is shut down (the oil temperature drops below 60℃) before opening the cover for inspection. When removing the fuel tank cap, slowly unscrew it to release the pressure to avoid hot oil splashing and burns. Daily completion of "15-minute golden maintenance": High-pressure washing (150Bar pressure) of concrete residues on the leveling mechanism and tires to prevent wear of parts after solidification. Apply Mobil XHP222 high-temperature grease to the telescopic arm joints and screw conveyor bearings (deep lubrication once a month). Check that there is no leakage in the oil pipe joints (such as the fuel pipe, replace it every 250 hours), and there is no corrosion on the battery terminals (if the electrolyte splashes on the skin, rinse with water immediately) Maintenance items Cycle Efficiency impact point Replace engine oil 500 hours Power attenuation rate reduced by 15% Clean air filter 100 hours Avoid engine stalling due to insufficient air intake Replace hydraulic oil filter 250 hours Prevent valve core from getting stuck and causing malfunction Safety failures (must be shut down): If a hydraulic oil pipe bursts (risk of high-pressure oil injection), immediately press the power cut-off switch, cover the leak with a wooden board (do not touch it with bare hands), and contact the manufacturer to replace the oil pipe (do not use non-original accessories). When the laser receiver signal is interrupted, switch to manual mode (M gear) and manually calibrate the elevation with a ruler to prevent large-scale leveling deviations. Efficiency failures (temporary handling): When the screw conveyor is stuck, turn off the engine and use a special tool (non-metallic crowbar) to remove the concrete to avoid forced start and damage to the hydraulic motor (downtime is controlled within 10 minutes). If the downtime exceeds 30 minutes due to delayed concrete supply, you need to: ① lower the leveling mechanism to the ground → ② run the engine at idle speed (start every 15 minutes to prevent battery depletion) → ③ use a high-pressure water gun to rinse the working head to prevent the initial setting of the concrete. Record items Safety indicators Efficiency index Daily data Number of illegal operations (≤0 times) Actual construction area (≥2000㎡) Weekly summary Safety inspection pass rate (100%) Equipment utilization rate (≥85%) Monthly analysis Accident hazard rectification rate (100%) Fuel consumption (≤1.2L/100㎡) By converting the safety distance, maintenance cycle, and operating specifications in the documents into executable checklists and process nodes, we can ensure that the operation meets safety standards and improve equipment efficiency through parameter optimization and time management. For example, strict implementation of the "15-minute pre-job inspection" can reduce the equipment failure downtime rate by 20%, and zoning construction planning can maximize the efficiency of a 4-meter leveling width.

    The quality inspection of the flatness of concrete pavement is the core link in evaluating the construction effect, and the application of Concrete Laser Leveling Machine can not only improve the construction accuracy, but also provide data support for the inspection through its supporting digital functions. The following is an analysis from the aspects of inspection indicators, methods, equipment and data application, focusing on the relevant role of laser leveling machine in inspection:   Standard Flatness tolerance Detection tool Applicable scenarios China GB 50666-2011 ≤3mm/3m (measured with a 3m ruler) 3m ruler, feeler gauge Municipal roads and highway surface US ASTM E1155 ≤2mm/m (measured by laser profiler) Laser profiler, inertial profiler Airport runway, industrial floor European Union EN 13036-1 International Roughness Index (IRI) ≤2.5m/km Laser flatness meter Expressways, urban trunk roads   – The flatness error of the road surface constructed by laser leveling machine can usually be controlled within ±2mm/3m, which is better than the ±5mm/3m of traditional technology, and the international flatness index (IRI) can be as low as 1.5-2.0m/km, meeting the requirements of high-grade road surface. 🎨1. Traditional detection method: combination of manual and mechanical – 3m ruler method: – Operation: Place the 3m ruler perpendicular to the driving direction on the road surface, and use a feeler gauge to measure the maximum gap between the ruler and the road surface, measuring 2 places × 10 feet every 200m. – Limitations: Only reflects local flatness, cannot cover the entire section, and is greatly affected by human operation. – Laser leveling machine association: During construction, the real-time elevation data of the leveling machine can be used to predict the key areas of ruler detection (such as equipment joints and corner filling areas) and make corrections in advance. – Continuous Smoothness Tester Method: – Equipment: A trailer-type instrument with a sensor, which continuously measures at a speed of 5km/h, and calculates the standard deviation (σ) to evaluate the smoothness (the smaller the σ, the better the smoothness). – Data Comparison: The σ value of the road section constructed by the laser leveling machine is usually ≤1.2mm, while the σ value of the traditional process is ≥1.8mm, which is a significant difference. – Laser Profiler: – Principle: The laser transmitter emits multiple laser beams (such as 16), scans the longitudinal profile of the road surface, generates 3D elevation data, and calculates IRI, σ and other indicators (as shown in Figure 1). – Detection efficiency: 5-10km can be detected per hour, the data sampling interval is ≤10cm, and the accuracy is ±1mm. – Laser leveling machine data linkage: – The per square meter elevation data recorded during the leveling machine construction (stored in the equipment control system) can be directly imported into the detection software and compared with the measured data. The area with an error of more than ±3mm is automatically marked as "needing re-inspection". – For example: After a laser leveling machine was used for construction in an industrial plant, two elevation deviations (+5mm and -4mm) were found through the profiler detection. The construction record of the leveling machine was traced back to confirm that it was caused by the temporary occlusion of the sensor when the equipment turned, and it was repaired in time to meet the standard. – Inertial navigation flatness inspection vehicle: – Application scenarios: Suitable for long-distance inspections such as highways, integrating laser sensors and inertial navigation systems, driving at a speed of 60-80km/h, and generating real-time flatness cloud maps of the entire road section. – Pre-control value of laser leveling machine: Before construction, the inspection vehicle scans the old road surface and imports the data into the automatic leveling system of the laser leveling machine to achieve "feedforward control" – that is, adjust the leveling beam height in advance according to the deformation characteristics of the old road to reduce the impact of differential settlement in the later stage. – Linkage between laser transmitter and receiver: When the leveling machine is operating, the receiver continuously receives laser signals and updates the leveling beam height ≥10 times per second. If the local elevation deviation is detected to exceed ±4mm (preset threshold), the equipment automatically sounds and lights an alarm and stops moving, prompting the operator to check the concrete slump or foreign matter in the base. Case: During the construction of an airport runway, the receiver detected that the elevation of a continuous 3-meter area was 5mm lower. After the shutdown, it was found that there was loose backfill soil in the base that was not compacted. After timely rework, large-scale rectification was avoided in the later stage. – Intelligent construction report: Some high-end laser levelers (such as a German brand) can generate flatness process control reports, including: – Average elevation and maximum deviation value of each construction zone; – Correlation analysis between leveler travel speed and elevation fluctuation (as shown in Figure 2, the deviation rate increases by 20% when the speed is greater than 1.2m/min); – Comparison of concrete consumption with design value (flatness is more stable when the error is ≤±2%). – Preliminary detection of base layer flatness: Before construction, use the empty machine scanning function of the laser leveler (without paving concrete), drive at a speed of 0.5m/s, collect base layer surface data through the leveling beam sensor, generate a base layer flatness chromatogram (the red area indicates a deviation of >8mm), and guide base layer repair (as shown in Figure 3). – Data comparison: After the base layer flatness σ dropped from 5.0mm to 2.0mm, the surface layer flatness σ dropped from 2.5mm to 1.8mm, indicating that the base layer treatment has a significant impact on the final effect. – Use BIM+GIS technology to integrate test data, mark unqualified areas (such as sections with IRI＞3.0m/km) in the 3D model, associate the construction trajectory of the laser screed machine, and analyze the causes of errors (such as vibration leakage in the overlapping area at the equipment handover). – Example: A municipal road inspection found that the IRI of a continuous 100m section was 3.2m/km. Tracing the screed machine data found that the slump in this area changed suddenly during construction (from 140mm to 180mm), resulting in the failure to adjust the screed machine speed in time and local accumulation of concrete. – Local repair: For areas with deviation ≤5mm, use a handheld laser leveler (small equipment, paving width 1-2m) with fine stone concrete for repair, and use built-in sensors to ensure that the elevation after repair is consistent with the original road surface. – Large area rework: If the deviation is greater than 8mm or IRI is greater than 4.0m/km, the original road surface needs to be milled and removed, and the laser leveler is used again for paving to avoid the "patch effect" caused by manual leveling. Advantages Dimensions Traditional technology Laser leveling machine technology Data traceability No data record of the construction process Traceable 10+ parameters including elevation per square meter, speed, slump, etc. Detection efficiency Manual sampling coverage ≤ 20% Process detection coverage is 100%, and finished product detection efficiency is increased by 3 times Error prediction capability Post-testing is the main method Real-time warning during construction, reducing the rate of defective products by more than 80% Cost-effectiveness Corrective cost accounts for 5-10% Corrective cost accounts for ≤2% The coordinate system of the testing instrument must be consistent with the positioning system of the laser leveling machine (such as GPS or total station) to avoid data distortion due to coordinate deviation. Testing should be avoided in high temperature (＞35℃) or strong wind (＞5 level) weather. At this time, the concrete surface evaporates too quickly and plastic cracks are easily generated, affecting the flatness test results. Technicians operating laser leveling machines need to master basic detection principles (such as IRI calculation logic) so that they can actively adjust parameters to match the detection standards during construction. The inspection and evaluation of the flatness of concrete pavement needs to run through the whole process of "pre-construction base pre-control – dynamic monitoring during construction – comprehensive inspection after construction", and the laser leveling machine has become the core link between construction and inspection through digital construction data and high-precision control capabilities. It is recommended to give priority to the use of advanced equipment such as laser profilers for full-section inspection, and make full use of the process data of the leveling machine for error tracing, to achieve the closed-loop management of "inspection-analysis-rectification", and ultimately ensure that the road surface flatness meets the design requirements and extends the service life.     Click the below to jump immediately!!! ARMOUR JOINT LASER LEVELING MACHINE LIGHT TOWER POWER TROWEL SLIPFORM MACHINE STEEL FIBER TOPPING SPREADER TRACKED MINI DUMPER
