How long does it usually take for the transmission parts of a concrete power trowel to be replaced?

    The determination of the initial setting time of concrete and the entry timing of laser levelings are directly related to the quality, efficiency and cost of floor construction. Now I will provide you with a detailed analysis of these two core points. The "initial setting" of concrete is a physicochemical process, referring to a point in time when concrete begins to transform from a plastic state to a solid state, rather than a period of time. In terms of standards, the initial setting time refers to the period from the moment water is added and mixed until the concrete loses its fluidity and begins to set. Judgment methods and criteria This is the method stipulated in the national standard (GB/T 50080), which is usually carried out in the laboratory or at important construction sites. Method: Use a penetration resistance meter to penetrate the mortar screened out from the concrete mixture at a specified speed. When the penetration resistance reaches 3.5MPa, the corresponding time is the initial setting time. Advantages: The data is precise, objective and reliable. Disadvantages: It requires dedicated equipment, the operation is rather complicated, and it is not suitable for on-site rapid judgment. In actual construction, workers and technicians mainly rely on the following empirical methods to make judgments: Acupressure method (the most classic) : Apply a slight pressure to the concrete surface (usually with the thumb). The criterion for judgment: If, after pressing with a finger, a clear mark about 2-3 millimeters deep can be left on the surface, and the concrete is not sticky to the hand, with no obvious water marks or slurry overflow around, it is considered to have reached the initial setting state at this time. State analogy: It feels like moist clay or plasticine. Scratch method Make a mark on the concrete surface with a nail, a screwdriver or your finger. The criteria for judgment: The scratch marks are clear, the edges are neat, and the bottom of the scratch can maintain its shape and will not be quickly filled and healed by the slurry. Footprint method A person walks on the concrete and observes the footprints. Judgment criteria: The depth of the footprints should be around 5 to 10 millimeters, and there should be no obvious cracking or excessive bleeding around the footprints. Vibration rod insertion method Insert the small vibrator into the concrete and then pull it out. The criterion for judgment: The hole formed after being pulled out can basically remain in its original state and will not collapse and close rapidly. Important note: The on-site experience method requires construction personnel to have certain experience. The best practice is to make a comprehensive judgment by combining multiple methods and compare it with the estimated initial setting time provided by the laboratory. The entry timing of the laser leveling must be closely coordinated with the setting state of the concrete. Entering the market too early or too late can lead to serious problems. Question Sinking: The tracks or wheels of the leveling may get stuck in the concrete, causing deep ruts and disrupting the flatness. Bleeding: The equipment's rolling will force water and fine particles to float up, forming a surface slurry layer, which leads to dusting, sanding and insufficient strength in the later stage. The concrete cannot support the weight of the equipment, and the leveling head cannot be effectively leveled. Instead, it will disrupt the concrete. Condition description: The fingerprinting mark is very deep (>5mm), or the footprint is deeply sunken, and the scratch heals rapidly. Question Construction difficulties: The resistance of the leveling machine's movement is huge, the engine load is high, and it may even be unable to move. Poor surface quality: The flat head cannot effectively smooth out the already hardened surface, leaving marks of roughening and cracking, which damages the integrity of the surface. Poor joint: It cannot bond well with the subsequent poured concrete, resulting in cold joints. Ineffective compaction: The concrete has lost its plasticity, and the vibration of the leveled head cannot make it compact again. Condition description: There is almost no mark when pressed by finger, or a very strong force is needed to leave a shallow mark. The edge of the scratch will crack. The laser leveling should be put into operation when the concrete reaches the initial setting state, or slightly earlier than the initial setting (that is, close to the initial setting but not yet fully reached). Specific timing to grasp Core standard: When using the finger press method and the depth of the finger press impression is around 3-5mm, it is the best time for the leveling to enter the site. Operation process connection: The ideal construction process is: The preparatory processes: concrete spreading, initial vibration, and leveling with scraping bars have been completed. Wait for the right moment: Let the concrete stand naturally, bleed water and evaporate, gradually developing towards the initial setting state. During this period, workers can carry out manual operations such as edge and corner treatment. Judgment and entry: The construction supervisor continuously observes the condition of the concrete. Once it reaches the aforementioned "golden finger pressure standard", they immediately direct the laser leveling machine to enter the site. High-efficiency operation: The leveling, with its highly efficient functions of scraping, vibrating and leveling, can quickly complete large-scale operations when the concrete is still plastic but capable of supporting the weight of the equipment at its optimal state. Prediction is key: Before construction, it is necessary to understand the mix ratio of the concrete to be used and the estimated initial setting time measured in the laboratory (for example, at 20℃, the initial setting time of ordinary concrete is approximately 4 to 6 hours). This provides a time reference for on-site judgment. Environmental factors: Temperature, humidity and wind speed have a significant impact on the initial setting time. High temperature, strong wind and low humidity will shorten the initial setting time. It is necessary to prepare in advance to reduce the waiting time. Conversely, it will be extended. Personnel and Communication: A designated person (such as a foreman or technician) must be assigned to determine the initial setting time and maintain smooth communication with the equipment operator. It's better to arrive a little earlier than too late: When it's impossible to make an accurate judgment, entering the site a little earlier (the concrete is slightly softer) might just require dealing with the track indentations. However, if the entry is too late and the concrete becomes too hard, the quality problems caused are almost irreversible and the handling cost is extremely high. In short: When you "feel" the concrete with your hand and it feels like a moist and solid piece of clay, that's the best time for the laser leveling to shine. Accurately seizing this opportunity is the core technology for creating high-level and high-quality concrete floors. Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.

  When operating a concrete laser leveling, safety regulations and equipment operating procedures must be strictly followed to ensure construction quality, efficiency and personnel safety. The following are key operating precautions: – Check whether the laser transmitter and receiver are working properly, calibrate the laser signal accuracy (ensure that the horizontal error is ≤±1mm/3m), and avoid signal interference (such as strong light, obstacles) affecting the measurement accuracy. – Check the mechanical parts of the leveling: engine oil level, fuel volume, hydraulic system oil level and sealing, whether the scraper, vibrator, travel wheel and other parts are tightened, and ensure that there is no looseness or wear. – Debug the vibration frequency (generally 50-100Hz is recommended, adjusted according to the slump of concrete: reduce the frequency when the slump is large to prevent segregation; increase the frequency when the slump is small to enhance the density). – Clear obstacles (such as steel bars and stones) in the construction area, level the surface of the base, ensure that the laser transmitter is installed without obstruction, and the reference points (such as leveling points) are clearly marked. – Check the construction environment: It is not suitable to operate on rainy days, when the wind force is ≥ level 5 or the temperature is lower than 5℃ (special measures are required for winter construction) to avoid affecting the initial setting of concrete and the stability of the equipment. – Operators must undergo professional training, be familiar with the equipment operation process, and wear protective equipment such as safety helmets, non-slip shoes, and reflective vests. – Define the operation warning area and prohibit non-construction personnel from entering, especially avoid walking between the laser transmitter and the receiver to prevent signal obstruction. – The laser transmitter must be fixed on a stable bracket, away from vibration sources (such as pump trucks, vibrators), to avoid signal deviation due to jitter. – The receiver needs to be kept clean to avoid concrete splashing and covering the sensing area; if the signal is interrupted, the machine should be stopped and checked immediately, and recalibrated after removing the obstruction. – The concrete material should be evenly distributed, and the thickness should be slightly higher than the design elevation (generally 5-10cm higher) to avoid the scraper from not being able to operate normally due to insufficient material. – Maintain a uniform speed during operation (recommended speed 0.5-1.5m/min), and adjust according to the initial setting speed of the concrete: speed up when the initial setting is fast, and slow down when it is slow, to ensure that the leveling and vibration are completed simultaneously. – The insertion depth of the vibrating rod needs to cover the full thickness of the concrete layer (error ≤±5mm), and the adjacent vibration areas overlap by 10-15cm to prevent vibration leakage; 5-10cm needs to be reserved at the edge, and manual trimming should be carried out to avoid the equipment rolling the formwork. – When turning or adjusting the direction, you need to slow down and avoid sharp turns that may cause the scraper to deviate and affect the flatness; when working in narrow areas, leave enough turning space to prevent collision with the template or equipment. – When going up and down slopes (slope ≤ 5°), keep the machine body in the same direction as the slope, and do not drive horizontally to prevent rollover. – After the operation, immediately clean the residual concrete on the machine body (especially the scraper, vibrator, and laser receiver surface) to avoid damage to the components after solidification; when flushing with water, prevent water from entering the motor or laser system. – Check the wear of each component: if the rubber sleeve of the vibrator is damaged, it needs to be replaced in time, if the scraper is deformed, it needs to be corrected, and if the hydraulic pipe joint is leaking, it needs to be tightened. – Use a 2m ruler to check the flatness of the ground after leveling, the error should be ≤3mm; if local unevenness is found, it needs to be manually assisted before the initial setting of the concrete. – Record construction parameters (such as vibration frequency, driving speed) to provide reference for subsequent similar projects. – The equipment is parked in a dry and flat place, and the laser transmitter is stored separately in a moisture-proof box; if it is not used for a long time, the fuel and hydraulic oil need to be drained, and anti-rust oil should be applied to protect the metal parts. – If there is a sudden power outage or engine shutdown, the power supply of the equipment must be turned off immediately, and the unsolidified concrete must be manually cleaned to prevent the equipment from sticking to the ground. – If the laser signal is interfered with (such as a strong electromagnetic field nearby), you can switch to wired control mode (supported by some equipment) or change the transmitter position away from the interference source. Following the above precautions can not only ensure the flatness (up to laser-level accuracy) and density of the concrete floor, but also extend the service life of the equipment and reduce the risk of safety accidents. In actual operation, it is also necessary to flexibly adjust the parameters in combination with specific project requirements (such as floor strength grade and area size). Click the below to jump immediately!!! ARMOUR JOINT CONCRETE LEVELING MACHINE LIGHT TOWER POWER TROWEL SLIPFORM MACHINE STEEL FIBER TOPPING SPREADER TRACKED MINI DUMPER

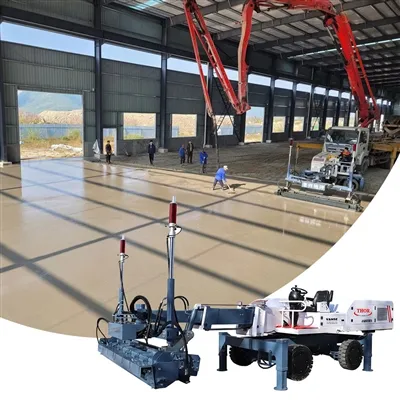

[MANUAL PK EQUIPMENT] WHAT'S SO GOOD ABOUT VANSE LASER LEVELING MACHINE? We have all seen the exquisiteness of manual production, but after all, it is aimed at a small number of people and cannot be mass-produced, and manual work will prolong the construction time. Some time ago, VANSE Machinery specially conducted a man-machine battle, asking 8 senior technicians to compete with the laser leveling machine, and the result is self-evident. Concrete laser leveling machine has many advantages compared with traditional construction. Take the YZ30-4E concrete laser leveling machine as an example. After years of research and development, Shandong VANSE Machinery is the first to launch a laser leveling machine in China, which directly solves these troubles of customers . Let me tell you about the five advantages of our concrete laser leveling machine compared with traditional construction: About 8 workers use Wanshi laser leveling machine to form a construction team, which can complete 300 square meters of paving work per hour, and a single shift can complete 3000-5000 square meters. In large-area floor construction, manual construction with traditional techniques requires a team of about 15 people, and the workload of a single shift is within 700 square meters. The original labor needs to pay the formwork in advance, which wastes labor, delays the construction period, and cannot effectively return funds. Using VANSE concrete laser leveling machine, 3000-5000 square meters can be completed in one day. The original artificial formwork is supported in advance, the construction effect is low, and the construction period is prolonged. The working principle of VANSE Concrete Laser Leveling Machine is that the laser transmitter generates rotating laser, the laser receiver on the leveling machine receives the signal, and the laser measurement and control system analyzes it, and the deviation will be fed back to the sensitive computer control system on the leveling machine. The left and right electric push rods will adjust the height of the scraper to ensure leveling accuracy and high leveling. The technological principle of VANSE Concrete Laser Leveling Machine is to rely on gasoline generators to generate electricity, and use electric power to drive the laser measurement and control system, computer control system and servo drive system to use the leveling head to complete the leveling work. Laser leveling machine leveling does not need to pull the control line, and also There is no need for side templates to control the ground elevation, but it is controlled in real time by the laser measurement and control system on the leveling machine. As long as the laser transmitter is not disturbed, no matter where the leveling machine moves, the overall elevation of the paved ground can be ensured Not affected.   Our VANSE laser leveling machine uses a high-frequency vibrator of 4,000 times per minute. The uniform high-frequency vibration of the vibrating plate of the leveling head makes the concrete floor dense and can avoid ground cracks caused by stress concentration caused by deformation. It can reduce cracks and effectively solve the problems of hollowing, shelling, cracking and inequality on the ground.
