Concrete laser leveling machine construction technology

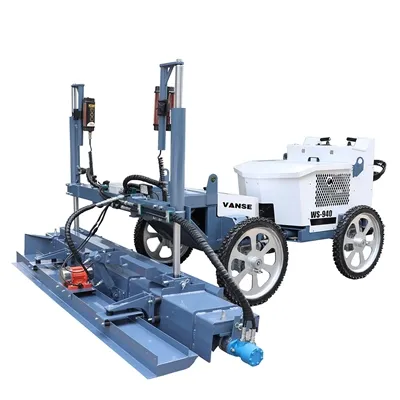

The principle of the infrared laser concrete leveler is mainly a special floor equipment that uses laser guidance to pave, level and vibrate concrete. Here's how it works: Set the laser transmitter to the required height, then place the handheld receiver pole on the elevation reference, adjust the height of the pole according to the laser emitted by the transmitter, and lock the corresponding height. Transfer height measurements from the handheld receiver pole directly to the laser leveling handpiece laser receiver pole. It relies on a hydraulic (electric) driven leveling head, working with the laser system and computer control system to complete the leveling work while automatically leveling. The leveling head is equipped with an integrated scraper, vibrator and leveling plate, which integrates all leveling, leveling, vibrating, compacting and paddle lifting work into one and completes it at one time. The computer control system automatically adjusts the height 10 times per second in real time, and the balanced designed vibrator has a vibration frequency of 4,000 times per minute. Infrared laser concrete leveling machine can greatly reduce unnecessary construction joints, speed up construction, save labor, and improve construction quality.

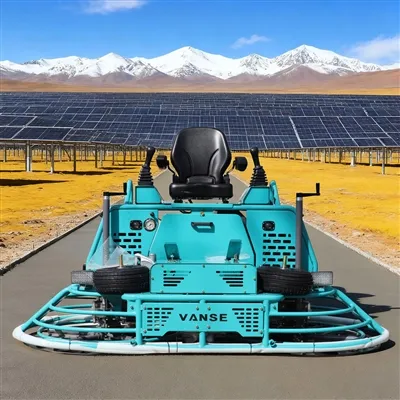

    Unexplained stalling of a power trowel is a common but headache-inducing problem. To conduct a systematic investigation, one can follow the principle of "from simple to complex and from outside to inside". The following is a detailed investigation of multiple possibilities. You can start checking from the simplest and most likely cause: Possibility: The fuel has expired and deteriorated (gelatinized), water has been mixed in, the fuel grade is incorrect or the fuel quality is too poor. Investigation and resolution: Check the color and smell of the fuel. Fresh gasoline is transparent, while spoiled gasoline will turn yellow or have a pungent smell. Immediately empty the old fuel tank completely and then refill it with clean, fresh unleaded gasoline of grade 92 or above. It is recommended that the fuel tank not be filled with oil for a long time. Possibility: The vent hole of the fuel tank cap is blocked, causing a vacuum to form inside the fuel tank and preventing the fuel from flowing down. Troubleshooting and resolution: When the engine is turned off, immediately open the fuel tank cap to listen for a "sizzling" sound of air intake. Or next time when the engine is turned off, try loosening the fuel tank cap to see if it returns to normal. Clean the vent of the fuel tank cap or replace the fuel tank cap. Possibility: The main fuel gauge hole, idle fuel gauge hole and other parts inside the carburetor are blocked by impurities and gum, resulting in poor fuel supply. Troubleshooting and resolution: Check if the fuel filter (if any) is dirty. Try repeatedly pressing the "oil bubble" on the carburetor (if any). Cleaning the carburetor is the most efficient solution. The carburetor needs to be removed and all oil lines and measuring holes thoroughly rinsed with carburetor cleaner. For old machines, the cost of directly replacing a new carburetor is not high either. Possibility: The air filter was severely clogged with dust and cement powder, causing the engine to "suffocate", resulting in insufficient air intake and stalling. Troubleshooting and resolution: Remove the air filter and observe if it is so dirty that the original color cannot be seen clearly. Clean or replace the air filter. On construction sites with a lot of dust, air filters should be cleaned more frequently (after each shift). When cleaning, use compressed air to blow from the inside out. Possibilities: Severe carbon deposits on the spark plugs, improper electrode gap, cracked porcelain body or mismatched model. Troubleshooting and resolution: Remove the spark plug and check the condition of its top. The normal one should be brown or light gray. If there is black carbon deposit, it indicates incomplete combustion. Clean the carbon deposits, adjust the gap with a feeler gauge to the requirements of the manual (usually 0.6-0.7mm), or directly replace it with a new spark plug of the same model. Possibility: The flameout wire (usually a thin wire) connected to the spark plug has poor contact, short circuit or open circuit, causing the spark plug to accidentally shut off. Troubleshooting and resolution: Check whether the connection of the flameout wire is loose and whether the insulation is damaged. You can try temporarily disconnecting the flameout wire (to keep the switch in operation), and then pull the rope to start it (pay attention to safety and ensure the machine is stable). If it doesn't flameout, the problem lies in the flameout switch or the circuit. Reconnect or replace the flameout wire/switch. Possibility: It is relatively rare, but the ignition coil malfunctions internally after the engine heats up, causing the spark to weaken or disappear. Troubleshooting and resolution: Usually, the machine starts up normally when cold, but suddenly shuts down after working for a period of time due to overheating, and it is difficult to restart immediately. The machine can be started again after it has cooled down. Professional maintenance personnel are required to test the resistance of the ignition coil. After confirmation, it should be replaced. Possibility: The radiator is clogged with cement or oil stains, resulting in poor engine cooling. High temperatures can cause expansion, cylinder seizure or trigger thermal protection, leading to engine stalling. Troubleshooting and resolution: Check whether the heat sinks around the cylinder are clean. Thoroughly clean the blockages on the heat sink. At the same time, check the oil level and quality to ensure normal lubrication. Possibility: After long-term use, the valve clearance changes (usually becomes smaller), causing the valves to not close tightly when the engine is hot, resulting in a decrease in the compression ratio and stalling. Troubleshooting and resolution: The cold start and low-speed operation are normal, but the engine stalls as soon as the accelerator is increased or after working for a period of time. Professional maintenance workers need to use a feeler gauge to check and adjust the intake and exhaust valve clearances to the specified values. Step 1: Check the fuel -> Change to new oil! Step 2: Check the air filter -> Clean or replace! Step 3: Check the spark plugs -> Clean/Adjust/replace! Step 4: Check the fuel tank cap -> Try loosening it! Step 5: Clean the carburetor -> This is the most likely cause! If none of the above steps can solve the problem, then the issue might be more difficult to handle (such as ignition coil or valve problems). It is recommended to contact professional maintenance services.   Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.

    In tight spaces where a massive laser leveling can't maneuver, vibratory leveling (often via a vibrating truss or power leveling) acts as the "closer." While the laser machine provides the high-tech elevation data, vibratory tools ensure the concrete is consolidated and smooth in the corners and edges the big machine can't reach. Here is how to effectively integrate the two for a seamless, flat finish. Before the vibratory equipment touches the wet concrete, the laser leveling machine must establish the grade. Benchmark Sync: Ensure your handheld laser receiver (used for the vibratory leveling) is calibrated to the exact same benchmark as the laser leveling machine. Even a 3mm discrepancy will create a visible "lip" where the two areas meet. The Overlap Zone: Always have the laser machine pass slightly into the "small area" or perimeter. This creates a leveled "pad" of concrete that your vibratory leveling can use as a guide. In small areas, the vibratory leveling needs physical points of reference since it lacks the automatic hydraulic adjustments of the laser machine. Wet leveling: Use the laser machine to strike off a strip of concrete. Use this leveled strip as one "rail" for your vibratory leveling to ride on. Handheld Laser Receivers: Mount a receiver to the pole of your vibratory leveling. As you pull the leveling, the "beep" or visual indicator tells you if you are pushing too hard (too low) or riding too high. Vibration is key for small areas because concrete near forms and corners tends to "honeycomb" (trap air). The Leading Edge: Keep a small "roll" of concrete (about about 2cm to 5cm high) in front of the vibratory blade. This head of pressure ensures that as the vibration liquefies the concrete, it fills all voids and matches the height set by the laser. Speed Control: Move the vibratory leveling at a slow, consistent pace-roughly 1m per minute. Moving too fast leaves "waves"; moving too slow sinks the aggregate too deep, leaving a weak, cream-heavy surface. Task Laser Machine Role Vibratory leveling Role Main Slab Handles 90% of the volume and leveling. Follows behind to "knit" edges. Edges/Columns Cannot reach; stays 0.5m away. Primary tool for leveling and consolidation. Grade Check Automatic/Constant. Manual check via handheld laser rod. Finish High-speed strike-off. Final "cream" pull for easy power troweling. In small areas, it's tempting to hover the vibratory leveling in one spot to "make it flat." Don't. This causes the heavy aggregate to sink and the water/laitance to rise, which leads to surface scaling later. If the grade is wrong, add or remove concrete manually, then做 one final pass with the vibratory tool.   Would you like me to find a specific checklist for calibrating handheld laser receivers to match your main laser leveling?  Contact us NOW   Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.
