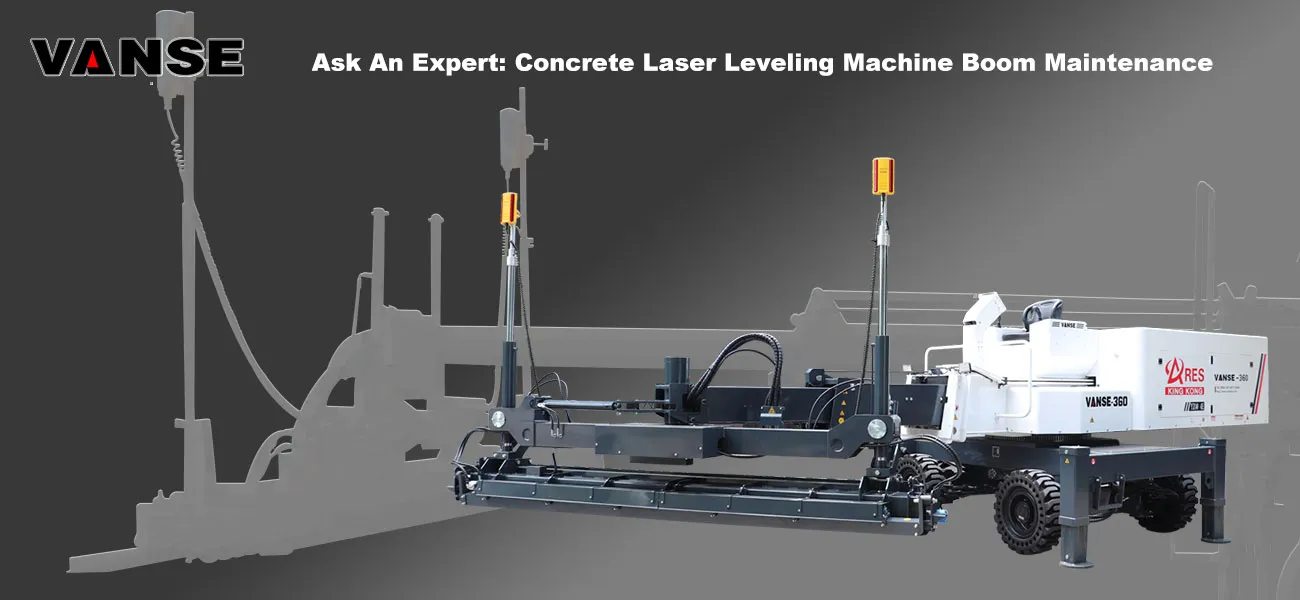

This is an excellent, specific question. Vanse offers a range of concrete laser leveling machines with telescopic booms (like the YZ40-4E), and their maintenance philosophy is critical for machine longevity and leveling accuracy.1
Based on the general requirements for all laser levelings and the guidelines provided by Vanse, here is an expert summary focusing specifically on the telescopic boom.
🏗️ Vanse Telescopic Boom Maintenance: Key Focus Areas
Vanse emphasizes comprehensive maintenance, including regular checks on lubrication points and the overall integrity of the machine.2 The key to maintaining a Vanse telescopic boom is managing friction, eliminating "slop," and aggressively fighting concrete abrasion.
1. Lubrication: Following the Manufacturer's Chart
While some specialized brands (like Ligchine) advise strictly against grease on the boom tubes, Vanse machines often follow a more traditional heavy-duty equipment approach for their structural moving parts, requiring you to locate and service specific grease points.
Zerk Fittings:Vanse machines have designated lubrication points (zerk fittings) on structural pivots, the leveling head, and potentially internal boom components like rollers or cylinders. You must consult your specificVanse operation or maintenance manualfor the location and frequency of these points. Expert Tip: When greasing any part on the boom near the telescoping tubes, be extremely careful not to over-grease.Wipe away all excess greaseimmediately, as it will attract concrete dust, forming an abrasive paste that damages the boom wear pads.Cylinder piston rod: Check for any scratches, bends or continuous leakage. Chain Lubrication:If your model uses an internal chain drive for boom extension, ensure the chain is regularly lubricated with the specified chain oil or Open Gear Lubricant (OGL) and that the tension is checked often.
2. Wear Pad Inspection and Adjustment
The most critical maintenance for your FF/FL numbers is ensuring the telescopic boom sections are supported properly to prevent lateral or vertical movement ("slop").
The Check:Fully extend the boom and manually attempt to wiggle the end section up/down and side-to-side. There should be almostzero discernible play.Any movement compromises the accuracy of your leveling head.
The Process:Wear pads (shims) and rollers guide the boom. As they wear, the clearance increases.
Regularly inspect the pads for deep scoring or embedding of concrete grit. Grit requires immediate cleaning or pad replacement.
Refer to your Vanse manual for the specific procedure to add shims or adjust the tensioners/rollers. Maintaining the correct clearance is essential.
3. Immediate Post-Job Cleaning (The Ultimate Wear Prevention)
Vanse guidelines stress the importance of cleaning, and for the boom, this is the most effective preventative maintenance.
Concrete Slurry:Use a power washer to clean off all concrete slurry and dust immediately after the pour. Hardened concrete on the boom tubes and the leveling head acts as abrasive sandpaper on the wear pads every time the boom moves.
Hydraulic Rods:Pay special attention to the hydraulic cylinder rods that move the boom and leveling head. Ensure they are clean before retraction. Dust or concrete on the rod will damage the seals inside the cylinder, leading to premature hydraulic failure.
Pressure maintenance: For the lifting cylinder, observe whether there is obvious "sinking" (i.e., internal leakage) after it is lifted.
Summary Checklist for Vanse Boom
Maintenance Task
Frequency
Purpose
Clean Boom Tubes
After Every Use
Prevent abrasive wear (scoring) and remove weight buildup.
Grease Bearings/Pivots
After Every Use / Daily
Purge concrete slurry from high-speed bearings (e.g., auger, vibrator) and lubricate structural pins.
Inspect Wear Pads/Rollers
Weekly / Monthly
Check for slop/wobble. Adjust clearance to maintain optimal tightness.
Check Hydraulic Hoses
Daily
Inspect for rubbing, chafing, or kinks, especially where they track inside the boom.
Note:The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.
