What special measures or methods need to be taken to deal with special ground conditions?

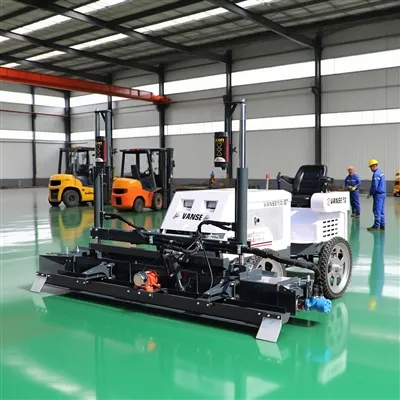

  – Laser leveling machines have a high degree of automation and can greatly reduce manpower input compared to traditional manual leveling methods. In municipal engineering, such as concrete leveling operations on roads and squares, the use of laser leveling machines can complete large-scale construction tasks with fewer operators. For example, traditional manual leveling may require 10-15 workers, while the use of laser leveling machines may only require 3-5 operators, including machine operators, auxiliary personnel, etc. Calculated based on the labor cost per person per day, a large amount of labor costs can be saved in projects with longer construction periods. – Moreover, the operation of laser leveling machines is relatively simple, and personnel who have undergone short-term training can start working, reducing dependence on senior technical workers and indirectly saving labor costs. Because the wages of senior technical workers are usually much higher than those of ordinary workers. – Laser leveling machines can accurately control the paving thickness and flatness of concrete. In municipal road construction, it can accurately lay concrete according to design requirements to avoid excessive laying or uneven thickness of concrete due to imprecise manual operation. For example, manual leveling may cause the concrete thickness error to reach ±10 – 15mm due to lack of experience or improper operation, while the laser leveling machine can control the error within ±3 – 5mm. Such precise control can effectively reduce the waste of concrete, because concrete materials are more expensive in municipal engineering, and reducing waste means reducing material costs. – At the same time, due to the high flatness of the ground leveled by the laser leveling machine, the amount of materials required for subsequent construction (such as paving asphalt, installing curbstones, etc.) is also more accurate, and there will be no additional material consumption due to uneven ground, thereby further reducing material costs. – The laser leveling machine has high working efficiency and can quickly complete large-area leveling tasks. Taking the construction of the municipal square as an example, traditional manual leveling may take several days or even weeks to complete the leveling of a large square, while the laser leveling machine can complete the same workload in a shorter time. For example, a 1,000-square-meter square may take 5 to 7 days to be leveled manually, while a laser leveler may only take 2 to 3 days. – Shortening the construction period can bring many economic benefits. On the one hand, it can enable the project to be put into use ahead of schedule. For example, the early opening of municipal roads can relieve traffic pressure, bring social benefits, and may also obtain additional economic benefits due to early operation; on the other hand, shortening the construction period can reduce the indirect costs of the project, such as construction site management costs, equipment rental costs, etc., which will increase accordingly when the construction period is extended. – The laser leveler is relatively less affected by external factors such as weather, and can maintain stable working efficiency as long as it is under suitable construction conditions. In municipal engineering, especially some key projects with construction period requirements, stable project progress is very important. For example, in areas with more rainy seasons, laser levelers can quickly resume construction in a short time after the rain stops, while manual leveling may delay construction due to factors such as wet ground, thus affecting the progress of the entire project. Stable project progress helps to arrange subsequent construction procedures reasonably, avoid the chain reaction of the entire project caused by the delay of a certain process, and reduce the economic losses that may be caused by project delays. – The ground leveled by the laser leveler has high flatness and good quality. In municipal road projects, a flat road surface can reduce the bumps when vehicles are driving and reduce the probability of cracks, potholes and other diseases caused by uneven force on the road surface. For example, under normal use, the time when road diseases appear on roads treated by laser levelers may be 2-3 years later than that on roads leveled by traditional manual leveling. – Reducing later maintenance can not only save maintenance materials and labor costs, but also avoid indirect economic losses such as traffic congestion caused by road maintenance. For municipal engineering, some lanes may need to be closed during road maintenance, which will affect traffic flow, reduce vehicle traffic efficiency, and generate economic costs. – High-quality leveling effects enhance the overall stability of municipal engineering structures (such as roads, squares, etc.), allowing them to withstand greater loads and longer use. Taking the concrete bridge deck construction of municipal bridges as an example, the use of laser leveling machines can make the bridge deck flatness reach a higher standard. Within the design service life of the bridge, it can better resist the impact of repeated vehicle loads and reduce damage to the bridge deck structure caused by poor flatness, thereby extending the service life of the bridge. In the long run, this will undoubtedly bring huge economic benefits.

During the construction process of concrete laser leveling, quality inspection and control are crucial links. This involves comprehensive and effective supervision and management of all aspects before, during and after construction to ensure the stability and reliability of the final project quality. The following are the specific contents of quality inspection and control during the construction process of concrete laser leveling: •◆• Quality inspection and control in the pre-construction preparation stage 1. Material inspection: Inspect the concrete raw materials to be used, including but not limited to cement, aggregates, additives, etc., to ensure that their quality meets the design and specification requirements. Unqualified materials must be replaced or disposed of in a timely manner. 2. Equipment inspection: Conduct a detailed inspection of the concrete laser leveling and its ancillary equipment, including equipment status, accuracy calibration, safety devices, etc. Ensure that equipment is operating in good working condition and reduce quality hazards caused by equipment problems during construction. 3. Construction plan review: Conduc t a detailed review of the construction plan submitted by the construction unit, focusing on the construction sequence, construction parameters, process flow, etc., to ensure the scientificity and feasibility of the plan. •◆• Quality inspection and control during construction 1. Real-time monitoring of concrete mix ratio: During the construction process, the concrete mix ratio must be monitored in real time to ensure that the working performance of the concrete meets the requirements. The mix ratio of problems should be adjusted promptly to prevent quality problems caused by unstable concrete performance. 2. Laser leveling accuracy control: Use laser positioning technology to monitor the leveling accuracy in real time. By receiving laser signals, it is ensured that the leveling head can operate according to the designed elevation and flatness. For deviations that occur, leveling parameters or equipment status must be adjusted in time to ensure leveling accuracy. 3. Control of construction temperature and humidity: The quality of concrete construction is greatly affected by temperature and humidity, so the temperature and temperature during the construction process must be strictly controlled. In high or low temperature environments, corresponding measures should be taken, such as adjusting construction time, using insulation materials, etc., to ensure the normal hardening and strength development of concrete. 4. Treatment of construction joints: Construction joints generated during construction must be handled in strict accordance with the specifications. Ensure that construction joints are clean, dry and dense to avoid quality problems such as cracks or leakage. 5. Regular quality inspections: During the construction process, regular quality inspections must be carried out, including the strength, flatness, elevation and other indicators of the concrete. Problems discovered must be rectified and repaired in a timely manner to ensure stable and controllable construction quality. •◆• Post-construction quality inspection and control 1. Maintenance and management: After the concrete construction is completed, appropriate maintenance and management must be carried out, including keeping the concrete surface moist and preventing the effects of exposure and cold weather. Through reasonable maintenance measures, ensure that the concrete reaches the design strength and durability requirements. 2. Final quality acceptance; after the construction is completed, the final quality acceptance must be organized. Conduct a comprehensive inspection of various indicators of concrete projects in accordance with relevant standards and specifications. For parts that do not meet the requirements, rectification and processing must be carried out in a timely manner to ensure the qualification and reliability of the overall project quality. •◆• Records and reports 1. Quality records: During the construction process, the results of various quality inspections and controls must be recorded in detail. Including the quality test results of raw materials, equipment operating status and maintenance records, quality problems and handling measures during the construction process, etc. These records can be used as the basis for quality traceability and provide important reference for subsequent quality management and improvement. 2. Quality report: Prepare quality reports regularly to summarize and analyze the quality situation during the construction process. The report must include the results of quality inspections, the handling of quality problems, the implementation effects of quality improvement measures, etc. Through quality reports, problems can be discovered and solved in a timely manner, promoting the continuous improvement and improvement of construction quality. To sum up, quality inspection and control during the construction process of concrete laser leveling is a comprehensive and complex task. The construction unit and the supervision unit need to work together to maintain a high degree of vigilance and rigorous attitude from pre-construction preparation to post-construction maintenance management. Through effective quality inspection and control measures, we ensure the quality and stability of concrete projects and provide a strong guarantee for the smooth progress of project construction. At the same time, with the continuous advancement of technology and changing construction needs, new methods and means need to be continuously explored to further improve the quality level of concrete laser leveling construction.

  Concrete pavement occupies a vital position in modern transportation infrastructure, and its quality is directly related to the service life, driving safety and comfort of the road. In order to ensure the quality of concrete pavement, comprehensive and scientific quality inspection is indispensable. With the continuous advancement of science and technology, advanced equipment such as concrete laser leveling machine is increasingly widely used in concrete construction, which also puts forward higher requirements for quality inspection methods. The following will introduce the quality inspection method for concrete pavement in detail. As the key cementing material of concrete, the quality of cement has a profound impact on the performance of concrete. When testing cement, the following aspects should be paid attention to: Strength: According to relevant standards, the 3-day and 28-day compressive and flexural strength of cement is measured through cement mortar strength test to ensure that it meets the design requirements. For example, for 42.5-grade ordinary silicate cement commonly used in road engineering, the 28-day compressive strength should not be less than 42.5MPa. Set time: Use a setting time meter to detect the initial and final setting time of cement. Generally speaking, the initial setting time of ordinary Portland cement shall not be earlier than 45 minutes, and the final setting time shall not be later than 10 hours, so as to ensure that the concrete has sufficient operation time during the construction process and can harden in time. Stability: The boiling method is used to test the stability of cement to ensure that the volume change of cement during the hardening process is uniform, without abnormal phenomena such as cracking, so as to avoid quality problems such as cracks in the concrete pavement due to poor cement stability. Aggregates include coarse aggregates (such as crushed stone and pebbles) and fine aggregates (such as natural sand and machine-made sand). The key points of quality inspection are as follows: Particle grading: The particle grading of aggregates is determined by screening tests to ensure that it meets the requirements of relevant standards. Good particle grading can make the aggregates compactly stacked in concrete, reduce the amount of cement used, and improve the strength and durability of concrete. For example, the maximum particle size of coarse aggregates is usually no more than 1/3 of the thickness of the concrete slab, and should meet the requirements of continuous grading. Mud content and mud block content: Excessive mud and mud block content will reduce the bonding force between aggregate and cement paste, affecting the strength and durability of concrete. The mud and mud block content of aggregates are determined by the water washing method. Generally, the mud content of coarse aggregates is required to be no more than 1%, and the mud block content is no more than 0.5%; the mud content of fine aggregates is required to be no more than 3%, and the mud block content is no more than 1%. Robustness: The sodium sulfate solution immersion method is used to test the robustness of aggregates and evaluate their durability under the influence of climate and environmental changes. Aggregates with good robustness can effectively resist the erosion of external factors and extend the service life of concrete pavements. Admixtures can significantly improve the performance of concrete and need to be strictly tested before use: Water reduction rate: The water reduction rate is an important indicator for measuring the performance of water reducers. By comparing the water consumption of concrete mixtures with and without admixtures, the water reduction rate is calculated to ensure that it meets the requirements of the product manual. Generally, the water reduction rate of high-efficiency water reducers should not be less than 15%. Setting time difference: Detect the effect of admixtures on the setting time of concrete. The initial setting time difference and the final setting time difference should meet the construction requirements to avoid abnormal setting time of concrete due to admixtures, which will affect the construction progress and quality. Compressive strength ratio: Determine the compressive strength ratio of concrete with admixtures and benchmark concrete at different ages, evaluate the effect of admixtures on the strength development of concrete, and ensure that admixtures will not reduce the final strength of concrete. The water used for concrete mixing and curing should meet relevant standards and should not contain harmful substances that affect the performance of concrete. The test items include pH value, insoluble matter, soluble matter, chloride, sulfate, etc. For example, it is generally required that the pH value of water used for concrete is not less than 4, and the chloride content (measured in Cl⁻) does not exceed 500mg/L (reinforced concrete) or 1000mg/L (plain concrete). Slump is an important indicator for measuring the fluidity of concrete mixture. At the construction site, a slump cone is used for testing. The concrete mixture is loaded into the slump cone in three layers, and each layer is rammed 25 times. Then the slump cone is lifted vertically to measure the height difference between the cone height and the highest point of the concrete specimen after collapse, which is the slump value. According to the construction requirements, the appropriate slump can ensure the uniformity and density of the concrete during the paving process. For example, when concrete laser leveling machine is used for concrete paving, the slump is generally controlled at 30-50mm to ensure that the concrete can be paved smoothly and can achieve good flatness under the action of the laser leveling machine. For dry and hard concrete mixtures, a Vebe consistency meter is required to detect its Vebe consistency. This indicator reflects the consistency of the concrete mixture under vibration. During the test, the concrete mixture is loaded into the slump cone, and then the slump cone is placed in the container of the Vebe consistency meter. After lifting the slump cone, the vibration table is turned on and the stopwatch is started at the same time. When the concrete surface changes from uneven to flat, the stopwatch is stopped. The recorded time is the Vebe consistency value. The Vebe consistency value should meet the design and construction requirements. Generally, the Vebe consistency of dry hard concrete is between 10-30s. The air content has an important influence on the frost resistance and durability of concrete. The air content of the concrete mixture is tested using an air content meter. The appropriate amount of air content can form tiny bubbles inside the concrete, relieve the stress caused by the freeze-thaw cycle, and improve the frost resistance of the concrete. Generally, the air content of the concrete is required to be controlled between 3% and 5%, and the specific value is determined according to the environment and design requirements of the project. The temperature of the concrete mixture has a significant impact on its performance and construction quality. In a high temperature environment, if the temperature of the concrete mixture is too high, it will accelerate the cement hydration reaction, resulting in too fast slump loss and even false setting; in a low temperature environment, if the temperature of the concrete mixture is too low, it will delay the cement hydration reaction and affect the strength growth of the concrete. Use a thermometer to measure the temperature of the concrete mixture at the mixing site and the pouring site. According to the ambient temperature and construction requirements, take corresponding temperature control measures, such as cooling the raw materials in high temperatures in summer and heating and insulating the concrete in low temperatures in winter. Flatness: The flatness of the base directly affects the thickness uniformity and driving comfort of the concrete pavement. Use a 3m ruler or a flatness meter to detect the flatness of the base surface, and the allowable deviation is generally not more than 10mm. For parts that do not meet the flatness requirements, they should be trimmed to ensure that the base surface is flat, providing a good foundation for the construction of the concrete pavement. Compactness: Insufficient compaction of the base will cause road subsidence and other diseases. The compaction degree of the base layer is tested by sand filling method, water filling method or ring knife method to ensure that it meets the design requirements. For example, for lime-stabilized soil base layer, the compaction degree is generally required to be not less than 95%. Strength: The strength of the base layer is the key to ensuring the bearing capacity of the pavement structure. The strength of the base layer is tested by making specimens for unconfined compressive strength test through on-site core sampling. The strength of the base layer should meet the design requirements to ensure that it can withstand the vehicle load transmitted from the concrete pavement. Casting thickness: During the concrete pouring process, the pouring thickness of the concrete is regularly tested using a steel chisel or other measuring tools to ensure that it meets the design requirements. The thickness deviation of the concrete slab is generally controlled within the range of +10mm, -5mm. Insufficient thickness will affect the bearing capacity and service life of the pavement, while excessive thickness will cause material waste. Vibration quality: Vibration is a key link to ensure the compactness of concrete. The vibration effect can be judged by observing the surface condition of the concrete, such as whether there is slurry overflow and bubble discharge. At the same time, an inserted vibrator can be used to detect the density of the concrete inside to ensure uniform vibration without missing vibration or over-vibration. For concrete pavements constructed with a concrete laser leveling machine, it is necessary to ensure that the concrete has been initially vibrated and compacted before the laser leveling machine is operated to ensure that the laser leveling machine can play a better role and achieve high-precision flatness control. Rebar arrangement (if any): For reinforced concrete pavements, check whether the type, specification, quantity, spacing, position of the steel bars, and the connection method and anchorage length of the steel bars meet the design requirements. Improper steel bar arrangement will affect the structural performance of the concrete pavement, such as bearing capacity and crack resistance. At the construction site, a steel ruler is used to measure the spacing and position of the steel bars, observe the connection and anchorage of the steel bars, and ensure that the quality of the steel bar project meets the standards. 3m ruler method: This is a commonly used road surface flatness detection method. Place a 3m ruler along the longitudinal direction of the road surface and measure the maximum gap between the ruler and the road surface to assess the road surface flatness. Measure 2 locations every 200m, and measure 10 feet continuously at each location. Judge whether the road surface flatness meets the requirements based on the gap value. Generally, the allowable deviation is no more than 5mm. Continuous flatness meter method: This method can continuously measure the road surface flatness, with high detection efficiency and more accurate results. The continuous flatness meter travels along the road surface, collects the elevation data of the road surface through sensors, and calculates the flatness index (such as the International Roughness Index IRI). After the concrete pavement construction is completed, this method can be used to conduct a comprehensive inspection of the road surface to provide detailed data for road surface quality assessment. For roads constructed with concrete laser leveling machines, the continuous flatness meter test results can intuitively reflect the construction effect of the laser leveling machine. The IRI value should generally be controlled within a certain range, such as no more than 2.0m/km, to ensure that the road surface has good driving comfort. Vehicle-mounted bump accumulation meter method: The bumpiness of the road surface is measured by the bumpiness of the vehicle when it is driving on the road. The vertical vibration acceleration of the vehicle is measured by a sensor installed on the vehicle, and the bump accumulation value (VBI) is converted. This method has a fast detection speed and is suitable for rapid detection of large-area road surface flatness. When conducting quality inspection on concrete pavement, the road surface flatness condition can be evaluated according to the VBI value, and verified with other detection methods to fully grasp the road surface quality. Structural depth: The structural depth reflects the macro texture depth of the road surface and has an important impact on the road surface skid resistance. The road surface structural depth is detected by sand spreading method or laser structural depth meter. The sand spreading method is to spread a certain amount of standard sand on the road surface, flatten the sand into a circle with a push plate, measure the coverage area of ​​the sand, and calculate the structural depth value. The laser structural depth meter uses laser scanning technology to quickly measure the road surface structural depth. Generally, the structural depth of cement concrete pavement is required to be between 0.7 and 1.1mm to ensure that the road surface still has sufficient skid resistance under adverse conditions such as moisture. Friction coefficient: The friction coefficient is a direct indicator of the road surface skid resistance. Use a pendulum friction meter or a dynamic friction coefficient tester to detect the road surface friction coefficient. The pendulum friction meter measures the friction force of the pendulum sliding on the road surface when it swings freely from a certain height, and calculates the friction coefficient of the road surface (BPN value). The dynamic friction coefficient tester simulates the friction between the tire and the road surface during vehicle driving and measures the friction coefficient in real time. According to different road grades and usage requirements, the road friction coefficient should reach the corresponding standard value. For example, the BPN value of general urban roads should not be less than 45 to ensure driving safety. Core drilling method: The core drilling method is the most direct and reliable method to detect the strength of concrete pavement. After the concrete pavement is hardened, a core drill is used to drill a core sample on the pavement. The diameter of the core sample is generally not less than 100mm and not less than 3 times the maximum particle size of the aggregate. After the core sample is processed into a standard test piece, a compressive strength test is carried out, and the strength of the concrete pavement is evaluated based on the test results. The core drilling position should be representative, and at least 1 core sample should be drilled every 3km for each lane. The compressive strength of the core sample should meet the design requirements. For example, for a concrete pavement with a design strength grade of C30, the average compressive strength of the core sample should not be less than 30MPa, and the minimum value should not be less than 25.5MPa. Rebound method: The rebound method is a non-destructive detection method. The rebound value of the concrete surface is detected by a rebound hammer. The strength of the concrete is estimated based on the correlation between the rebound value and the concrete strength. When using the rebound method, the measurement areas should be evenly arranged on the pavement. The area of ​​each measurement area should not be greater than 0.04m², and the number of measurement areas should not be less than 10. At the same time, the influence of the carbonization depth of concrete on the rebound value should be considered and necessary corrections should be made. The detection results of the rebound method have certain limitations. It is generally used as an auxiliary detection method of the core drilling method for the preliminary evaluation of the strength of large-area concrete pavements. Ultrasonic rebound comprehensive method: This method combines the advantages of the ultrasonic method and the rebound method. By measuring the ultrasonic sound velocity and rebound value of concrete, the strength of concrete is comprehensively estimated. Ultrasonic sound velocity reflects the density and uniformity of concrete, and the rebound value reflects the hardness of concrete surface. The combination of the two can more accurately evaluate the strength of concrete. The ultrasonic rebound comprehensive method is suitable for batch testing of concrete pavement strength. The accuracy of the test results is relatively high, but the operation is relatively complex and requires professional testing equipment and technicians. Core drilling method: The drilled core sample can not only be used for strength testing, but also can intuitively measure the thickness of the concrete pavement. Use a caliper to measure the thickness of the core sample with an accuracy of 0.1mm. Drill sample cores at 2 locations on the left and right within every 100m of pavement paving width to test the thickness of the board. The pavement thickness deviation should meet the design requirements, and the general allowable deviation is +10mm, -5mm. Radar detection method: Use ground penetrating radar to emit high-frequency electromagnetic waves to the pavement, and detect the thickness of the concrete pavement based on the reflection characteristics of the electromagnetic waves at the interface of different media (such as concrete and base). The radar detection method has the advantages of fast, non-destructive, and continuous detection, and can obtain thickness data of large-area pavements in a short time. However, this method requires professional radar equipment and data analysis software, and the detection results are greatly affected by factors such as the material properties and water content of the pavement structure layer, and calibration and verification are required before use. Appearance inspection: Observe the surface of the concrete pavement with the naked eye to check whether there are cracks. Record the location, direction, length, width and other information of the cracks. For cracks with smaller width, a crack observation instrument can be used to measure and accurately measure the crack width. Generally, cracks with a width of no more than 0.2mm are considered to be small cracks and can be closed on the surface; cracks with a width of more than 0.2mm need to analyze the cause and take corresponding repair measures, such as grouting repair. Non-destructive testing technology: In addition to appearance inspection, non-destructive testing equipment such as ultrasonic flaw detectors and infrared thermal imagers can also be used to detect whether there are cracks inside the concrete pavement. The ultrasonic flaw detector transmits and receives ultrasonic waves, and judges whether there are defects and cracks inside according to the reflection and refraction characteristics of ultrasonic waves when propagating inside the concrete. The infrared thermal imager uses the difference in temperature distribution on the surface of the object to detect internal defects. When there are cracks inside the concrete, a corresponding temperature abnormality area will be formed on the surface, which can be intuitively displayed through infrared thermal images. Non-destructive testing technology can detect hidden cracks inside the pavement, provide a basis for timely prevention and control measures, and ensure the integrity and safety of the pavement structure.
