Repair And Maintenance Methods Of Concrete Laser Leveling Machine (2)

    Environmental factors affect the performance of concrete laser levelings across multiple dimensions, including equipment operation, construction accuracy, efficiency, and service life. Different environmental conditions can indirectly or directly cause performance fluctuations by affecting the equipment's mechanical system, laser positioning system, and concrete working conditions. The following details the specific impact mechanisms and countermeasures based on three core categories: climate, geology, and site conditions, and electromagnetic and light environments: Climatic factors (temperature, humidity, precipitation, wind) not only affect the stability of the mechanical components of the laser leveling machine, but also change the initial setting speed and fluidity of the concrete, thereby indirectly affecting the leveling accuracy and efficiency. Climate Type Specific impact Performance differences High temperature environment (≥30℃) 1. Equipment hydraulic system: Hydraulic oil viscosity decreases, seals age faster, and leaks and pressure shortages are more likely to occur. – Increased probability of mechanical failure (e.g., decreased hydraulic pump efficiency, motor overload); 2. Engine/motor: Heat dissipation efficiency decreases, potentially triggering overheat protection and causing shutdown. – Shrinkage cracks are more likely to form on the concrete surface, increasing flatness deviation after leveling; 3. Concrete: Moisture evaporation accelerates, shortening initial setting time and narrowing the leveling window (necessitating faster vibration and leveling). – Work efficiency is forced to increase, which can lead to decreased accuracy due to hasty operation. Low temperature environment (≤5℃) 1. Hydraulic System: Increased hydraulic oil viscosity increases flow resistance in pipelines, slowing equipment response (e.g., delayed raising and lowering of the leveling blade); – Decreased equipment operational sensitivity (laser signal feedback and mechanical movement become out of sync); 2. Batteries/Circuits: Reduced lead-acid battery capacity makes circuit connectors susceptible to oxidation due to condensation, leading to poor contact; – Concrete density after leveling is insufficient, resulting in a lower surface flatness compliance rate; 3. Concrete: Prolonged initial setting time, reduced fluidity, increased difficulty in vibrating, and the tendency to develop honeycombs and rough surfaces. – Equipment startup is difficult, requiring warm-up time, and overall construction efficiency decreases by 30%-50%. High humidity/rainfall environment 1. Laser System: Condensation or water ingress on the laser transmitter/receiver lens can cause laser signal attenuation or scattering, resulting in positioning accuracy drift. – Laser positioning error increases (from ±2mm to over ±5mm), failing to meet high-precision floor requirements; 2. Electrical System: Moisture in the control panel and motor junction box can lead to short circuits or leakage. – The risk of electrical failures (such as motor failure) increases dramatically, potentially causing "faults" on the concrete surface; 3. Concrete: Excessive moisture content can lead to slow strength development and sanding and powdering of the surface after leveling. – Additional rain protection measures (such as temporary sheds) are required, increasing construction costs. Strong wind environment (≥ level 5) 1. Laser Signal: Strong winds can move the laser transmitter bracket (if not securely fixed), causing the laser reference line to shift. – Laser reference line deviation (a single operation can vary by 5-10mm), resulting in a "wavy" surface; 2. Equipment Stability: Small laser levelers (such as hand-push models) can easily tilt due to wind, affecting the leveling trajectory. – Equipment operation becomes more difficult, requiring additional manual stabilization, and accuracy fluctuations due to human intervention; 3. Concrete Surface: Wind erosion can cause rapid moisture loss from the surface, resulting in cracks. – Concrete surface quality deteriorates, requiring secondary repairs later. The geological conditions of the site (hardness, flatness), obstacle distribution and ground bearing capacity directly affect the load of the laser leveling machine's travel system and vibration system, which in turn leads to performance deviation or mechanical damage. Soft soil (e.g., uncompacted soil): The equipment is prone to "sinking" during travel, causing the leveling blade to lose its level position (although the laser positioning is correct, the machine's posture is tilted), resulting in local depressions on the leveling surface. Furthermore, the vibration force of the vibrating system may cause further subsidence, exacerbating flatness errors. Hard soil (e.g., old concrete, rock formations): Wheels/tracks wear faster, increasing the vibration amplitude of the equipment, making precise control difficult for the operator. If the foundation surface has protrusions (e.g., stones, rebar heads), these can get stuck in the leveling blade, causing "skipping" and resulting in scratches or uneven surfaces. Narrow spaces (such as indoor rooms and elevator shafts): Large laser levelings (such as ride-on models) are difficult to steer and require frequent adjustments, causing the laser receiver to frequently deviate from the baseline and reduce accuracy. Furthermore, insufficient heat dissipation space can easily lead to motor overheating. Dense obstacles (such as pre-buried pipelines and pillars): Operation requires frequent starts and stops, as well as detours. This prevents continuous leveling during the initial setting period of the concrete, leading to the appearance of "joints." Accidental collisions with obstacles can cause the laser transmitter to shift, requiring recalibration and delaying the project. If the ground's bearing capacity is lower than the equipment's own weight (e.g., temporary formwork or uncured concrete), the ground will deform as the equipment moves, causing the entire surface to deform accordingly, resulting in "wavy" patterns. In severe cases, this can cause the formwork to collapse and damage the equipment. The core accuracy of the laser leveling machine depends on the signal matching between the laser transmitter and the receiver. Electromagnetic interference, strong light or dust will directly block or distort the signal, resulting in positioning failure. Sources of interference: Strong electromagnetic equipment at the construction site, such as welding machines, tower cranes, high-voltage cables, and walkie-talkies. Mechanism of Impact: Electromagnetic signals can interfere with the laser receiver's circuitry, causing it to misinterpret the laser reference line (e.g., misinterpreting a "horizontal signal" as a "tilt signal"), leading to incorrect control of the leveling blade. Performance: Irregular height differences appear on the leveling surface, with accuracy plummeting from ±2mm to over ±10mm, or even completely disrupting normal operation. High-light environments (such as midday sun or strong spotlights): When direct sunlight shines on the laser receiver lens, the strong light can drown out the laser signal (laser is red or green visible light, and strong light reduces signal contrast). The receiver cannot accurately capture the baseline, resulting in "signal loss," causing the device to automatically shut down or enter "manual mode" (significantly reducing accuracy). High-dust environments (such as dry-mix mortar mixing and earthmoving operations): Dust adhering to the surface of the laser transmitter/receiver lens can scatter or block the laser signal, causing signal attenuation. If dust enters the lens, it can damage the optical components, permanently reducing positioning accuracy over time. In response to the above environmental factors, performance loss can be reduced through "device adaptation + environment optimization + operation adjustment": High Temperature: Use high-temperature resistant hydraulic fluid, install a cooling fan on the engine, and shorten the concrete pouring interval (to prevent initial setting). Low Temperature: Preheat the hydraulic system (e.g., with electric heating), use early-strength concrete, and cover with insulation film after work. Rainfall/High Humidity: Install a rain cover on the laser system, ensure waterproof sealing of electrical components, and clean condensation from the lens after rain. Soft soil foundation: Use a roller to compact the foundation first, or lay steel plates to distribute the load on the equipment. Hard soil foundation: Clean any surface protrusions in advance and replace wear-resistant wheels/tracks. Narrow spaces: Use a small, hand-push laser leveling, or employ a "segmented leveling + secondary finishing" process. Electromagnetic Interference: Keep the laser transmitter away from strong electromagnetic equipment (distance ≥ 10m) and use a shielded cable to connect to the receiver. Strong Light/Dust: Install a polarizing filter (to mitigate strong light) on the lens. Dedicated personnel should be assigned to clean dust from the lens during operation. Set up a dustproof booth if necessary. In summary, environmental factors impact concrete laser levelings in a multi-dimensional and interlinked manner-from the core laser positioning system to the mechanical execution system to the concrete workpiece-all of which can experience performance degradation due to environmental fluctuations. In actual construction, it's crucial to assess environmental conditions in advance and adjust equipment parameters and operating procedures accordingly to maximize the equipment's precision advantages.   ARMOUR JOINT CONCRETE LASER LEVELING MACHINE POWER TROWEL SLIPFORM MACHINE STEEL FIBER TOPPING SPREADER

    In power trowel construction, the **initial setting time** of concrete is the "golden window" that determines the quality of the floor. If the machine enters the site too early, it will sink into the concrete and damage the smoothness; if it enters too late, the surface will be too hard to lift the mortar, resulting in sanding or hollow areas. The following are the key control points for controlling the initial setting time and the timing of entry: This is the most commonly used and intuitive judgment method by construction workers. Timing of Entry: When a person steps on the concrete surface and the footprint depth is between 3mm and 5mm, it is the optimal time for the power trowel to extract the slurry. Too Early: If the footprint exceeds 10mm, the machine will slip, sink, and may even stir up the aggregate. Too Late: If the footprint is less than 2mm, the surface has already formed a film, making it impossible to extract the slurry, and the blades will wear out rapidly. Initial setting time is not a fixed value and is significantly affected by the following three factors: Ambient Temperature:** For every 10°C increase in temperature, the initial setting time may shorten by more than one hour. During summer construction, the frequency of inspections must be increased. Wind Speed:** Through drafts or strong outdoor winds accelerate surface moisture evaporation, leading to a "false setting" phenomenon (the surface is dry, but the interior is still soft). Operating a power trowel under these conditions can easily cause cracking. Humidity:** Moisture loss is rapid in low humidity conditions; the use of sprays or retarders should be considered. Strictly Prohibit Work on Wet Materials: Before initial setting, concrete will bleed water. The power trowel should only be used after the bleeding has largely disappeared, or after excess water has been removed using a rubber hose and scraper. Risk: Forcing a power trowel to finish the concrete when there is significant standing water will force the water into the concrete surface, leading to delamination or peeling later on. Controlling the initial setting time is actually to connect the following three stages: Stages: Operating Instructions: Objective: Floating Stage **Use the slurry-lifting disc or combination blades laid flat and run at low speed.** To compress large aggregates, refine them into a fine slurry, and eliminate mold marks. Resting Stage **After slurry lifting, wait 15-30 minutes (depending on the hardening speed).** To further degas the surface and increase density. Finishing Stage **Replace with the finishing blades, gradually increase the blade angle, and run at high speed.** To compact the surface layer and create a mirror-like effect. Preventing Machine Burnout: If initial setting is too rapid (e.g., due to the addition of accelerators), the number of power trowels must be increased, implementing a "machine-on-demand" system. Pay Attention to Temperature Differences: During winter construction, if indoor heating is used, uneven heating of the floor can cause some areas to set extremely quickly while others set very slowly. Operators must manually assess the hardening degree of different areas. Controlling the initial setting time relies not only on visual inspection but also on tactile feedback. Try pressing it with your finger; if you feel noticeable resistance but leave a fingerprint, and your fingertip doesn't stick to a large amount of cement paste, this is the starting signal for fine finishing.   Is your current construction environment a large outdoor road surface or an indoor sealant-cured floor? The timing strategy will differ significantly depending on the environment.   Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.

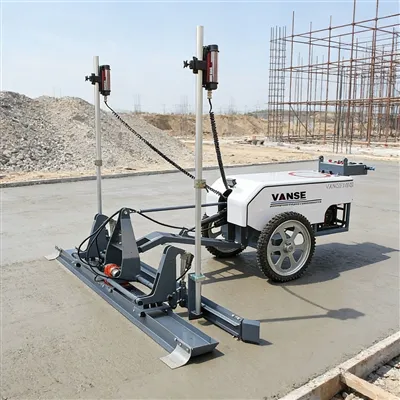

The concrete laser leveler is a piece of equipment widely used at construction sites to achieve fast, high-precision leveling of the ground. When operating this kind of machinery, a series of safety regulations and operating procedures must be followed to ensure the safety of operators and the quality of construction. The following are safety matters that need to be paid attention to during the operation of the concrete laser leveling: •••★••• Preparation before operation 1. Check the equipment: Before operation, a comprehensive inspection of the leveling machine should be carried out, including the mechanical structure, electrical system, laser system, hydraulic system, etc., to ensure that all components are intact and working properly. Pay special attention to check the wear of wearing parts such as blades and scrapers, and replace them in time if necessary. 2. Check the surrounding environment: Clean up debris and obstacles at the construction site and ensure that the leveler is operated on a flat, obstacle-free ground. At the same time, check whether there are other construction workers or equipment around to ensure that they will not interfere with each other during the operation. 3. Wear protective equipment: Operators should wear protective equipment that meets safety regulations, including safety helmets, work shoes, protective glasses, gloves, etc. Do not wear loose clothing or clothing that can easily get caught in the machine. •••★••• Precautions during operation 1. Comply with operating procedures: Operators should be familiar with the operating procedures of the leveling machine and strictly follow the operating procedures. Do not change operating procedures or ignore safety warnings. 2. Maintain a stable speed: During operation, you should maintain a stable driving speed and avoid operations such as rapid acceleration, rapid deceleration, or sharp turns. This can reduce the instability factors of the machine and improve the leveling accuracy. 3. Pay attention to the use of the laser system: The laser system is the core component of the leveling machine and should be inspected and maintained regularly. During operation, ensure that the laser transmitter, receiver and control system are working properly. Avoid operating if the laser system is disturbed or damaged. 4. Maintain a safe distance: During operation, a safe distance should be maintained from surrounding people and equipment. It is prohibited to operate in areas with dense crowds or lots of equipment. At the same time, pay attention to changes in the surrounding environment and respond to emergencies in a timely manner. 5. Avoid overload operation: When the leveling machine carries a load that is too heavy or exceeds its design range, it may cause mechanical failure or safety accidents. Therefore, operators should operate in strict accordance with the specified load capacity of the equipment to avoid overloading. 6. Unauthorized modification is prohibited: The structure and performance of the leveling machine are professionally designed and manufactured. It is prohibited to modify the equipment or add non-standard accessories without authorization. If you need to make changes, you should contact professional manufacturers or technicians for evaluation and guidance. •••★••• Emergency measures 1. Shut down and inspect:  During operation, if any abnormality or malfunction is found in the equipment, it should be shut down immediately for inspection. Do not continue until the cause is identified and the fault is eliminated. 2. Personal injury treatment: If a personal injury accident occurs, stop the machine immediately and turn off the power supply. Then quickly treat the injured and call the emergency hotline to seek professional medical assistance. At the same time, report to superior leaders and relevant departments to investigate and handle the accident. •••★••• What to do after the operation is over 1. Cleaning and maintenance: After the operation, the leveling machine should be comprehensively cleaned and maintained. Remove debris and stains from the fuselage, check the wear of various components and perform necessary lubrication and tightening. 2. Equipment storage: Park the leveling machine in a dry, ventilated, and safe place, and take measures to prevent theft and fire. Do not park the device in a place that is humid, hot, or subject to external impact. •••★••• Summary Safety matters during the operation of the concrete laser leveling involve many aspects, including preparations before operation, precautions during operation, emergency measures, and work after the operation. Operators should strictly abide by safety regulations and operating procedures to ensure their own safety and the safety of others. At the same time, the equipment should be maintained and maintained regularly to ensure the normal operation of the equipment and extend its service life. By strengthening safety management and training and education, we can improve the safety awareness and skill level of operators and provide a strong guarantee for safe production at construction sites. Please note that the above content is based on general safe operation principles and requirements. In actual operation, adjustments and supplements may be required based on specific equipment models, construction environments, and engineering requirements. Therefore, during actual operation, be sure to refer to the operation manual and safety guide provided by the equipment manufacturer, and strictly abide by relevant laws, regulations and standards. At the same time, regular safety training and education are conducted to improve the safety awareness and emergency response capabilities of operators to ensure the safe and efficient operation of concrete laser leveling machines.
