Large area floor laser leveling machine leveling construction method

    The "compatibility" between a topping spreader and your base concrete is essentially a question of surface energy and structural bond. If the base concrete is too rough, too smooth, or too "dead" (hardened), your spreader-regardless of how expensive or precise it is-will fail to distribute the topping properly. Here is how to match your spreader setup to the surface texture of the base slab. The Texture: A fresh, laser-Levelinged surface is smooth but "open," meaning it still has plenty of exposed paste and moisture. Compatibility: This is the "Goldilocks" zone for spreaders. Spreader Adjustment: You can use high-speed rotary spreaders (the ones that throw material using centrifugal force). Because the surface is open, the topping will immediately "drink" the bleed water and bond instantly. Best Practice: Do not wait too long. If the slab surface begins to "crust" (harden), the topping will just sit on top, leading to delamination later. The Texture: A slab that has already been power-floated once is "closed"-the pores are sealed. Compatibility: This is difficult for standard spreaders. The Challenge: If you try to spread dry-shake on a closed surface, it won't hydrate. The powder will act like a "slip layer" (like ball bearings), causing your finishing machines to slide around, or worse, the topping will never bond. Spreader Adjustment: Use a gravity-drop spreader (not a rotary thrower). You need a very precise, uniform layer. You must also follow the spreader with a trowel-based re-opening pass to break the surface tension and force the topping into the slab. The Texture: Often seen in exterior slabs or ramps. Compatibility: Highly incompatible with standard dry-shake spreaders. The Problem: The peaks of the broom finish will strip the topping off the spreader, causing "streaking" or "clumping." Spreader Adjustment: If you must apply topping to a rough surface, you cannot use a mechanical spreader effectively. You are better off using manual broadcasting techniques or a high-pressure pneumatic blower that can "blast" the powder into the deep valleys of the texture. Base Surface Texture Spreader Compatibility Recommended Spreader Type Key Risk Fresh/Levelinged (Open) Excellent Rotary Spreader Over-spreading (waste) Smooth/Power-Floated Moderate Gravity-Drop Spreader Delamination (lack of bond) Broom/Rough Finish Poor Manual/Pneumatic Only Uneven coverage/streaking Cured/Hardened Incompatible N/A Total failure (no bond) The compatibility isn't just about the physical texture; it's about bleed water. * If your surface texture is "open," it has high moisture availability. You need a fast spreader speed to keep up with the hydration. If your surface texture is "closed," it has low moisture availability. You must reduce the spreader speed and immediately follow with a mechanical disc-trowel to "work" the topping into the slab. If you are spreading on a base that is still very soft (wet), your spreader must use flotation tires or wide tracks. If the spreader sinks into the texture (ruts), it creates physical troughs. The material will naturally accumulate in these troughs, creating a non-uniform floor. Compatibility Fix: Always ensure the spreader is calibrated for the weight-bearing capacity of the specific mix design you are using. A good rule of thumb: The amplitude of your surface texture must be less than the particle size of your topping. If you have a coarse broom finish (deep valleys) and you use a fine-powder pigment, the pigment will vanish into the valleys and won't be visible on the peaks. In this case, you need a larger aggregate size in your topping mix to "bridge" the texture. Would you like me to explain how to conduct a "Pull-off Test" to verify if your topping has successfully bonded to a specific surface texture?  Contact us NOW   Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.

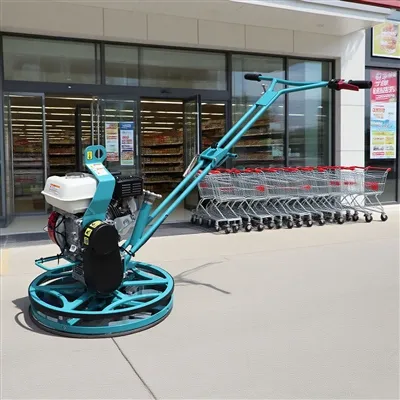

    Adjusting the operating parameters of the power trowel machine for different concrete ratios and additives is a key technology for achieving high-grade floor quality (such as super-flat floors and wear-resistant floors). The following are the experiences and guidelines for adjusting the operating parameters of the power trowel machine according to the characteristics of different concretes: Understanding the interaction: The "temperament" of concrete (setting speed, hardness, bleeding) determines how the power trowel should "treat" it. Observation is more important than presetting: Parameters have no fixed values, and the only criterion is the state of the concrete surface. An excellent operator is one who "watches the work" during construction rather than mechanically timing. Step by step: From low speed to high speed, from large angles to small angles, gradually apply pressure and improve precision. Characteristics: High cement content, dense slurry, fast setting speed, high early strength, and low bleeding. Operational challenge: The operation window period is short, making it easy to miss the best polishing opportunity. The surface is prone to rapid hardening and it is difficult to extract slurry. Adjustment strategy Rotational speed The first pass (disc slurry lifting) : It should be done a little earlier and at a medium to low speed (about 60-80 RPM). Because the slurry is thick, sufficient force is needed to bring it to the surface, but if the rotational speed is too high, it will curl the slurry and roughen the surface. Second and third coats (power trowel polishing) : After the surface is slightly dry, immediately change the power trowel and use medium-high speed (about 90-120 RPM). High speed helps to make the surface very dense and bright. Once you notice a significant increase in machine resistance and the surface starts to feel "rough", it indicates that the final setting is approaching and you need to stop immediately. Blade Angle The first power trowel: The Angle can be slightly level (about 3-5°), mainly for leveling and avoiding too deep a cut. Subsequent power trowel: As the surface hardness increases, gradually raise the blade Angle (about 5-10°), and use the sharp edge of the blade to perform a "cutting" type of polishing to achieve an extremely high gloss. Core experience: "Racing against time". Personnel and equipment must be ready. Once the concrete meets the conditions for machine operation, continuous work should be carried out immediately until completion. Characteristics: The initial and final setting times are significantly prolonged. The surface remains in a "soft" state for a long time, but the interior is slowly setting. Operational challenges: Prone to premature operation, which can damage the surface structure; The long waiting time affects the construction efficiency. It may be accompanied by bleeding. Adjustment strategy Rotational speed First round (disc) : You must wait! Until the depth of the foot depression is less than 5mm. Use a low speed (about 50-70 RPM) to lift the slurry smoothly, as the surface support force is still insufficient. Subsequent polishing: The interval between each application is quite long, requiring great patience. Always use medium and low speeds to avoid surface "wavy" or "curled skin" caused by excessive speed. Blade Angle Throughout the entire process, always maintain a relatively small Angle (approximately 0-5°). Because concrete is soft, if the Angle is too large, it will overly erode the surface and form grooves. Core experience: "Patience". Never be in a hurry to use the computer. If there is bleeding on the surface, it should be scraped off with water first or wait for it to evaporate. The operation mainly involves "gentle kneading". Characteristics: Fast setting speed and rapid strength growth. Operational challenge: The operational window period is extremely short, almost an "accelerated version" of high-grade concrete, making it easier to miss the opportunity. Adjustment strategy Rotational speed All rounds: The pace should be fast. The disc and the first power trowel operation can be combined or carried out quickly and continuously. The rotational speed can be medium to high (80-100 RPM) to complete compaction and smoothness within a limited time. Blade Angle The blade Angle can be raised relatively quickly. When applying the second coat of gloss, a relatively large Angle (about 7-10°) can be adopted to seize the final opportunity for pressing. Core experience: "Prediction and connection". The operator must constantly observe the surface changes. After the disc operation, the power trowel operation should be seamlessly connected. Machines can't stop. When people rest, the machines don't. Characteristics: The early strength is relatively low, and the setting speed is slightly slower, but the later strength is high, and the surface is easier to smooth. Operational challenges: Low surface strength in the early stage and prone to damage; However, the slurry has good lubricity and is prone to excessive polishing, which can lead to bleeding. Adjustment strategy Rotational speed First pass (disc) : The waiting time is similar to or slightly longer than that of ordinary concrete. Lift the slurry smoothly at medium speed (about 70-90 RPM). Subsequent polishing: Due to its excellent lubricity and wear resistance, it can be polished multiple times at medium speed, making it easy   Concrete type Disk stage rotational speed The rotational speed of the power trowel stage Suggested blade Angle Core operational philosophy High grade/low water-binder ratio Medium and low speed (60-80 Medium and high speeds (90-120) From flat (3-5°) to steep (5-10°) Race against time and increase pressure step by step Add retarder Low speed (50-70 Medium and low speed (70-90) Always maintain a small Angle (0-5°) Wait patiently and operate gently Adulterated with early strength agents Medium and high speeds (80-100) Medium and high speeds (90-110 Quickly increase the Angle (7-10°) Predictive connection, quick and decisive High-admixture Medium speed (70-90) Medium speed (80-100) Medium Angle (5-8° Gentle multiple times, taking advantage of the characteristics Note: The unit of rotational speed is RPM (revolutions per minute), which is an empirical reference value. The specific speed should be subject to the machine model and on-site conditions. The "Better late than early" rule: No matter what the ratio is, it is better to apply the gloss on the machine a little later than a little earlier. The machine may be strenuous at night, but in the morning it will completely damage the surface structure and cannot be remedied. Footprint Method for timing: Disc operation: Footprint depth is approximately 3 to 5 mm. The first power trowel: The depth of the footprint is approximately 1-2 mm. Final polished: The footprints are extremely shallow or non-existent, and the foot feel is hard. Listen to its sound, observe its trace Too high rotational speed/too early timing: The machine makes a dull sound, has high resistance, and there are "slurry" or "scratches" marks on the back of the blade. Too low speed/too late timing: The machine jumps severely, the blade "floats" on the surface and cannot be eaten, leaving white scratches without luster. The Angle and rotational speed are optimally matched: the machine operates smoothly, with uniform sound, and the blade leaves a uniform, bright, and traceless surface after passing through. Mastering these adjustment experiences requires a great deal of practice and careful observation. The best approach is to consciously associate the concrete mix ratio, weather conditions, the adopted operation parameters and the final effect with each construction, constantly accumulate and correct one's own "experience database", and thus become an expert in concrete plastering capable of handling any "temper".   Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.

  A concrete laser leveling can be used to repair old concrete floors, but it's typically not applied directly to the old surface. Instead, it's used for "reinforcement layers" or "overlays" in old floor renovations. Simply put, if your repair plan involves "adding a new layer of concrete," then a laser leveling is a powerful tool for improving the quality of the repair; however, if you simply want to repair a few cracks or potholes, it's not suitable. Below is a detailed analysis of applicable scenarios and limitations: When an old floor requires complete renovation due to poor flatness, insufficient strength, or severe dust generation, overlay construction is typically used. Application: A 30mm–100mm thick layer of new concrete is poured onto a milled and dust-free old floor. Screwing Machine Function: Laser leveling ensure that this thin layer of new concrete achieves extremely high flatness, repairing slope defects in the old floor. Advantages: More uniform than manual leveling, reducing shrinkage cracks caused by uneven thickness. Application: If the old floor is severely damaged (e.g., large-area cracks), a release liner is typically laid first, followed by a new floor slab at least 100mm thick. Laser leveling Function: In this case, the laser leveling functions as if it were a new floor, and is the only standard method to achieve high F/L values. While technically feasible, the following challenges should be considered when using laser leveling for old floor repairs: Laser leveling have an auger and a vibrating beam. If the overlay thickness is less than 30mm (such as some self-leveling mortars), the machine's mechanical vibration and the auger may come into contact with the old substrate, making work impossible. Recommendation: For thin overlay repairs (<30mm), a manual laser leveling or self-leveling process should be used. The existing ground must be able to support the weight of the leveling. Ride-on leveling: Typically weigh between 0.5 and 2 tons. If the existing ground has voids or extremely low strength, the machine's movement may cause secondary damage to the foundation. Handheld leveling: Lightweight, more suitable for thin-layer overlay repairs inside old factory buildings. Substrate Treatment: The aggregate of the old concrete must be exposed through shot blasting or milling to ensure proper bonding between the old and new concrete. Setting the Benchmark: Laser emitters are installed around the perimeter of the old surface, and the target elevation after repair is set. Pouring and Leveling: After the new concrete is poured, the laser leveling machine automatically adjusts the leveling head height according to the set elevation, completing the spreading, leveling, and compaction in one operation. Conditions Applicable Recommended Solution: Local pothole/crack repair Not Applicable Manual filling with epoxy mortar or repair material Overall leveling and renovation of old flooring (addition layer >3cm) Highly Applicable Laser leveling + fine aggregate concrete/steel fiber reinforced concrete Ultra-thin self-leveling compound repair (<1cm) Not Applicable Self-leveling construction process   Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.
