Is there a direct relationship between the power of the trowel machine and the trowel effect?
November 28, 2024
Is there a direct relationship between the power of the trowel machine and the trowel effect? 2
The power of the trowel has a certain relationship with the trowel effect, but it is not the only determining factor
The positive impact of power on the trowel effect
1. Power and work efficiency
– Trowels with higher power are usually more powerful. For example, in the concrete floor construction of large-scale construction projects, if a driving trowel with higher power (such as 5.5kW – 7.5kW) is used, its motor can provide enough torque to rotate the trowel blade at a higher speed. In this way, when facing a large area of rough ground, the unevenness of the concrete surface can be quickly smoothed, effectively improving work efficiency.
– A high-power trowel has more advantages when dealing with thicker concrete surfaces or ground materials with a certain hardness. Because it can more easily overcome resistance, cut the trowel blade into the material surface to a certain depth, compact and smooth the material, and make the ground smoother.
2. Trouble uniformity
– High-power trowels may have better speed stability. Due to its sufficient power, the speed of the trowel blade can be kept relatively stable during operation, even if the local hardness of the ground changes or it is uneven. This helps to achieve a more uniform trowel effect. For example, when troweling the floor of an industrial plant, a high-power trowel can better deal with the small potholes and bumps that may exist on the ground, making the troweled ground more uniform in gloss and flatness.
Power is not the only factor that determines the trowel effect
1. The influence of the quality and type of trowel blade
– The material and design of the trowel blade are crucial to the trowel effect. For example, the use of high-quality alloy steel trowel blades has better hardness and wear resistance. Driven by a trowel of the same power, this trowel blade can better smooth the ground and has a longer service life.
– Different types of trowel blades are suitable for different ground materials and construction requirements. For example, for indoor floors with high precision requirements, a trowel blade with fine texture may be required. This trowel blade can achieve a delicate trowel effect at a lower power through its special texture design.
2. The influence of the operator's skills and experience
– The operator's proficiency in operating the trowel will affect the trowel effect. An experienced operator can reasonably control the trowel's walking speed, trowel angle and other parameters according to the actual situation of the ground. Even if a trowel with a smaller power is used, a better trowel effect can be obtained through reasonable operation, such as multiple cross trowels. – The operator's control over the construction process is also very important. For example, the use requirements of the trowel are different in the initial setting stage and the final setting stage after concrete pouring. If the operator can accurately grasp the timing and choose the appropriate power and trowel method, the ideal trowel effect can be achieved.
3. The influence of ground foundation conditions
– The initial flatness and material quality of the ground have a great influence on the trowel effect. If the ground itself is seriously uneven, such as large cracks, potholes or local looseness caused by unreasonable concrete material ratio, then relying solely on the power of the trowel will not be able to obtain a good trowel effect. In this case, the ground foundation needs to be repaired first, and then the trowel is used for troweling.
About the Author: Shandong Vanse Machinery Technology Co., Ltd.
Shandong Vanse Machinery Technology Co., Ltd. is a high-tech manufacturer specializing in concrete construction machinery, including laser screeds and related equipment. The company integrates R&D, production, and global sales, with products exported to over 60 countries and widely used in infrastructure projects worldwide.

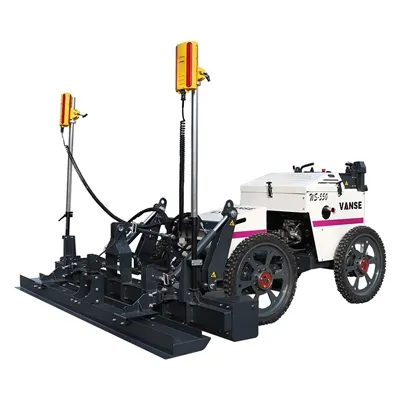

Concrete Laser Levelings Machine User Manual And Operating Guide
