During the construction process, if an emergency occurs, how should the operator handle it correctly?

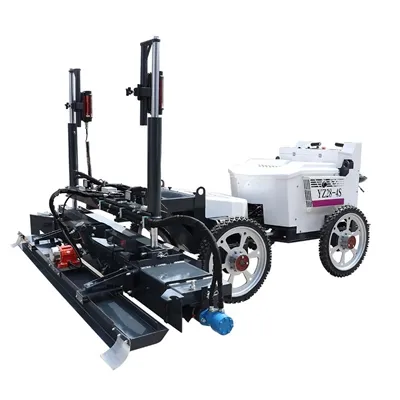

During the construction process, the safe operation of the concrete laser leveling is crucial to ensuring the life safety of the construction workers and the smooth progress of the construction. In order to ensure construction safety, a series of measures need to be taken to manage and maintain the concrete laser leveling. This article will introduce in detail how to ensure the construction safety of concrete laser leveling machines through operational training, safe operating procedures, regular equipment maintenance, wearing protective equipment, paying attention to the construction site environment, cyclic load limits, machine alarm systems and ensuring power supply safety. . 1. Operation training Operating a concrete laser leveling requires specialized skills and knowledge. Therefore, operators need to receive comprehensive operational training, understand the structure and working principles of the machine, and master correct operating methods and technical essentials. Through training, operators can become familiar with the performance characteristics of the machine, improve their operating skills and ability to respond to emergencies, thereby reducing safety risks during operation. 2. Safety operating procedures Developing and implementing safe operating procedures is an important measure to ensure the safety of concrete laser leveling construction. Safety operating procedures should include pre-start inspections, operating procedures, abnormal situation handling and shutdown to ensure that operators follow correct operating procedures and precautions during the construction process. In addition, operators should be regularly trained and assessed on safe operating procedures to ensure that they are proficient in and strictly abide by relevant regulations. 3. Regular maintenance of equipment The normal operation of the concrete laser leveling machine is inseparable from regular maintenance and upkeep. Through maintenance work such as regular inspection, cleaning, lubrication and adjustment, potential safety hazards can be discovered and solved in time to ensure that the machine is in good working condition. At the same time, worn parts should be replaced regularly to prevent equipment failures and accidents. It is recommended to develop a detailed maintenance plan and strictly implement it to ensure the reliability and safety of the equipment. 4. Wear protective equipment During the construction process of the concrete laser leveling machine, the operator should wear necessary protective equipment, such as safety helmets, gloves, goggles, etc. These protective equipment can effectively reduce the safety risks of operators during the construction process and reduce the degree of accidental injuries. At the same time, the integrity of protective equipment should be checked regularly, and damaged or worn protective equipment should be replaced in a timely manner to ensure its effectiveness. 5. Pay attention to the construction site environment The construction environment of the concrete laser leveling machine has an important impact on its safety. Operators should pay attention to the environmental conditions of the construction site, such as ground conditions, construction environment temperature and humidity, etc. Under adverse environmental conditions, such as slippery floors or excessively high temperatures, corresponding safety measures should be taken, such as suspending construction or strengthening equipment stability, to ensure construction safety. 6. Follow load limits The concrete laser leveling has a certain load limit. Exceeding the load limit will cause machine damage and safety accidents. Operators should strictly abide by the load limits of the machine and avoid overloading. At the same time, the working parameters and load of the machine should be reasonably configured according to the specific conditions and requirements of the construction site to ensure the normal operation of the machine and construction safety. 7. Machine alarm system The concrete laser leveling machine should be equipped with a complete alarm system to remind the operator of the machine's working status and abnormal conditions. When a machine malfunctions or is abnormal, the alarm system should issue an alarm in time to attract the operator's attention so that appropriate measures can be taken. In addition, the alarm system should also have remote communication capabilities so that relevant personnel can be notified in time for handling in case of emergency. 8. Ensure power supply safety The power supply safety of the concrete laser leveling machine is crucial to the normal operation of the equipment and construction safety. The stability and reliability of the power supply should be ensured to avoid unexpected shutdown or equipment damage caused by power failure. At the same time, measures such as grounding and leakage prevention should be taken to ensure the operator's personal safety. It is recommended to regularly check the power supply lines and equipment power consumption to promptly discover and solve potential safety hazards. Summary: Through the implementation and management of the above measures, the construction safety of the concrete laser leveling can be effectively ensured. During the construction process, safety issues should always be paid attention to, equipment maintenance and management should be strengthened, and operators' skills and awareness should be improved. Only in this way can we ensure the safe and smooth progress of construction, reduce safety risks and protect the safety of personnel and property.

    Choosing the right blade is about matching the abrasiveness and toughness of the concrete slab as it cures. Using the wrong blade can either "burn" the floor (black marks) or wear out your equipment in minutes. Here is the breakdown of blade types and when to swap them: Strictly speaking, these are large steel disks that clip onto the blades, but they are the first "type" you'll use. Concrete State: Wet/Plastic. You can leave a 1/4" to 1/2" footprint. Hardness Profile: Soft/Fresh. Use Case: To break down high spots and fill low spots left by the laser leveling. Pans provide the highest Floor Flatness (FF) because they have a massive surface area. The workhorse of the industry. Concrete State: Damp to Firm. Footprint is roughly 1/8". Hardness Profile: Standard setting concrete. Use Case: These are used as the concrete begins to harden. They are stiff enough to apply pressure but flexible enough to "flick" the cream back into the pores. The Catch: If the concrete is very "hard" or has high silica content, these blades will wear down quickly and can leave dark burnish marks if you aren't careful. The "Insurance Policy" for colored or decorative concrete. Concrete State: Firm to Hard. Hardness Profile: High-performance mixes or light-colored slabs. Use Case: If you are working on a white or light-gray floor where burn marks (black streaks from steel friction) would be a disaster. Plastic blades give a smooth finish without the metallic discoloration. A hybrid between a float blade and a finish blade. Concrete State: Medium-Firm. Hardness Profile: Versatile. Use Case: Designed for operators who don't want to swap blades mid-job. One side is wide (for floating) and the other is pitched for finishing. They are great for small-to-medium residential jobs but usually aren't precise enough for ultra-flat industrial floors. Concrete Hardness / Type Recommended Blade Primary Benefit Fresh / Soft Float Pans Maximum flatness; high "cream" Standard / Mid-Day Carbon Steel Finish High durability; classic shine Ultra-Hard / Fast-Set Blue Steel Blades Extra flexibility; prevents "chatter" Light Colored / Dyed Plastic (Poly) Blades Prevents black burnish streaks Epoxy / Specialty Stainless Steel Prevents rust contamination If you are dealing with High-Early strength concrete (which gets hard very fast), look for Blue Steel blades. Blue Steel is thinner and more flexible than standard gold or silver steel. This flexibility allows the blade to "give" a little when it hits a hard aggregate stone, preventing the machine from "chattering" or bouncing, which is common on hard-set slabs.   Would you like me to explain how to tell if your blades are "spent" and actually damaging your floor flatness? Contact us NOW   Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.

    Cracks in cement floors (typically referring to cement concrete surfaces, such as indoor floors, outdoor plazas, and parking lots) not only affect appearance but can also reduce durability and even hinder functionality due to water seepage and debris accumulation. The following detailed analysis covers common crack symptoms, core causes, and targeted prevention and control measures to help accurately identify and effectively resolve the problem.   The form, width, and distribution of cement floor cracks directly reflect their causes and can be categorized as follows: Crack Types Appearance Characteristics Common Locations Hazard Level Surface Cracks Cracks are short and thin (<0.1mm wide), forming an irregular network with no discernible depth, mostly concentrated in the surface layer (1-3mm deep). Large indoor floors and outdoor plazas Low (appearance only, no structural risk) Vertical/Horizontal Cracks Cracks are long (several to tens of meters long), straight, 0.1-0.5mm wide, and can penetrate the surface layer (5-10mm deep). Along the length/width of the floor, or along both sides of a partition joint Medium (easy to seep, accelerating surface degradation) Cracks at the Edges and Corners of Plates Cracks extend from the corners of the slab (such as the corners of a square floor) toward the center, forming an L-shaped or diagonal pattern, with a width of 0.2-0.8mm. At the joints of indoor and outdoor floor panels, near wall corners High (likely to cause edge peeling, affecting pedestrian safety) Through-Breaking Cracks Cracks extend through the entire cement surface layer (even penetrating the base layer), are >0.5mm wide, and are sometimes accompanied by slight ground subsidence or sanding. Highly loaded areas (such as parking lots and warehouses), and areas with uneven subgrades Extremely High (may cause floor damage and water accumulation, requiring urgent attention) The root cause of cement floor cracking is "internal stress in the surface layer exceeding its tensile strength." The sources of this stress are related to five key factors: material, base layer, construction, environment, and usage. The details are as follows: Improper material selection or proportioning directly leads to insufficient crack resistance in the surface layer: Incorrect cement selection: Using cement with a high heat of hydration (such as P.O. 42.5R rapid-hardening cement) to cast large surfaces releases a large amount of heat during hydration, raising the internal temperature of the surface layer. Contraction upon cooling creates "temperature stress," which can cause longitudinal and transverse cracks. Using expired cement (which has reduced strength) can also lead to insufficient tensile strength in the surface layer, making it more susceptible to cracking. Poor aggregate grading: If the fine aggregate (sand) is too fine (fineness modulus <2.3) or the mud content is too high (>3%), the cement requirement will increase (more cement paste is needed to coat the aggregate), leading to increased shrinkage of the surface layer. If the coarse aggregate (stone) is too small (<5mm) or missing, it will not form a "skeletal support," resulting in unrestrained shrinkage of the surface layer and prone to network cracking. If the water-cement ratio is too high: In pursuit of fluidity during construction, water usage is often blindly increased (water-cement ratio > 0.55). After the surface layer hardens, excess water evaporates, creating internal voids and reducing density. This significantly increases shrinkage (approximately 20% increase in shrinkage for every 0.1 increase in water-cement ratio), which can easily lead to surface cracking and edge cracking. Improper admixtures/admixtures: Failure to add or incorrect addition of admixtures (e.g., failure to add a retarder in summer, resulting in rapid initial setting of the surface layer and inability to grout after surface water evaporates; failure to add an antifreeze in winter, resulting in internal structural damage after freezing); and failure to add admixtures such as fly ash and mineral powder (key to reducing hydration heat and shrinkage) result in poor crack resistance in the surface layer. Cement floor surfaces rely on the stable support of a base layer (such as a lime soil base, crushed stone base, or concrete base). Base layer problems can directly affect the surface layer: Uneven base layer settlement: If the base layer is not compacted layer by layer during construction (e.g., a lime soil base with a compaction level less than 95%), or if there is a weak soil layer beneath the base layer (e.g., uncompacted backfill), the surface layer can experience partial subsidence during use, subjecting it to tensile stress and causing through-hole cracks or cracks at the edges and corners of the slabs. Uneven/contaminated base layer surface: The base layer surface has a height difference greater than 5mm (not leveled). The surface layer has uneven thickness after pouring, with thinner areas shrinking faster than thicker areas, creating "temperature differential stress." Oil and loose dust on the base layer surface have not been cleaned, resulting in insufficient adhesion between the surface layer and the base layer. After hardening, the two separate, and the surface layer shrinks independently, causing cracks. No isolation layer is provided for the base layer: When the base layer is concrete or a rigid material, without an insulating layer such as polyethylene film, the surface layer adheres too tightly to the base layer. During shrinkage, it is constrained by the base layer and cannot deform freely, causing cracks in areas of stress concentration (such as corners and joints). Construction operation is critical to crack control. Common mistakes include: Improper pouring and vibration: Failure to follow the "staged pouring, gradual progress" principle during pouring (e.g., large areas of ground are not divided into blocks, with individual blocks >20 m2), resulting in no channels for the surface layer to shrink as a whole; insufficient vibration during vibration (low density in some areas of the surface layer, insufficient tensile strength) or over-vibration (aggregate sinks, cement slurry floats, forming a "floating slurry layer" on the surface. After hardening, the floating slurry shrinks and cracks, known as crazing). Incorrect timing of surface calendering: Calendering too early (the surface layer has not yet set and the cement slurry has not yet developed strength) can easily cause sanding on the surface; calendering too late (the surface layer has already set and a crust has formed on the surface) can damage the surface structure, forming microcracks that later expand into cracks. Inadequate or improper sizing of the slurry: Large areas of flooring (single floor area >15 m2) are not provided with standardized expansion joints (spacing: ≤6 m vertically, ≤8 m horizontally). This lack of "stress relief" during surface shrinkage can lead to vertical/transverse cracks along weak areas (such as the center). Insufficient expansion joint depth (<1/3 of the surface layer thickness) or inadequate filler (such as asphalt mortar) can cause cracks to extend along both sides of the expansion joints. Untimely/inadequate curing: Failure to cover and cure the surface layer within 12 hours of pouring (e.g., exposure to direct sunlight in summer or wind in winter) allows surface moisture to evaporate rapidly, preventing internal moisture from being replenished. This results in "shrinkage stress" and causes surface cracking. Insufficient curing time (<7 days) prevents the surface layer from reaching its designed strength (typically ≥70% strength), leading to premature loading (e.g., pedestrians or vehicles), which can easily lead to corner cracks or through-hole cracks. Ambient temperature and humidity fluctuations can exacerbate stress in the surface layer and induce cracks: Severe Temperature Fluctuations: In summer, during daytime pouring (ambient temperature 35°C), the temperature drops sharply at night (15°C). The surface layer cools and contracts rapidly, while the interior cools and contracts slowly. This internal constraint creates "temperature stress" on the surface, leading to longitudinal, straight cracks. In winter, if the surface layer freezes before reaching its frost resistance (≥70% of design strength), the internal moisture freezes and expands, and upon thawing, the volume contracts, forming "freeze-thaw cracks" (mostly cracks at the edges and corners of the slabs, accompanied by surface spalling). Chronic and unstable humidity: In humid environments (such as bathrooms and underground garages), the surface layer absorbs moisture over time, softening the cement paste and reducing its tensile strength. In dry environments (such as heated rooms and warehouses in northern China), moisture from the surface layer continuously evaporates, accumulating shrinkage stress. The alternating effects of these two factors can easily lead to surface cracking or through-hole cracks. Improper load or maintenance during use can accelerate the development of cracks: Premature loading or overloading: Heavy objects (such as furniture and building materials) are piled on the surface before it reaches its design strength (28 days), or vehicles are driven on it (for example, a parking lot is opened to traffic without proper maintenance). This causes the surface to be subjected to loads exceeding its tensile strength, leading to through-cracks or cracks along the edges of the slabs. Lack of routine maintenance: Failure to promptly seal small cracks in the surface allows rainwater and oil to seep in, eroding the surface's internal structure. Furthermore, in winter, the water that seeps in freezes and expands, causing cracks to widen. Prolonged exposure to heavy loads (such as frequent forklift traffic in a warehouse) can lead to localized stress concentrations, causing longitudinal cracks.   The core of prevention and control lies in "source control (materials + base layer), process control (construction), and post-maintenance (environment + use)." It is divided into two parts: "preventive measures" and "crack repair measures": Precise Material Selection: Prioritize cement with low hydration heat (such as P.O. 42.5 ordinary cement or slag Portland cement); use well-graded medium sand (fineness modulus 2.3-3.0, mud content ≤3%) and 5-10mm continuously graded crushed stone (mud content ≤1%) as aggregates; add Grade I fly ash (15%-20%) or mineral powder (20%-25%) to reduce hydration heat and shrinkage. Strictly control the water-cement ratio: The water-cement ratio should be ≤ 0.5 (for standard floors) and ≤ 0.45 (for impermeable floors). If necessary, add a retarding water reducer (at a dosage of 0.5%-1%) to maintain fluidity while reducing water consumption and minimizing shrinkage risk. Ensure the base layer is compacted and leveled: The base layer (lime soil/gravel) should be constructed in layers, with each layer ≤30cm thick and a compaction level ≥95% (tested using the knife ring method). The base layer surface should be leveled with cement mortar, with a height difference ≤3mm and cleaned (free of oil stains and loose dust). Apply a primer if necessary (to enhance adhesion between the surface layer and the base layer). Installing Isolation Layers and Expansion Joints: For rigid base layers (such as concrete), lay a 0.1mm thick polyethylene film isolation layer. For base layers >10m long, install expansion joints every 6-8m along the length (20mm wide and filled with asphalt hemp) to prevent base layer shrinkage from transferring to the surface layer. Scientific pouring and vibrating: For large floor areas, pour in blocks, with each block ≤15 m2 (rectangular blocks, aspect ratio ≤1.5). Leave 20 mm wide joints between blocks (the joint depth should be 1/3-1/2 the surface layer thickness). Vibrate with a flat vibrator (at a speed of 1-1.5 m/min) until the surface is free of bubbles and slurry. Avoid missed or over-vibration. Choose the right timing for calendering: Calender in three steps: ① Before initial setting (after the surface layer has absorbed water), smooth it with a wooden trowel; ② After initial setting (no visible finger marks remain), perform initial compaction with an iron trowel; ③ Before final setting (when the surface is nearly hardened), perform final compaction with an iron trowel to ensure a smooth surface without any marks. Strengthened maintenance management: Cover the surface with geotextile or plastic film (add a shade net in summer and a thermal blanket in winter) within 12 hours after pouring to keep the surface moist. Curing time for ordinary surfaces is ≥7 days, and for impermeable/load-bearing surfaces is ≥14 days. Pedestrians and vehicles are prohibited from entering during the curing period. Temperature Control: In summer, avoid pouring at noon (select morning and evening temperatures between 25-30°C). Cover the surface to maintain moisture. In winter, preheat the aggregate (≥5°C) before pouring, ensure the surface is at least 10°C before pouring, and maintain an ambient temperature of ≥5°C during curing (use heating if necessary). Usage and Management: The surface should be cured for 28 days before use. Premature stacking of heavy objects is prohibited. In areas such as parking lots and warehouses, limit vehicle/cargo weight to the designed load capacity to avoid local overloading. Regularly inspect the floor surface and seal any minor cracks with epoxy resin glue. If cracks have already appeared, first clean them (remove debris and dust, and flush with a high-pressure water gun), then repair them as follows: Crack Types: Repair methods Material Selection Key Points: Surface cracks Surface sealing method Epoxy sealer, cement-based penetrating crystallization coating (CCCW) Use a brush to evenly apply the glue/paint to the crack surface and a 5cm area on either side. Repeat 2-3 times. Cure for 24 hours. Vertical/horizontal cracks (width < 0.5mm) Low-pressure grouting method Cement slurry (water-cement ratio 0.45), epoxy slurry Drill an 8mm diameter hole (5mm deep) every 20cm along the crack. Insert a grouting tube and inject grout using a low-pressure pump (0.2-0.3MPa) until the grout overflows. Cure for 7 days. Cracks along edges and corners (width 0.2-0.8mm) Painting mortar filling method Polymer cement mortar (cement: sand: latex = 1:2:0.15) Chisel away the loose surface layer on both sides of the crack (5-10cm wide, 3-5mm deep). Clean and apply a primer. Fill with mortar and compact. Cure for 7 days. Through cracks (width > 0.5mm) Grouting + reinforcement method High-strength epoxy slurry, carbon fiber cloth First, fill the crack with high-pressure grouting (1.0-1.5MPa). Then, apply carbon fiber cloth (15cm wide, along the crack). Apply a topcoat. Cure for 14 days. The key to preventing and controlling cracks in cement floors is "prevention is better than cure": By optimizing the material mix (controlling the water-cement ratio and adding admixtures), stabilizing the base layer (compacting, leveling, and insulating layers), and standardizing construction (block-by-block pouring, timely maintenance, and appropriate gridding), stress can be reduced at the source. If cracks have already occurred, appropriate repair methods should be selected based on the crack morphology (width, depth, and location) to prevent further crack expansion. Paying attention to load control and regular maintenance during daily use can significantly extend the service life of cement floors.   Note: The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.
