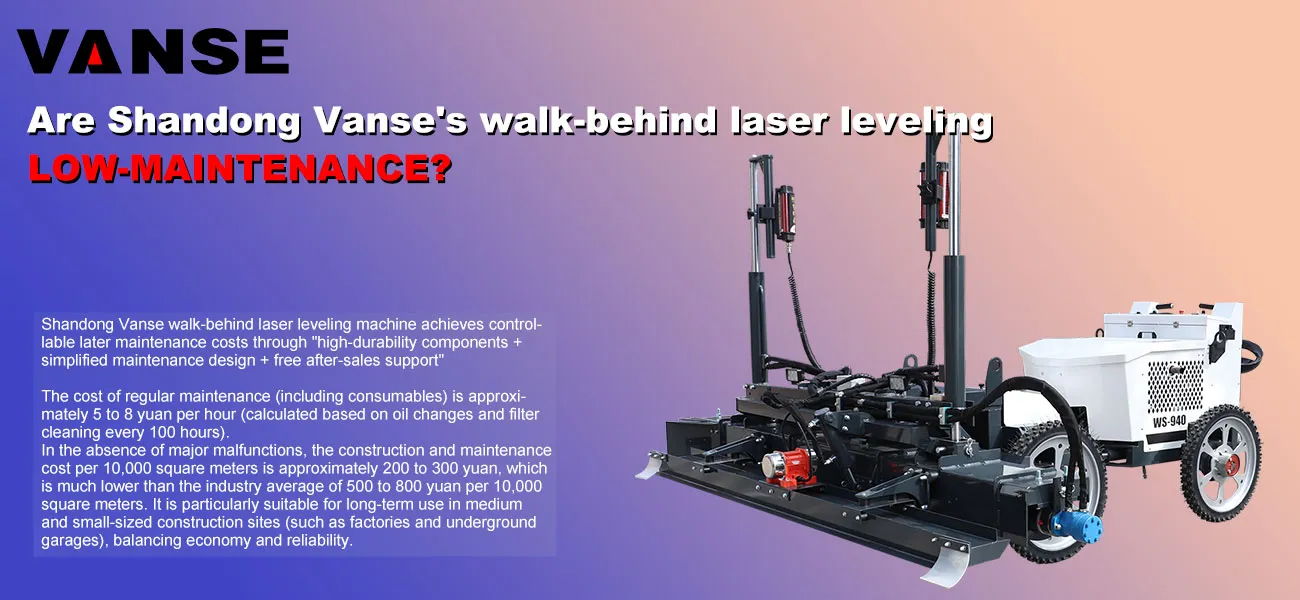

Are Shandong Vanse’s walk-behind laser leveling low-maintenance?
The later maintenance cost of Shandong Vanse's walk-behind laser leveling is relatively low, which is clearly reflected in multiple dimensions such as equipment design, quality of core components, maintenance convenience, after-sales service policies, and actual construction feedback. Specifically, it can be summarized as follows in combination with the details of the manual and actual market applications:
I. Equipment Design: Reduce maintenance difficulty and frequency, and minimize labor/component wear and tear
The innovative structure simplifies the maintenance process. This equipment adopts a front and rear hood tilting design, which is an industry-first design that can quickly expose the internal key components (such as the generator and hydraulic system), and maintenance can be completed without disassembling a large number of peripheral components. Compared with the complex process of disassembling the body of traditional models, it not only saves more than 30% of maintenance time, but also avoids component damage caused by improper disassembly, indirectly reducing maintenance costs. Meanwhile, the body adopts a lightweight design, with the entire machine weighing only 325-350kg. When moving to another location, there is no need for large hoisting equipment, reducing the wear and tear on the tires and chassis during transportation. Moreover, the walking system is independently driven by two wheels. When a single wheel malfunctions, the entire machine does not need to be shut down for maintenance, reducing downtime losses.
The service life of vulnerable parts is optimized and the replacement cycle is clearly marked. The manual clearly indicates the maintenance and replacement cycle of core components. Most vulnerable parts have a longer service life, reducing the cost of frequent replacement.
Long-term durable components:
The replacement cycle of the rubber shock absorber is 500,000 square meters of construction area, and the replacement cycle of the scraper connection shaft is 200,000 square meters, far exceeding similar models in the industry (usually requiring replacement for 200,000 to 300,000 square meters).
Regular maintenance parts:
The balance shaft bracket and the wheel axle head only need to be greased every 50 hours and do not need to be replaced frequently. The fixing bolts of the vibrator should be inspected once every 100 hours. They only need to be tightened and do not require regular replacement.
Controllable consumable costs:
The air filter should be cleaned every 70 hours and the gasoline filter every 100 hours. After cleaning, they can be reused without the need to frequently purchase new parts.
Ⅱ. Core component quality: Imported configuration reduces the risk of failure and lowers maintenance costs
The core components of the equipment (such as generators, laser systems, and drive parts) all adopt imported brands from Germany, the United States, and Japan, for example
The generator is equipped with
Jialing, Japanese YITENG (TY3600DC-2) or SAWAFUJI (SH6500EX)
. It features stable power and a low failure rate. The manual indicates that the first oil change cycle for a new machine is 20 hours, and then it should be changed every 100 hours. The oil grade is clearly specified (10-30 gasoline oil for the south and 15-40 for the north). Avoid engine damage caused by improper oil compatibility.The laser control system adopts microcomputer scanning technology. The working diameter of the laser emitter reaches 300m and it has a protection level of IP66. It operates stably in an environment ranging from -10 to 60℃, with very few signal failures. Compared with domestic laser systems, it can reduce the frequency of debugging and maintenance by more than 50%.
The durability of high-quality components directly reduces the probability of core system failures. According to market feedback, during continuous construction (such as 8 hours of operation per day), this equipment has no major failures on average within 1,000 hours and only requires regular maintenance, which is far superior to the performance of some domestic models that need repair within 500 to 800 hours.
Ⅲ. Maintenance and After-sales Service: Clear process + Free service, further reducing costs
The maintenance process is standardized to reduce labor costs. The manual details a hierarchical maintenance list of "daily – every 50 hours – every 100 hours", and the operation is simple and easy to execute:
Every day, only the cable connectors and laser communication interfaces (waterproof + loose) need to be inspected, and the oil of the lifting frame joint head needs to be added. One person can complete this in 30 minutes.
Every 50 hours, maintenance items (such as adding grease to the balance shaft bracket and inspecting the distribution box) can be carried out by the construction team themselves without the need for professional maintenance personnel, thus saving on-site service fees (usually the cost of a single on-site maintenance is 300 to 500 yuan).
The after-sales service policy reduces additional expenses. The manufacturer provides worry-free services throughout the entire life cycle. Core benefits include:
Free regular maintenance:
Every winter, we organize the "Winter Warmth Delivery Campaign", offering free inspections of the laser system, hydraulic pipelines, and electrical circuits for customers. We promptly identify potential issues (such as laser receiver calibration and aging of sealing parts) to prevent minor malfunctions from escalating into major repairs (for instance, if the laser receiver is not calibrated in time, it may lead to ground flatness errors, with subsequent rework costs exceeding 10 yuan per square meter).
Overseas/Off-site service support:
When the equipment is exported or construction is carried out in other places, the manufacturer can send engineers to the site for commissioning. The commissioning and training costs are already included in the purchase cost of the machine and no additional fees are required.
Component supply guarantee:
Vulnerable parts (such as puncture-resistant tires and vibration plate bolts) can be quickly allocated through dealers, with transparent unit prices (for example, the unit price of a tire is about 200 yuan per piece), which is 20%-30% lower than that of third-party repair shops.
Ⅳ. Actual construction Feedback: The comprehensive cost is 2-3 yuan per square meter lower than that of traditional methods
From the perspective of engineering application, the low maintenance cost of this equipment is also reflected in the indirect savings of later ground maintenance expenses:
Laser leveling technology enables large-scale integral paving, reducing construction joints (traditional techniques leave joints every 6-8 meters, while this equipment can be seamless within 25 meters). The probability of ground cracking is reduced by 60%, and the later repair cost (typically 50-100 yuan for repairing a 1-meter crack) is significantly decreased.
The construction accuracy meets the German standard (flatness error ≤1.3mm), and there is no need for post-construction grinding and leveling (traditional processes require additional grinding, with a cost of about 2 yuan per square meter). Considering the maintenance cost of the equipment itself, the overall cost is saved by 2-3 yuan per square meter compared to traditional processes. Taking the construction of a 10,000 square meter factory building as an example, the comprehensive cost can be saved by 20,000 to 30,000 yuan.
Summary: The core logic of "low" maintenance costs
Shandong Vanse walk-behind laser leveling machine achieves controllable later maintenance costs through "high-durability components + simplified maintenance design + free after-sales support"
The cost of regular maintenance (including consumables) is approximately 5 to 8 yuan per hour (calculated based on oil changes and filter cleaning every 100 hours).
In the absence of major malfunctions, the construction and maintenance cost per 10,000 square meters is approximately 200 to 300 yuan, which is much lower than the industry average of 500 to 800 yuan per 10,000 square meters. It is particularly suitable for long-term use in medium and small-sized construction sites (such as factories and underground garages), balancing economy and reliability.
Note:
The parameters provided in this document are for reference only and are not mandatory. Due to differences in technical characteristics between different brands and models of laser levelers, please consult the manufacturer for a suitable solution before actual operation. This reference document assumes no responsibility for any issues arising from failure to follow the manufacturer's instructions.
