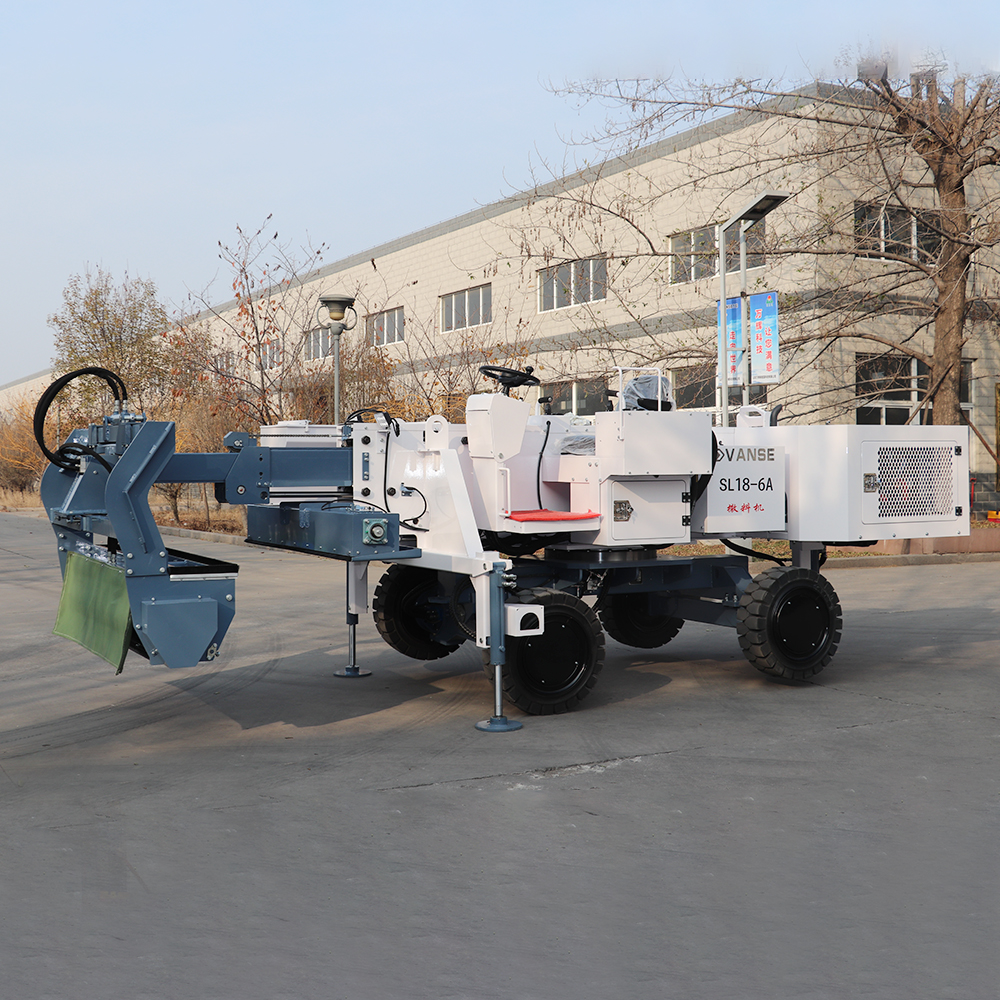

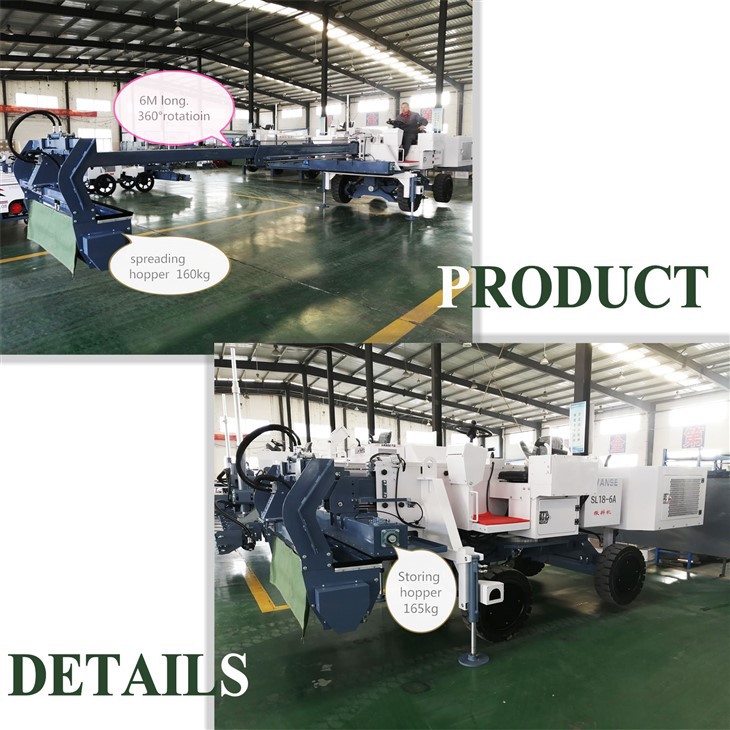

SL18-6A Compact Telescopic Spreader
6 m reach, 700 kg hopper, 1.8 m width, YANMAR 35.7 kW diesel, 4,410 kg, three-leg hydraulic lift, spray dust suppression. Designed for medium pours with limited site access.
Premium Components
Powered by globally verified parts (Cummins, Kohler, Trimble) for maximum durability.
±2mm High Precision
Integrated Trimble dual-slope alignment to achieve FM1 floor flatness effortlessly.
Global Network
Branches in Canada and Malaysia, with over 16 dedicated country-level agents.
Expert After-Sales
On-site expert installation, detailed operator training, and reliable lifetime parts dispatch.
-

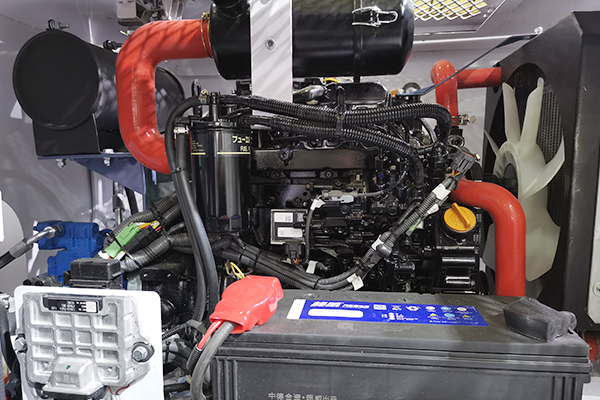

Powerful And Reliable Performance
Equipped with a YANMAR 4TNV94L engine delivering 35 kW (48 HP), it provides stable and abundant power for sustained, heavy-duty operations. -
Extended Operational Range
Features a large 80L diesel tank that minimizes refueling stops, effectively extending single-session runtimes and boosting continuous work efficiency. -

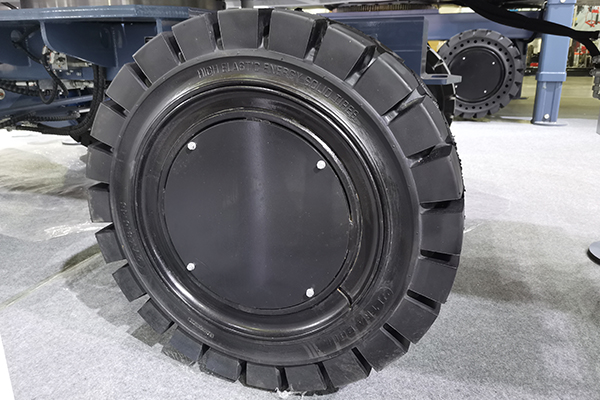

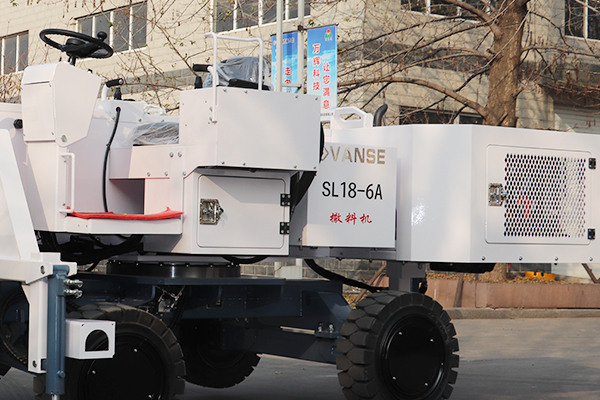

All-Terrain Safety Tires
Utilizes solid, puncture-resistant, and anti-slip tires; requiring no inflation, they completely eliminate the risk of blowouts—making them ideal for complex, rugged job site terrain. -

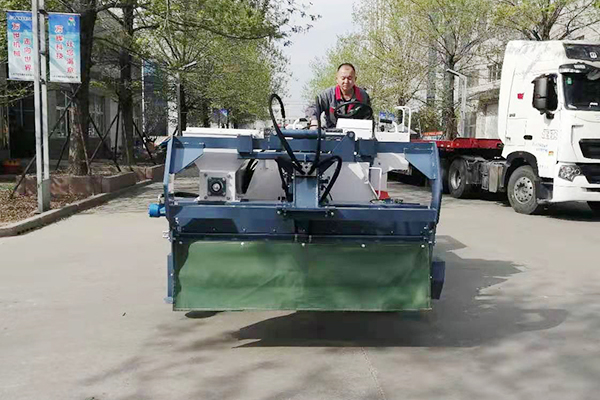

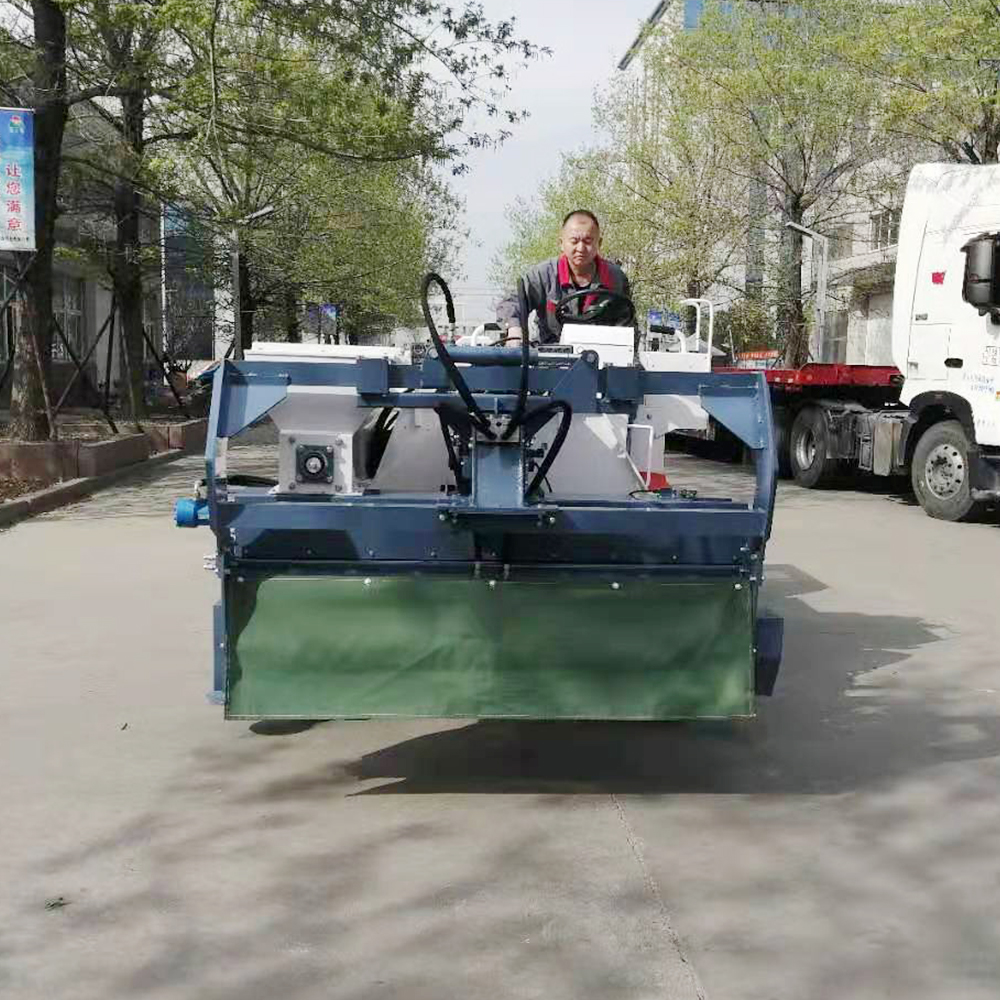

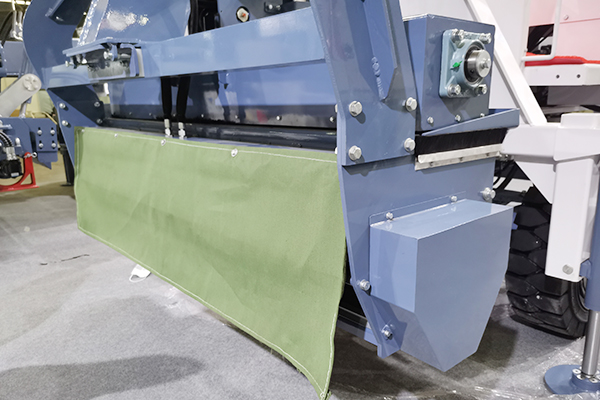

Efficient, Wide-Span Spreading
Offers a spreading width of 1,800 mm (approx. 5.91 ft), ensuring extensive coverage per pass and significantly enhancing operational efficiency. -

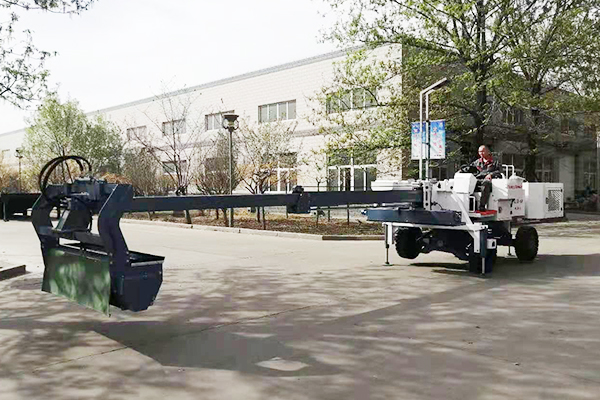

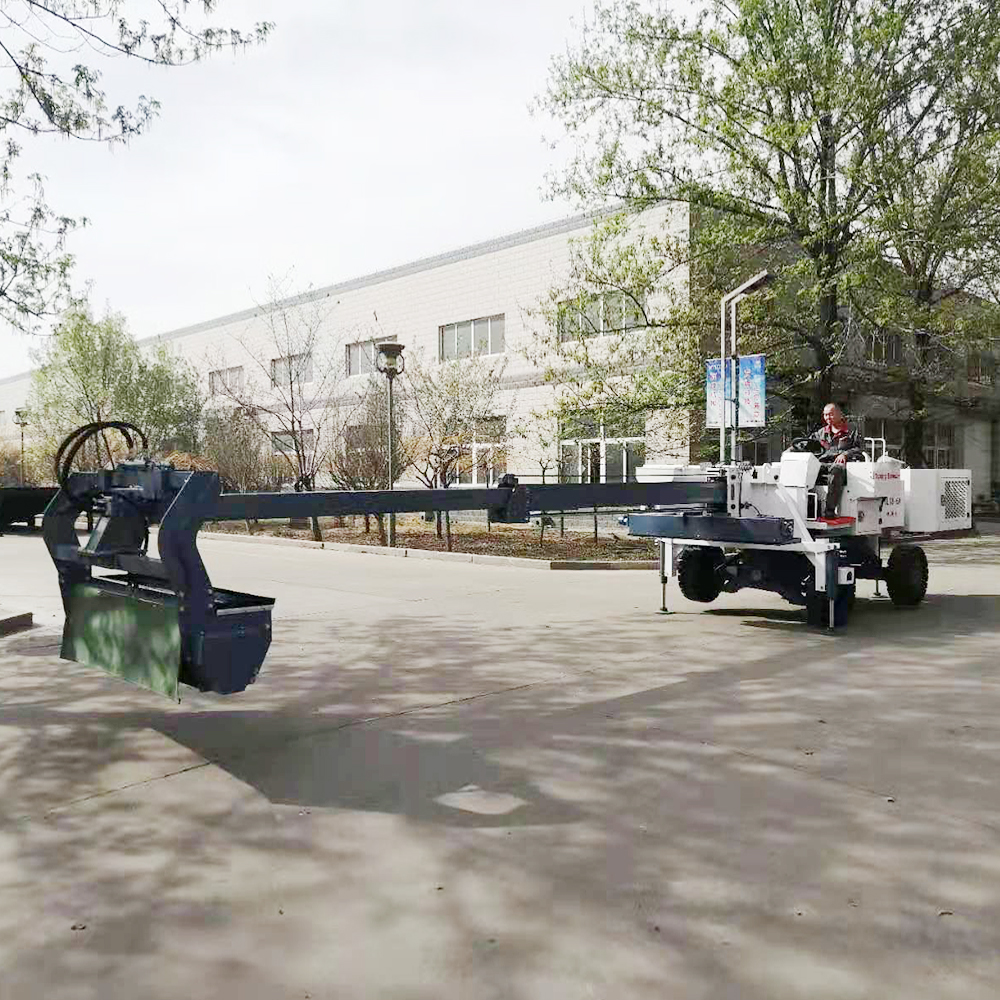

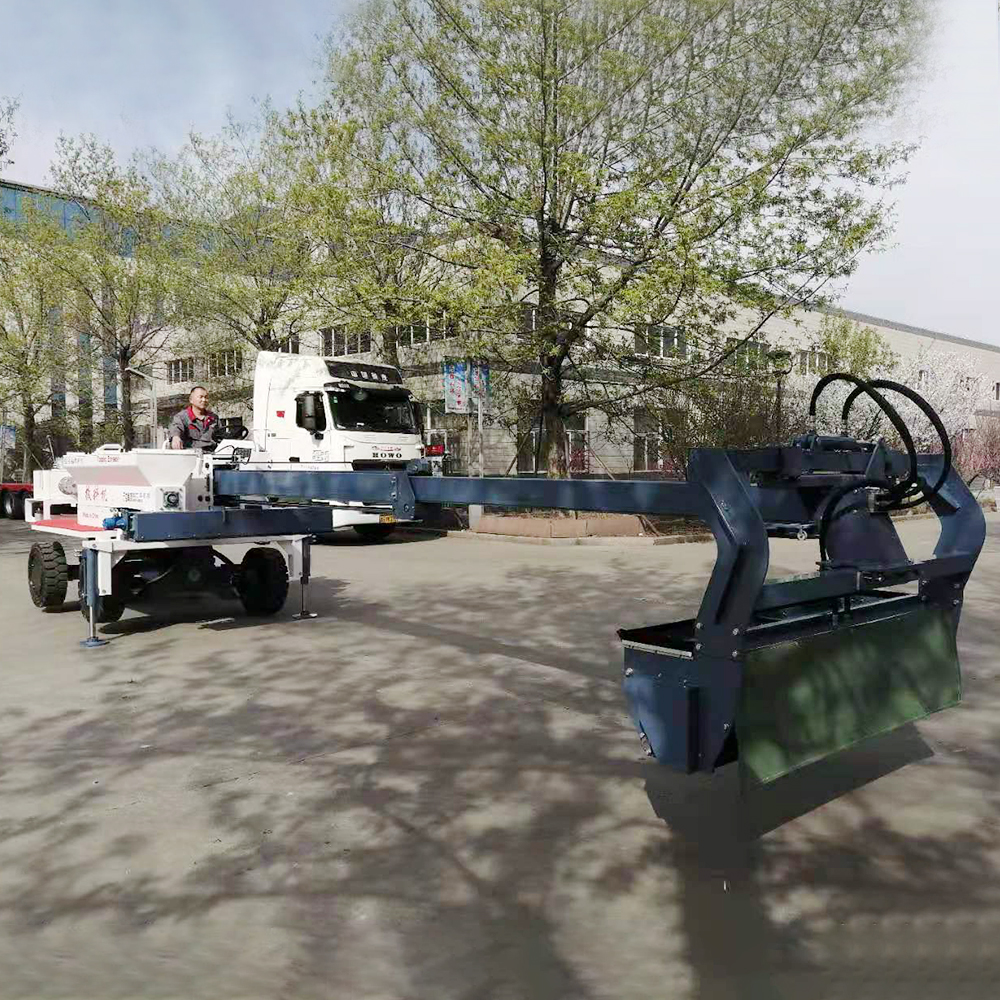

Flexible, Long-Reach Operation
Equipped with a 6-meter (approx. 20 ft) telescopic boom, it allows for flexible, long-distance material placement, expanding the equipment’s operational range and application versatility. -

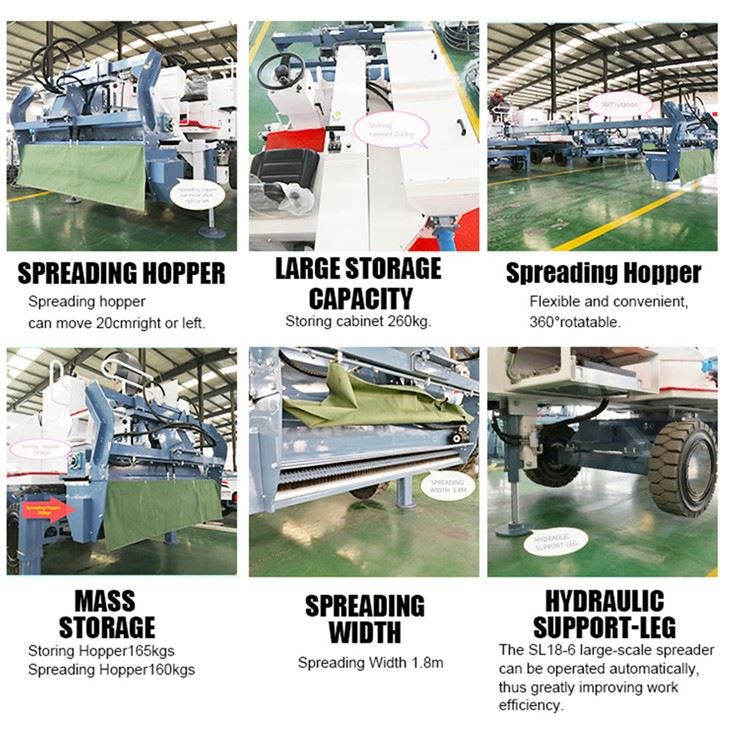

High-Capacity Hopper
Boasts a hopper capacity of 700 kg (approx. 1,543 lbs); the substantial single-load capacity reduces the frequency of reloading, improving overall operational cost-effectiveness.
VANSE SL18-6A Compact Telescopic Spreader — 6 m reach, 700 kg hopper, 1.8 m width, YANMAR 35.7 kW diesel, 4,410 kg, three-leg hydraulic lift, spray dust suppression. Designed for medium pours with limited site access.
Technical Specifications
| Item | Value |
| Engine | YANMAR 4TNV94L 35.7kW/48.55HP |
| Fuel Tank | 80 L |
| Spreading Width | 1,800 mm / 5.91 ft |
| Boom Length | 6.0 m / 20 ft |
| Hopper Capacity | 700 kg |
| Spreading Rate | 3–7 kg/m² |
| Steering | Two-wheel (hydraulic power assist) |
| Outriggers | Three-leg hydraulic lift |
| Net Weight | 4,410 kg |
| Dimensions | 5,244 × 2,300 × 1,870 mm |
| Dust Suppression | Spray system |
SL18-6A vs SL18-6
| Feature | SL18-6A | SL18-6 |
| Hopper | 700 kg | 1,500 kg |
| Weight | 4,410 kg | 5,460 kg |
| Outriggers | Three-leg hydraulic lift | Standard |
| Steering | Two-wheel assist | Two/four/crab |
| Fuel Tank | 80 L | 100 L |
| Positioning | Compact, urban sites | Full-feature, large projects |
