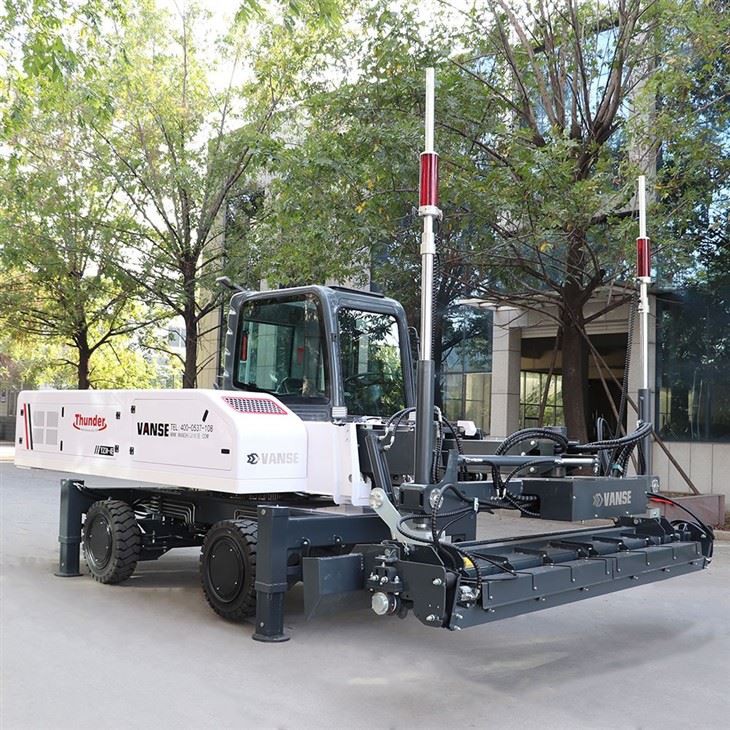

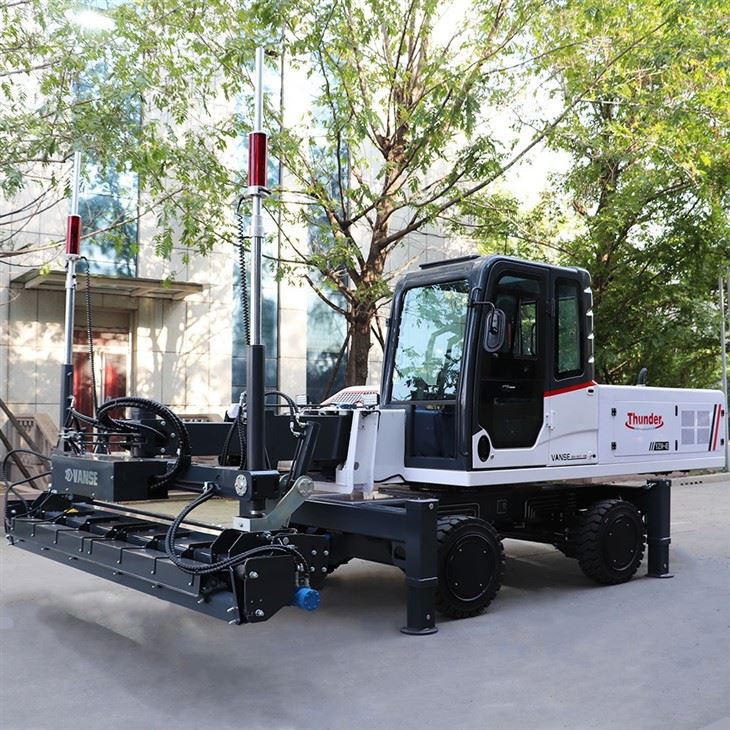

YZ30-4F Enclosed-Cab Boom Laser Leveling
3.1 m screed width, 6 m 360° boom, YANMAR 4TNV94L diesel engine, SLS self-leveling, 1.5 mm precision, and 18 sq.m/min working speed for industrial concrete floors.
Premium Components
Powered by globally verified parts (Cummins, Kohler, Trimble) for maximum durability.
±2mm High Precision
Integrated Trimble dual-slope alignment to achieve FM1 floor flatness effortlessly.
Global Network
Branches in Canada and Malaysia, with over 16 dedicated country-level agents.
Expert After-Sales
On-site expert installation, detailed operator training, and reliable lifetime parts dispatch.
-

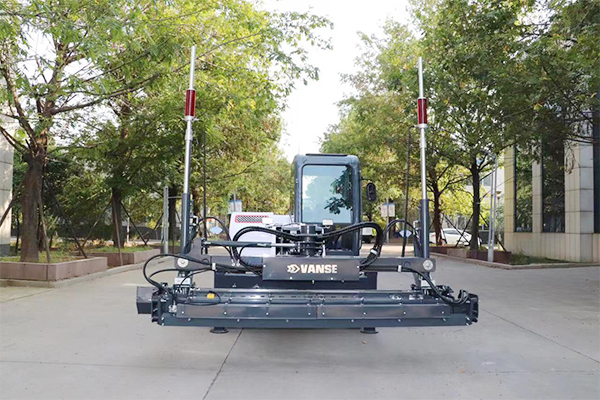

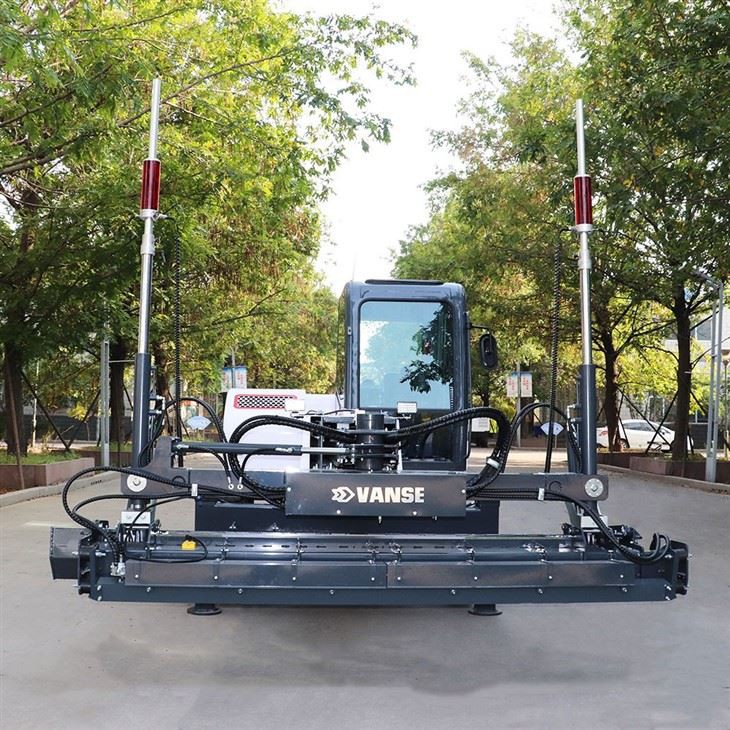

Efficient Leveling And Precision Control
Boasts a 3100mm paving width and utilizes an auger-based paving method; paving speeds reach up to 18m/min with a working head control precision of 1.5mm, significantly boosting construction efficiency. -

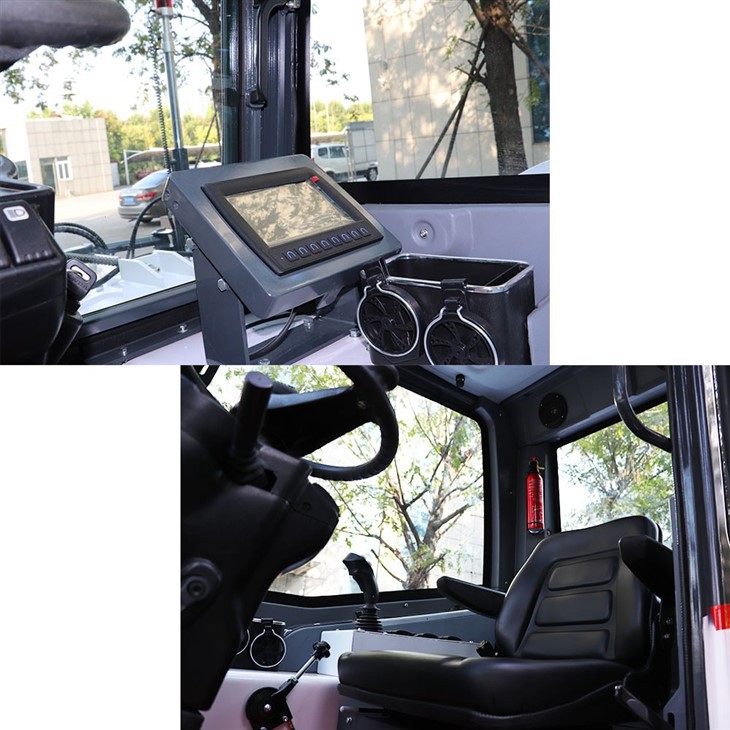

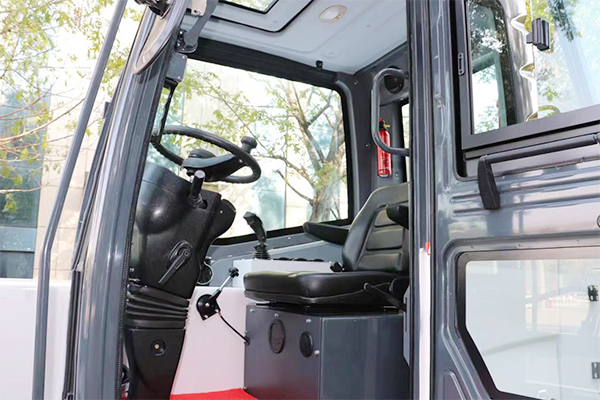

User-Friendly Operator Environment

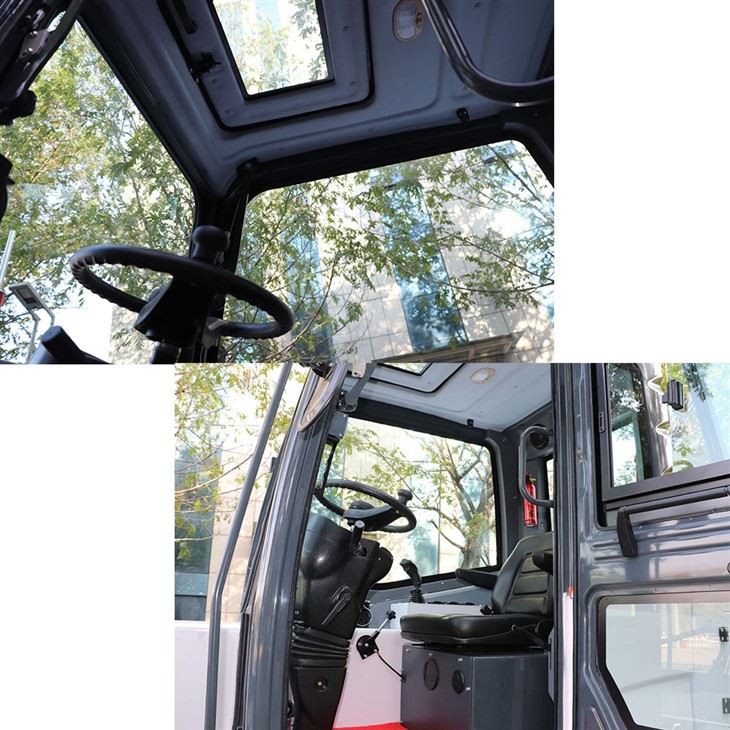

Includes an air-conditioned cabin with a glass roof, ensuring comfort in both winter and summer. The interior features an integrated control panel with a user-friendly interface for easy operation, as well as a dedicated onboard fire extinguisher for safety. -

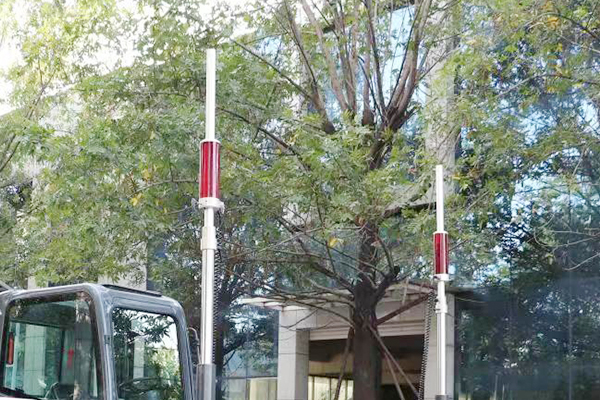

Precision Laser Leveling System
Equipped with a microcomputer laser scanning system—compatible with customized setups from major brands like Trimble, Leica, and Moba—to guarantee absolute flatness of the finished surface. -

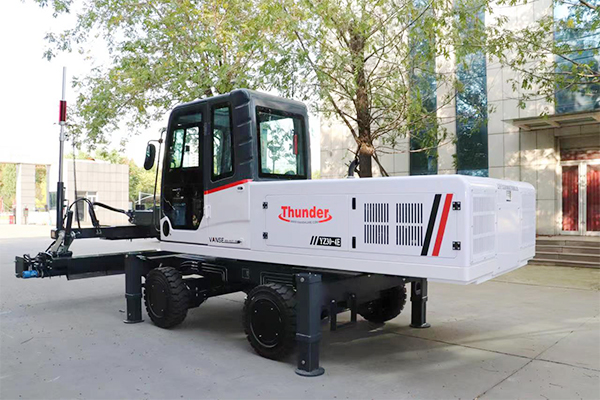

Flexible, Multi-Angle Operation
The working head offers a 120° swing range, and the control system combines microcomputer and manual modes, allowing for stepless speed regulation of forward/backward movement, steering, and boom extension/retraction.
VANSE YZ30-4F Concrete Laser Screed – 3.1 m screed width, 6 m 360° boom, YANMAR 4TNV94L diesel engine, SLS self-leveling, 1.5 mm precision, and 18 sq.m/min working speed for industrial concrete floors.
Technical Specifications
| Item | Value |
| Name | Concrete Laser Screed |
| Type | YZ30-4F |
| Engine Type | YANMAR 4TNV94L |
| Characteristic | 4 Stroke, 4 Cylinder |
| Cooling System | Closed Cooling Liquid |
| Power | 34 kW / 2800 rpm |
| Fuel | Diesel |
| Fuel Tank Volume | 100 L |
| Engine Oil Volume | 2.4-5.3 L |
| Leveling System | SLS (self leveling system) |
| Screed Width | 3.1 m |
| Telescopic Boom | 6 m long, 360° rotation |
| Screed Swing Angle | Left swing 45°, right swing 75° |
| Paving Mode | Hydraulic screw conveyor paving |
| Paving Thickness | 5-40 cm |
| Leveling Precision | 1.5 mm |
| Vibrating System | Hydraulic eccentric vibrating beam |
| Excitation Force | 3000 N |
| Vibration Frequency | 60 Hz |
| Configuration | Laser emitter & receiver, tripod |
| Laser System | Trimble, Leica, Moba optional |
| Laser Control System | Microcomputer laser scanning |
| Applicable Scope | Flat surface, slope, double slope |
| Drive Type | Full hydraulic drive |
| Soft Landing | Soft landing system |
| Mini Turning Radius | 2.6 m |
| Cooling Liquid Tank | 150 L |
| Tyre | Solid puncture-proof & antiskid tyre |
| Walking Speed | 3 km/h |
| Working Speed | 18 sq.m/min |
| Speed Control | Stepless speed change |
| Turning | 2-wheel / 4-wheel / crab turning |
| Clean Machine | Self configuration of machine |
| Theoretical Flow | 12 L/min |
| Rated Pressure | 15 MPa |
| Outline Dimension | 5550*3700*1870 mm |
| Net Weight | 5200 kg |
| Packing List | 8000*2250*1870 mm |
| Shipping Weight | 5500 kg |
Construction Efficiency (From Detail Sheet)
| Metric | Data |
| Working speed | 18 sq.m/min |
| Walking speed | 3 km/h |
| Paving thickness | 5-40 cm |
| Leveling precision | 1.5 mm |
Key Differentiators
3.1 m: screed width with a 6 m telescopic boom and 360° rotation for medium to large industrial floor pours.
SLS self-leveling: system with microcomputer laser scanning supports flat, slope, and double-slope surfaces.
Hydraulic screw: conveyor paving, hydraulic eccentric vibrating beam, 3000 N excitation force, and 60 Hz vibration frequency help complete spreading, vibration, and leveling in one pass.
Full hydraulic: drive with 2-wheel, 4-wheel, and crab steering plus 2.6 m minimum turning radius improves maneuverability on active jobsites.
Soft landing: system, solid puncture-proof antiskid tyres, stepless speed change, and onboard cleaning system improve operation stability and maintenance efficiency.
Applicable Scenarios (From Detail Sheet)
| Project Type | Specific Scenarios |
| Surface type | Flat surface, slope, and double slope concrete floor construction. |
| Project type | Industrial plants, logistics warehouses, parking structures, large-span commercial floors, and other medium to large slab pours. |
| Operating condition | Projects requiring laser-controlled elevation, hydraulic paving and vibration, and flexible machine turning in active jobsite space. |
Key Component Brands & Origin
| Component | Brand | Origin |
| Engine | YANMAR 4TNV94L | Japan |
| Laser system | Trimble / Leica / Moba optional | International |
| Drive and leveling | Full hydraulic drive + SLS self-leveling | VANSE integrated system |
FAQ
Q: What is the leveling width of the YZ30-4F?
A: The screed width is 3.1 m, paired with a 6 m boom that supports 360° rotation.
Q: What leveling precision can it reach?
A: The detail sheet specifies 1.5 mm leveling precision.
Q: Which laser systems can be used?
A: Trimble, Leica, and Moba laser systems are listed as optional configurations.
Q: What turning modes does it support?
A: It supports 2-wheel, 4-wheel, and crab turning, with a 2.6 m minimum turning radius.
Shandong VANSE Group Overview
| Founded | 2013, National High-Tech Enterprise (China) |
| Business Scope | R&D, Manufacturing, Sales, and Global After-Sales Services of high-end integrated concrete leveling and finishing equipment. |
| Key Clients | JD Logistics, CATL (Ningde Times), Great Wall Motors, CSCEC (China State Construction Engineering Corporation), and other mega-scale industrial operators. |
| Overseas Branches | Southeast Asia Regional Office (Malaysia) and North America Office (Canada), alongside 16 authorized global country agents. |
| Export Footprint | Exported to 80+ countries including the United States, Mexico, Brazil, United Kingdom, Spain, Germany, Russia, Australia, Saudi Arabia, and South Africa. |
| Technical Cooperation | Formed a deep strategic partnership with British precision machinery experts in 2018 to integrate international high-end hydraulic and automatic laser control technology. |
| University Research | Collaborates continuously with Shandong University and Chang’an University to promote industry-academia-research integration and smart machinery engineering. |
| Certifications | ISO 9001 International Quality Management Certification, CE (European Conformity), and EPA compliance. |
| Precision Standard | Achieves ±2 mm floor flatness standard for laser screeds, and up to ±0.1 mm precision alignment via advanced 3D laser system upgrades. |
| Emission Compliance | Complies with EU Stage V, US EPA Tier 4, and China NR IV standards under a unified modular configuration for global operational eligibility. |
| Group Divisions | Vanse Machinery, Wanhui New Energy, Wanli Precision Machinery, and Vanse Road & Bridge Construction. |
