CSJ-A Sinusoidal Expansion Joint Armour Joint& AFJ
Cast-in steel joint with S-profile cover plate, permanent edge protection, noise-reducing for AGV traffic. Diamond/rectangular/round column isolators for crack prevention. Pre-embedded = saves one post-cutting procedure.
Premium Components
Powered by globally verified parts (Cummins, Kohler, Trimble) for maximum durability.
±2mm High Precision
Integrated Trimble dual-slope alignment to achieve FM1 floor flatness effortlessly.
Global Network
Branches in Canada and Malaysia, with over 16 dedicated country-level agents.
Expert After-Sales
On-site expert installation, detailed operator training, and reliable lifetime parts dispatch.
-
AFJ TYPE

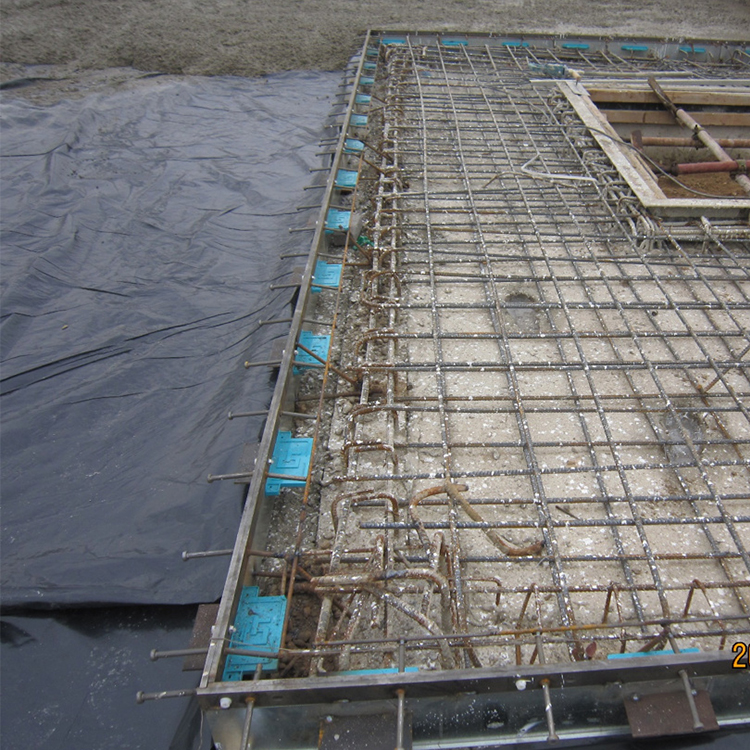

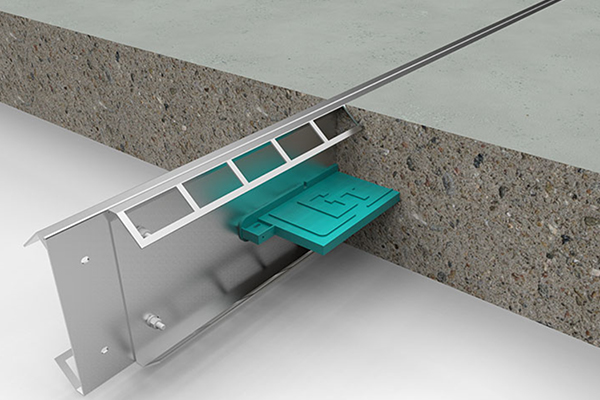

AFJ type of armour joint is composed of angle protection flat steel, floor comparment joint steel plate, force transmissionsteel plate, force transmission plate free expansion sheath. easy-to-break plastic bolts, anchor bolts,etc. Afer the systemis installed, each compartment block of the floor can be freely expanded and contracted in both vertical and horizontaldirections to avoid cracks. -
BAFJ TYPE

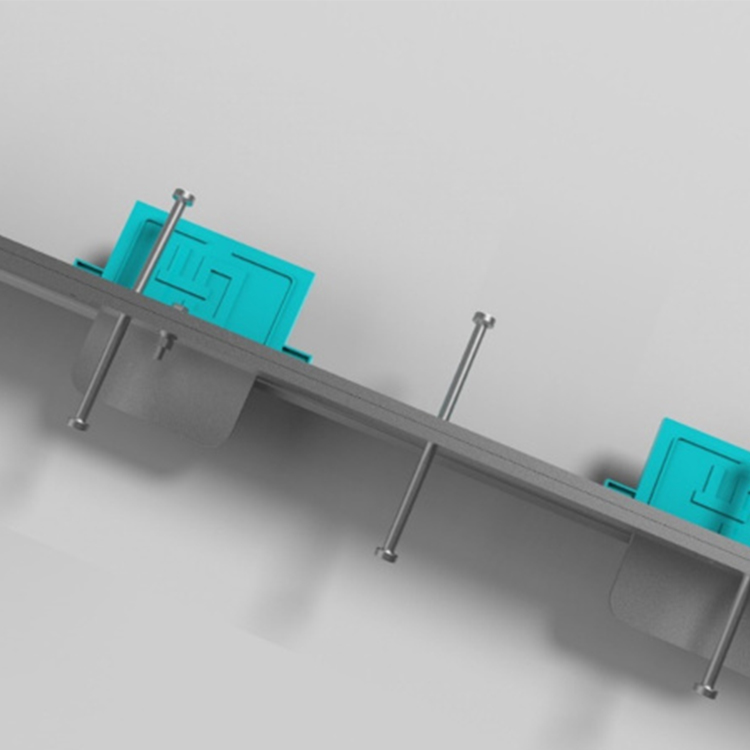

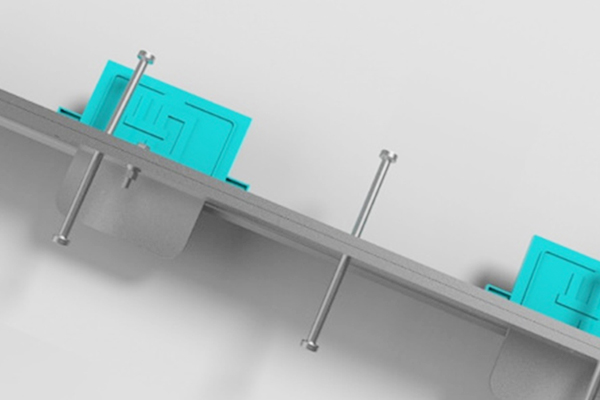

This expansion joint system consists of joint-forming steel plates, load-transfer plates, sleeves allowing for free movement, and breakable plastic bolts. The joint-forming plates are typically made of 2–3 mm thick galvanized or stainless steel; through a process of punching and bending, they integrate anchoring, edge protection for the concrete, and formwork functions into a single unit. Once installed, the system allows individual floor slabs to expand and contract freely in both longitudinal and transverse directions, thereby preventing the formation of cracks. -
S-TYPE

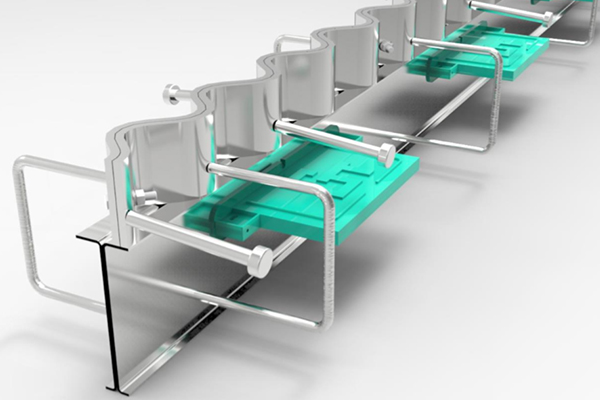

S type of armour joint is a new type of floor expansion joint system, which has the edge protection and anti-settlingforce transmission functions of traditional armour joints it noise-free function. The upper part is composed of twospecially formed S-shaped corrugated high-precision flat steels which form an edge protection and noise preventionsystem. The S-shaped fat steel is anchored to the concrete through the anchor bolts and U-shaped threaded steelbars welded on it. The lower part is composed of two split steel plates, a force transmission plate and a forcetransmission sleeve. The upper and lower parts are connected by welding and U-shaped steel bars. The left and rightparts of the S-shaped corrugated high-precision flat steel and the two split steel plates are connected by easy-to-breaknylon bolts -
COLUMN ISOLATOR

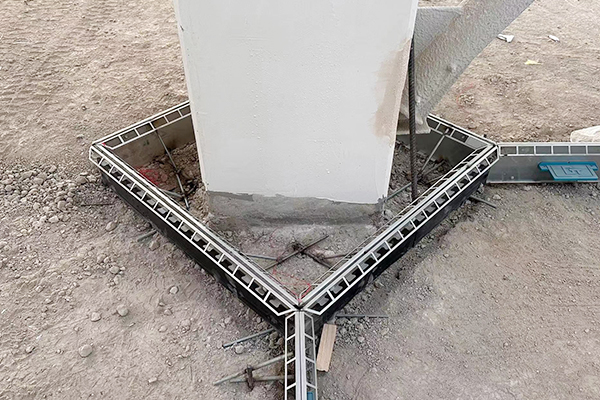

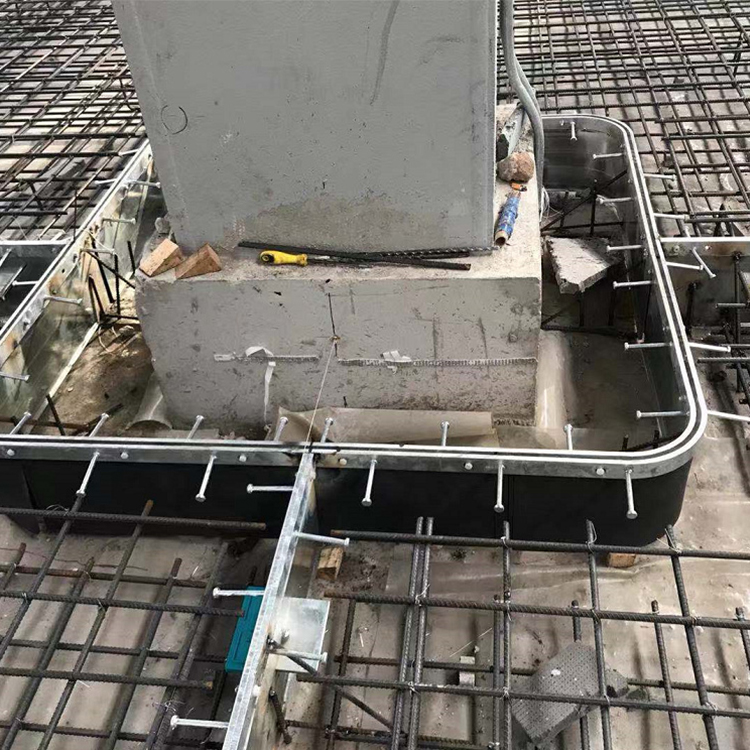

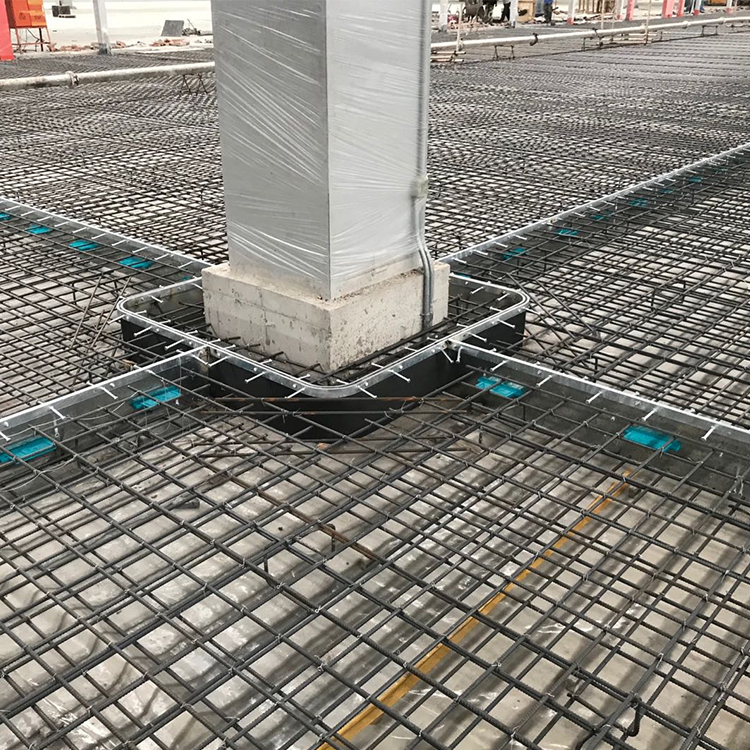

Column isolator is a pefect solution for prevention of cracks at corners of column, pit and machine fundation. AFJ diamond. rectangular and round column isolator can be used for isolating columns under different conditions.
VANSE CSJ-A Sinusoidal Expansion Joint System & Column Isolator — cast-in steel joint with S-profile cover plate, permanent edge protection, noise-reducing for AGV traffic. Diamond/rectangular/round column isolators for crack prevention. Pre-embedded = saves one post-cutting procedure.
Product Description
Expansion Joint CSJ-A:
Pre-embedded sinusoidal expansion joint for building floor structural deformation joints. Composed of cover plates (left/right pre-embedded + center movable), connecting angle steel, joint separation plates, and shear-resistant anchor bolts. S-profile edges accommodate larger joint widths; movable cover plate allows free expansion/contraction.
Column Isolator AFJ:
Diamond/rectangular/round column isolators to prevent cracking at column bases, foundation pits, and equipment foundation corners.
Materials
| Component | Material |
| Cover Plates | Steel (pre-embedded + movable) |
| Connectors | Angle steel + joint separation plates |
| Anchoring | Shear-resistant anchor bolts |
Applicable Scenarios
Industrial plant floors, logistics warehouse floors, AGV pathways, parking lots, super-flat floors.
Efficiency Gain
Pre-embedded construction eliminates one post-cutting + joint-filling procedure, reducing schedule by ~1–2 days per 1,000 m². S-profile cover plate reduces AGV impact force by ~60%, extending floor service life.
