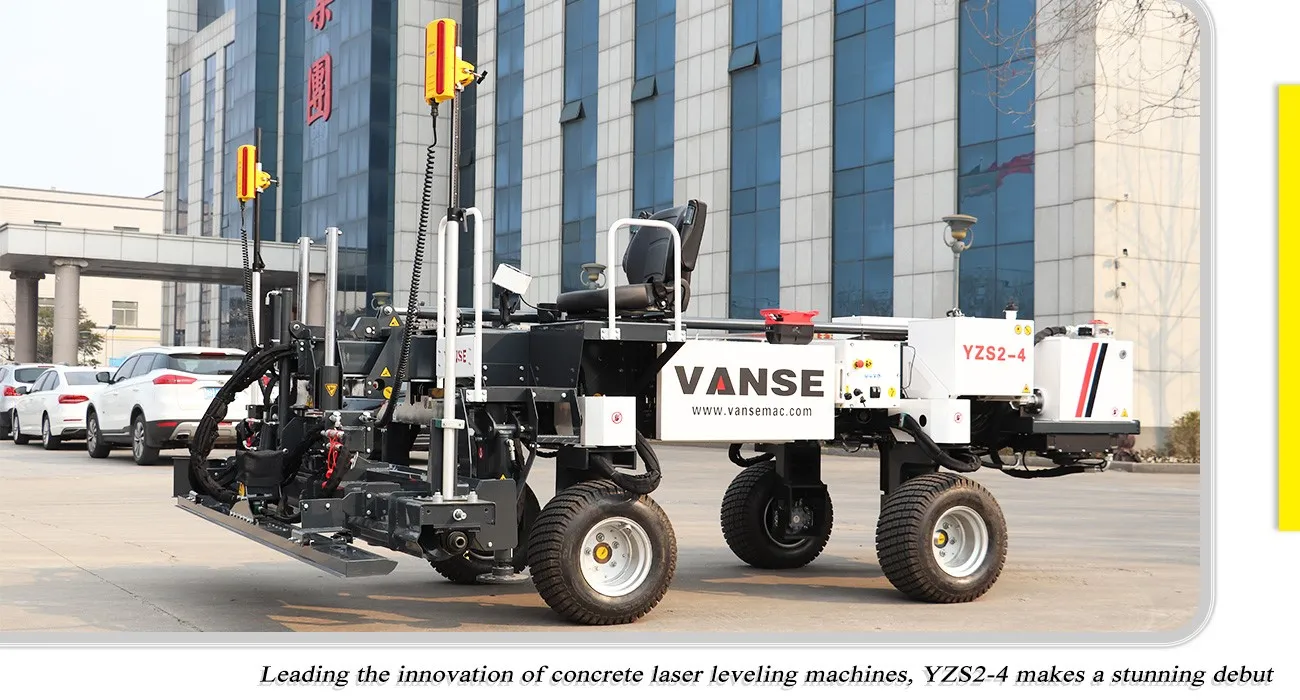

Shandong Vanse Machinery Technology: Leading the innovation of concrete laser leveling machines, YZS2-4 makes a stunning debut

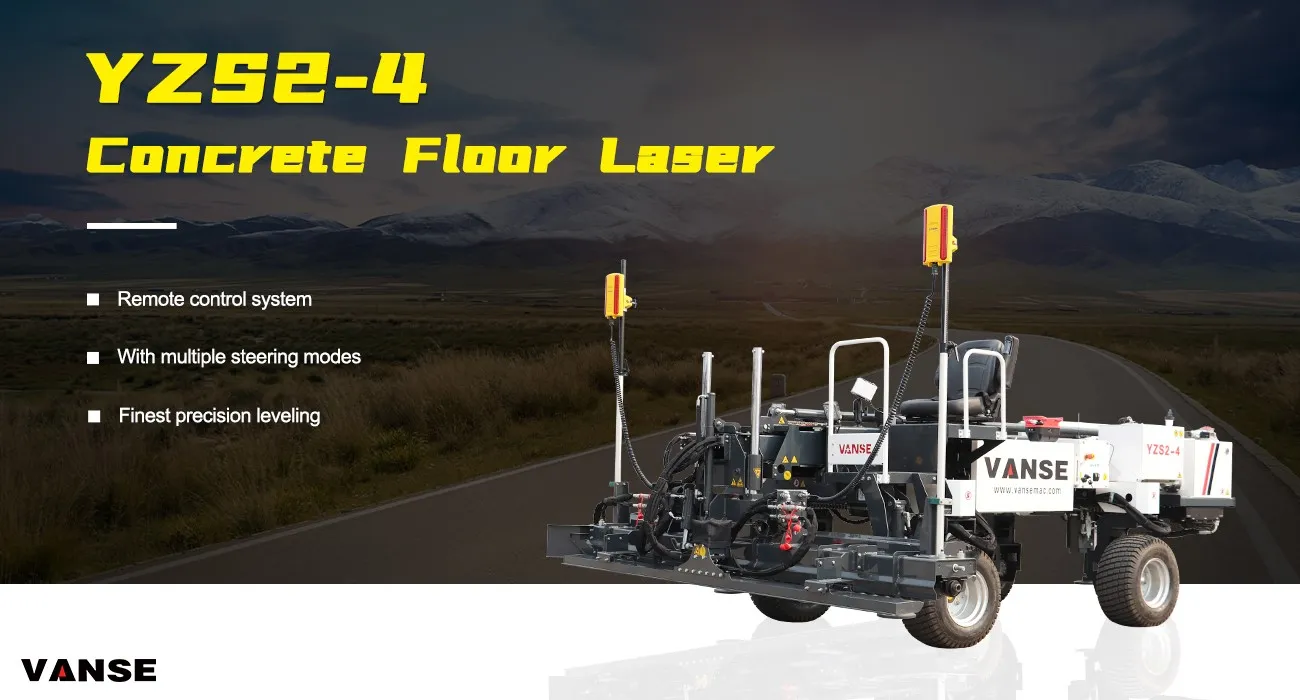

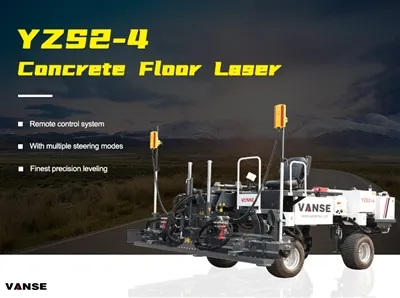

Recently, the company successfully launched a high-performance Boom type concrete laser leveling machine —- YZS2-4. This equipment not only combines advanced technology and excellent design concepts, but also shows significant advantages in performance, operation, environmental protection and other aspects, bringing new solutions to the global concrete construction industry.
New Research And Development, New Design–YZS2-4 8
The YZS2-4 weighs only about 2.3 tons including the cab and luggage compartment. It adopts a high-strength and lightweight design, which greatly improves the convenience of equipment transportation while ensuring durability. Its four-wheel drive and anti-skid system can easily cope with various complex road conditions and ensure the stability and efficiency of the construction process. The walking system of Macchina livellatrice laser per calcestruzzo with braccio telescopico a controllo remoto (remote-controlled telescopic arm concrete laser leveling machine) adopts Danish DANFOSS two-way proportional control valve, with high-precision steering sensor, making the machine more flexible and easy to control, and the operator can easily control it.
New Research And Development, New Design–YZS2-4 9
The machine has a powerful power configuration, equipped with a YANMAR 3TNV80F 17.8kW/3000RPM vertical 4-stroke water-cooled diesel engine, which meets the Euro V, US IV and National IV emission standards. The Laser-Nivelliermaschine für Beton mit Teleskoparm (concrete laser screed machine with telescopic arm) can meet the environmental protection requirements of almost all countries in the world. The 70L fuel tank capacity provides reliable guarantee for long-term continuous operation.
New Research And Development, New Design–YZS2-4 10

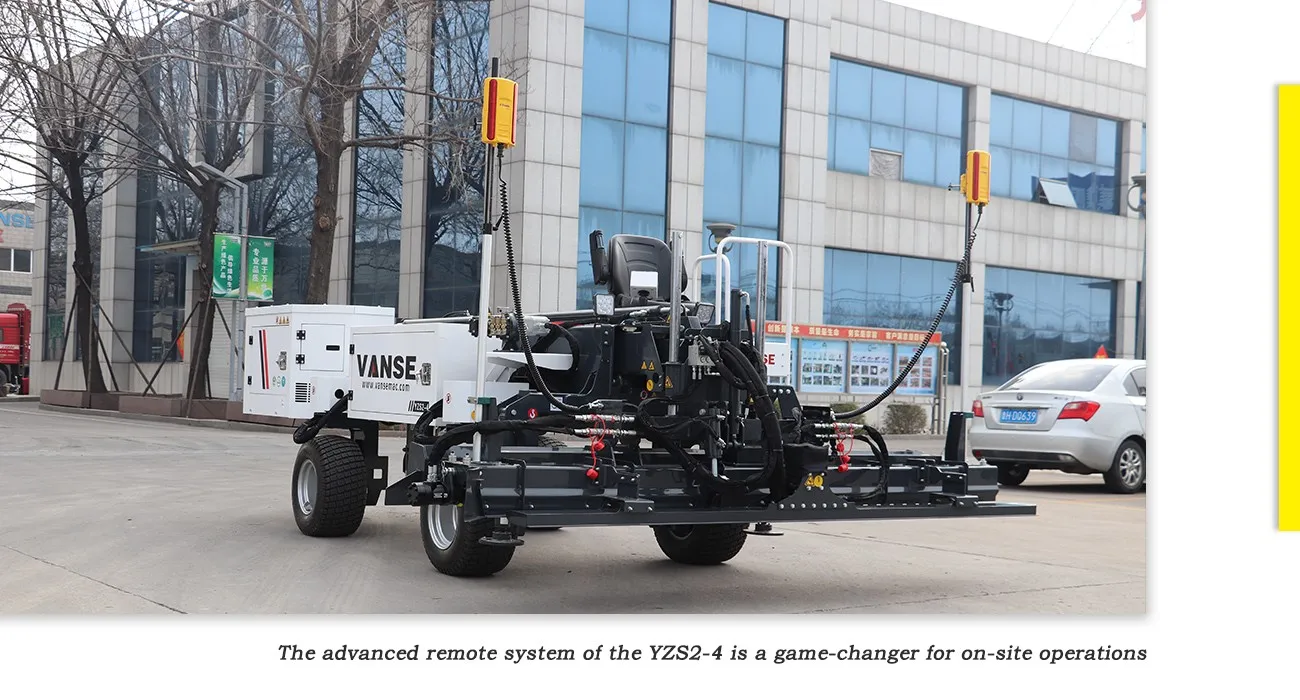

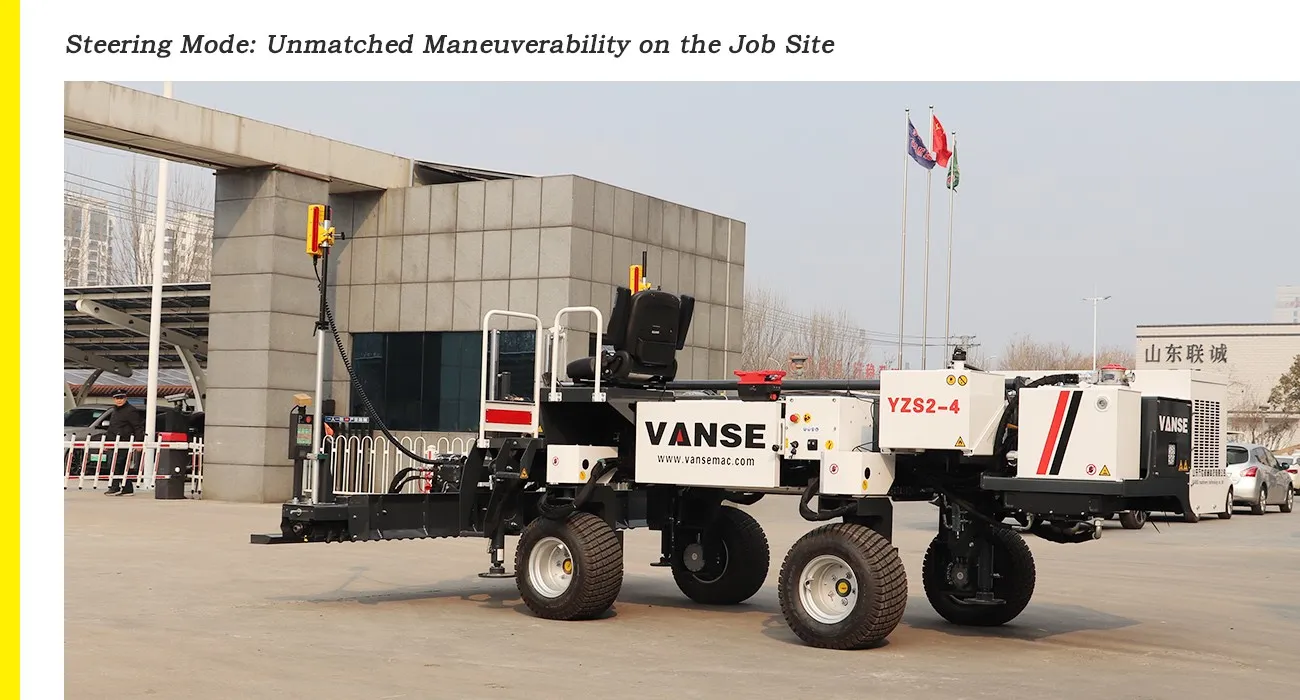

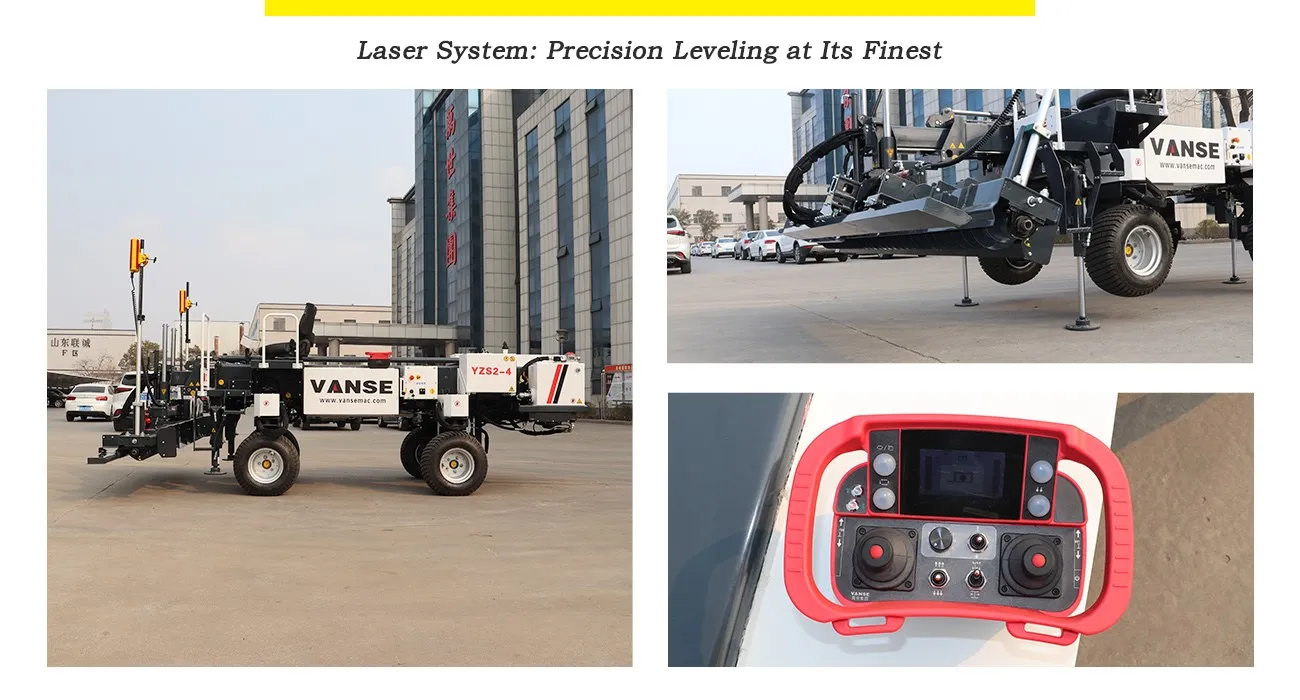

The laser control system of YZS2-4 is equipped with a full set of American Trimble laser systems, and can also choose Swiss Leica and German Moba full set of laser systems. Combined with the advanced Danish DANFOSS control system and logic, it can accurately control the height of the scraper plate and achieve high-precision ground flatness. The steering control system supports two-wheel, four-wheel or crab-shaped steering, can rotate 360°, and can move horizontally up to 90 degrees, making it more flexible and easy to operate.
New Research And Development, New Design–YZS2-4 11

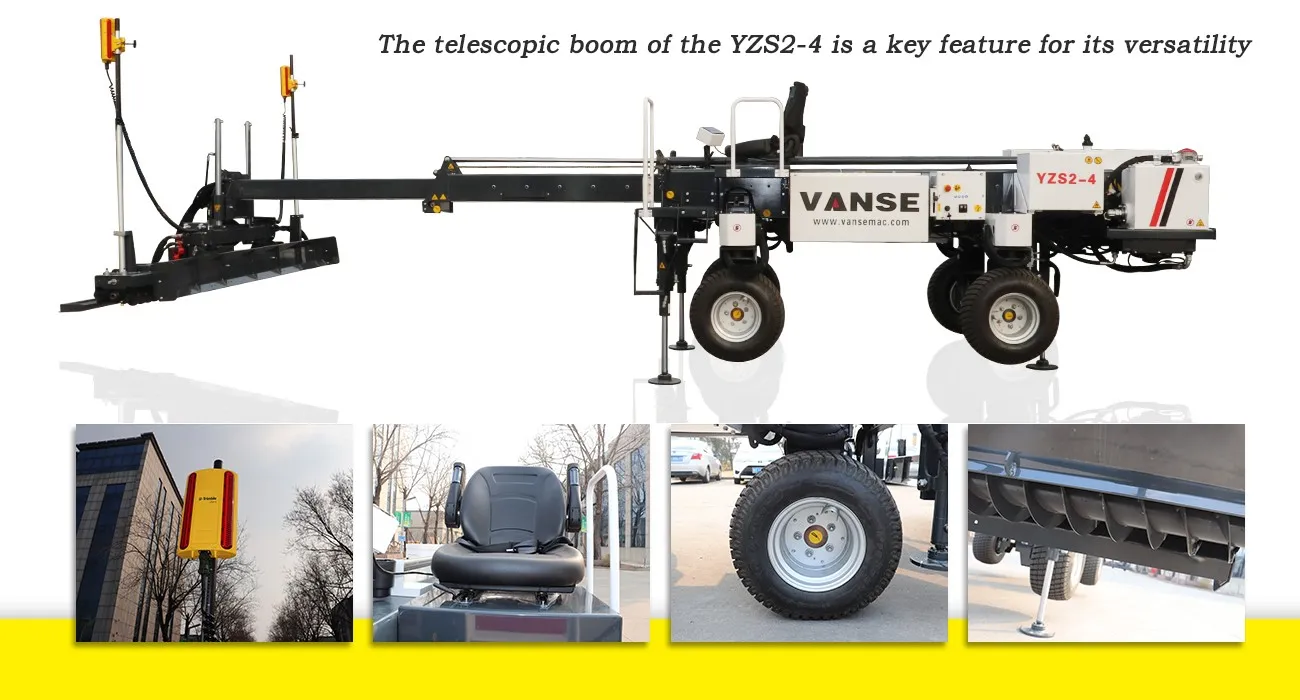

YZS2-4 also excels in design details. The suspended wheels give the equipment extremely high passability; the hydraulic control of the work head lifting saves workers' effort; the telescopic arm adopts high-strength steel plate and roller telescopic system, the guide rail and bottom rail grinding accuracy can reach 0.08 mm, the resistance is very small, the telescopic is smooth and the fuel consumption is reduced; the quick-release design of the work head is convenient for rapid transportation. In addition, the standard seat, comfortable driving position, two-stage footrest system, double armrest design and large pressure washer and other configurations have comprehensively improved the operator's comfort and construction efficiency.
New Research And Development, New Design–YZS2-4 12
The YZS2-4 concrete laser leveling machine launched by Shandong Vanse Machinery Technology Co., Ltd. will surely become a new favorite in the field of concrete construction with its excellent performance, innovative design and user-friendly configuration, bringing better construction experience and higher economic benefits to global customers.
About the Author: Shandong Vanse Machinery Technology Co., Ltd.
Shandong Vanse Machinery Technology Co., Ltd. is a high-tech manufacturer specializing in concrete construction machinery, including laser screeds and related equipment. The company integrates R&D, production, and global sales, with products exported to over 60 countries and widely used in infrastructure projects worldwide.
