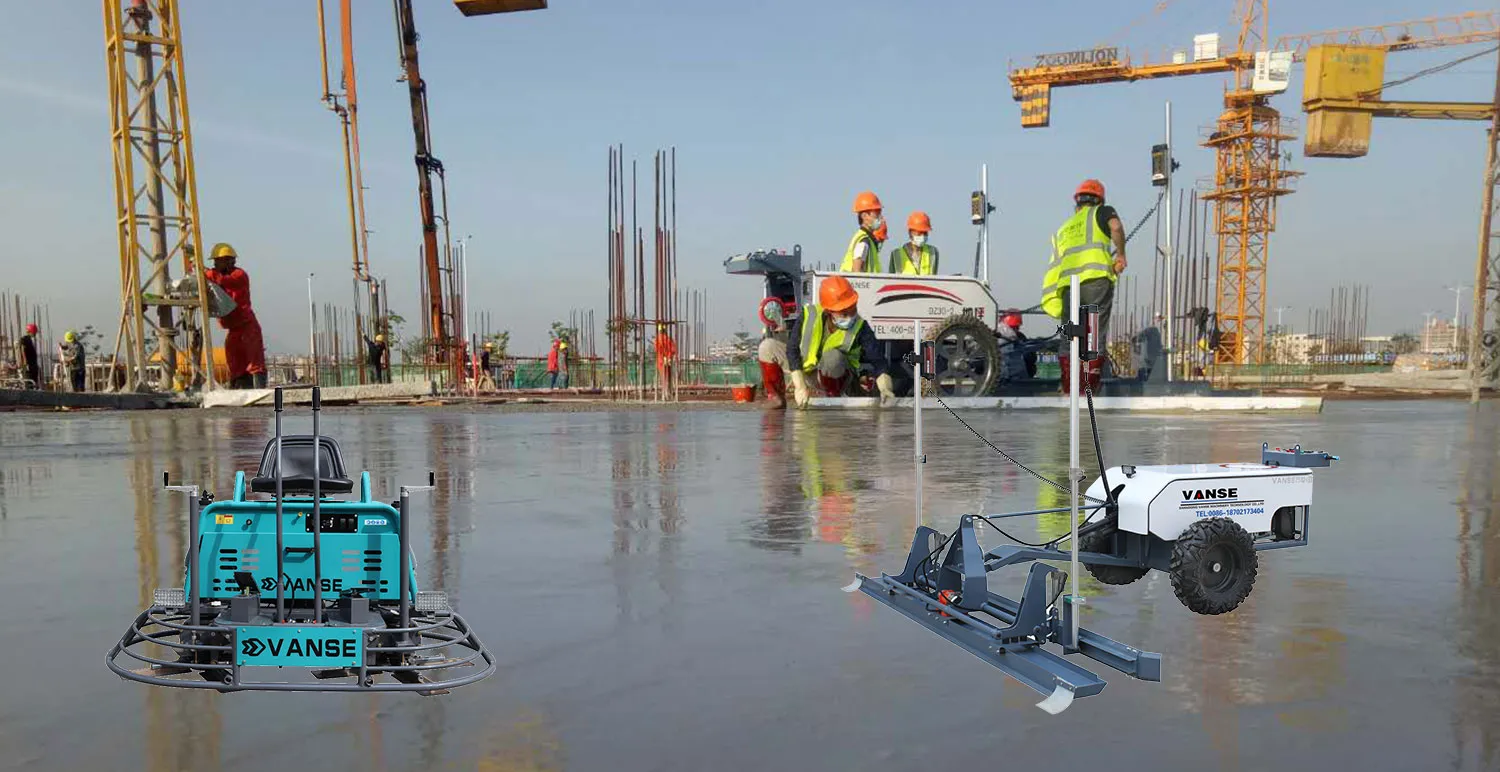

How to deal with the ground after the construction of a concrete laser leveler?
February 26, 2025
How to deal with the ground after the construction of a concrete laser leveler? 2
The ground treatment after the construction of the concrete laser leveling machine is an important part of ensuring the quality of the floor. The following are the specific treatment methods
Polishing and finishing
– Polishing :When the poured and leveled concrete reaches the initial setting, the ground polishing process begins. First, use a single-disc polishing machine and a trowel disc to cross-break the slurry and trowel to ensure the flatness control of the machine operation process. Then, use a 3-meter scraper to rotate 360° to level the surface layer to achieve full control of flatness. After the first disc cross-trowel, professional technicians use a 3-meter scraper to fully level the compacted concrete surface layer. – Finishing :As the disc trowels, the machine uses a blade to smooth it. According to the speed of the strength increase, when the concrete theoretically reaches the final setting, the mechanical vertical knife method is used, combined with the machine speed and blade angle, to perform the final finishing on the surface layer.
Maintenance
– Moisturizing maintenance:After the floor is finished, use a maintenance blanket or a special maintenance non-woven fabric to cover it and water it to keep it moist. Concrete needs to be cured 12 hours after pouring. It can be covered with plastic cloth, watered, or sprayed for maintenance. The curing should be carried out for at least 7 days. – Temperature control:Ensure that the temperature difference between the inside and outside of the concrete is less than 25℃, assign a special person to watch over it, ensure that the concrete surface is clean and watered in place.
Finished product protection
– Cover protection:If the upper construction continues on the finished floor, it is necessary to strengthen the protection of the finished product. The paper fiberboard can be used to cover the entire system to protect the concrete surface. – Protective measures:When dismantling the shelf, you can use a protective bamboo fence to cover the entire range of the dismantled shelf, and throw the dismantled steel pipes and fasteners on the bamboo fence to prevent the steel pipes and fasteners from directly hitting the "clear water concrete" floor (ground).
Other treatments
– Anti-pollution treatment:If there are anti-pollution requirements for the finished floor (ground) surface, a special concrete sealing wax can be applied to the finished surface to form a surface wax coating to prevent pollution from damaging the floor (ground) surface. – Expansion joint cutting:After the concrete is finally set, the expansion joint is cut according to the design requirements to prevent the ground from cracking.
About the Author: Shandong Vanse Machinery Technology Co., Ltd.
Shandong Vanse Machinery Technology Co., Ltd. is a high-tech manufacturer specializing in concrete construction machinery, including laser screeds and related equipment. The company integrates R&D, production, and global sales, with products exported to over 60 countries and widely used in infrastructure projects worldwide.
