How do concrete laser leveling machines ensure high-precision leveling during operation?
Analysis of the mechanism for achieving high-precision leveling of concrete laser leveling machine
In the field of construction, concrete laser leveling machine (concrete laser leveling machine or concrete laser leveler) has become a key equipment for improving the efficiency and quality of concrete construction. With the continuous advancement of global infrastructure construction and the growing demand for high-precision construction in the construction industry, the market size of concrete laser leveling machine continues to expand. According to market research reports, the global market size of concrete laser leveling machine is expected to reach US$1.76 billion in 2025, with an annual growth rate of approximately 11.4%. Its ability to achieve high-precision leveling mainly relies on the coordinated operation of the following key technologies and systems.
🎯 Laser positioning and reference system construction
⛳ (I) Laser transmitter establishes reference plane
The core of the concrete laser leveling machine is the laser transmitter, which can emit a high-precision rotating laser beam to build an absolutely horizontal reference plane above the construction area. This reference plane is like an invisible and precise "template", providing a constant elevation reference for subsequent leveling operations. For example, in the floor construction of large industrial plants, the laser transmitter is placed in the center of the construction site to ensure that the laser beam it emits can cover the entire construction area. The laser beam emitted by the laser transmitter is extremely accurate, and the deviation can usually be controlled at the millimeter level. For example, the laser accuracy of some high-end equipment can reach ±1mm, which lays a solid foundation for achieving high-precision leveling.
⛳ (II) Laser receiver captures signals in real time
The laser receiver equipped on the leveling machine is like the "eyes" of the equipment, always closely capturing the laser signal emitted by the laser transmitter. When the laser receiver receives the laser signal, it will immediately convert it into an electrical signal and quickly transmit it to the laser measurement and control system. During the construction process, the laser receiver always keeps real-time tracking of the laser signal, and can stably and accurately receive the signal even if the equipment moves on complex terrain. For example, when constructing on the uneven parking lot ground, the laser receiver can adjust the receiving angle in time according to the changes in the position of the equipment to ensure the continuity and accuracy of the signal, and provide reliable data support for the precise leveling of the equipment.
🎯 Operation of intelligent measurement and control and automatic adjustment system
⛳ (I) Analysis of deviation by laser measurement and control system
The laser measurement and control system is like the "brain" of the concrete laser leveler, responsible for in-depth analysis and processing of the signals transmitted by the laser receiver. It will compare the real-time received laser signal with the pre-set reference elevation and accurately calculate the deviation between the two. This process is extremely fast and can usually be completed within milliseconds. For example, when the laser measurement and control system detects that the actual elevation is 5mm higher than the reference elevation, it will immediately generate the corresponding adjustment instructions to provide a basis for subsequent automatic adjustments. The system has powerful computing power and can process data from multiple measurement points at the same time, ensuring that the elevation deviation of each point in a large construction area can be captured in a timely and accurate manner.
⛳ (II) Automatic adjustment of computer control system

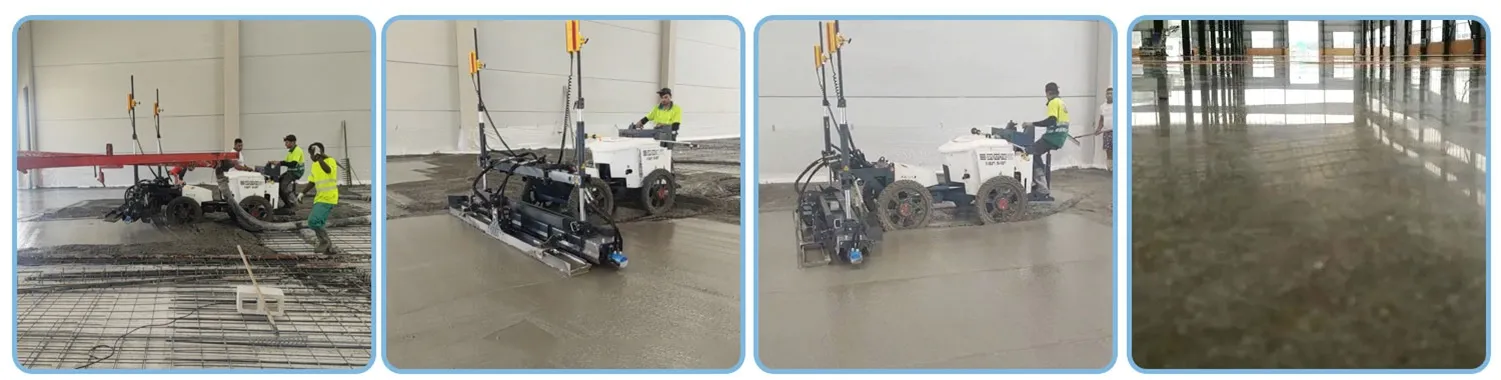

Based on the deviation information fed back by the laser measurement and control system, the computer control system of the concrete laser leveler will respond quickly and automatically adjust the height of the leveling head of the equipment accurately. The computer control system precisely adjusts the height of the scraper or leveling head to keep it consistent with the reference elevation by controlling the left and right linear actuators, such as hydraulic cylinders or electric push rods. This adjustment process is extremely accurate and efficient, and the computer control system can perform up to 10 real-time automatic elevation adjustments per second. Taking the ride-on concrete laser leveling machine as an example, when leveling a large area of the ground, the computer control system can independently control the height of the leveling heads on the left and right sides according to the elevation deviations at different locations to ensure that the ground can achieve high-precision flatness in both the longitudinal and transverse directions. For example, in the ground construction of a large logistics warehouse, the ground flatness reached a high-precision standard of ±2mm through the precise adjustment of the computer control system, far exceeding the accuracy level of traditional construction methods.
🎯 Efficient leveling and vibration integration operation

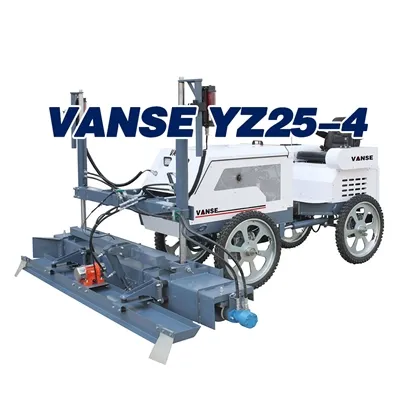

⛳ (I) Leveling head multi-component collaborative leveling

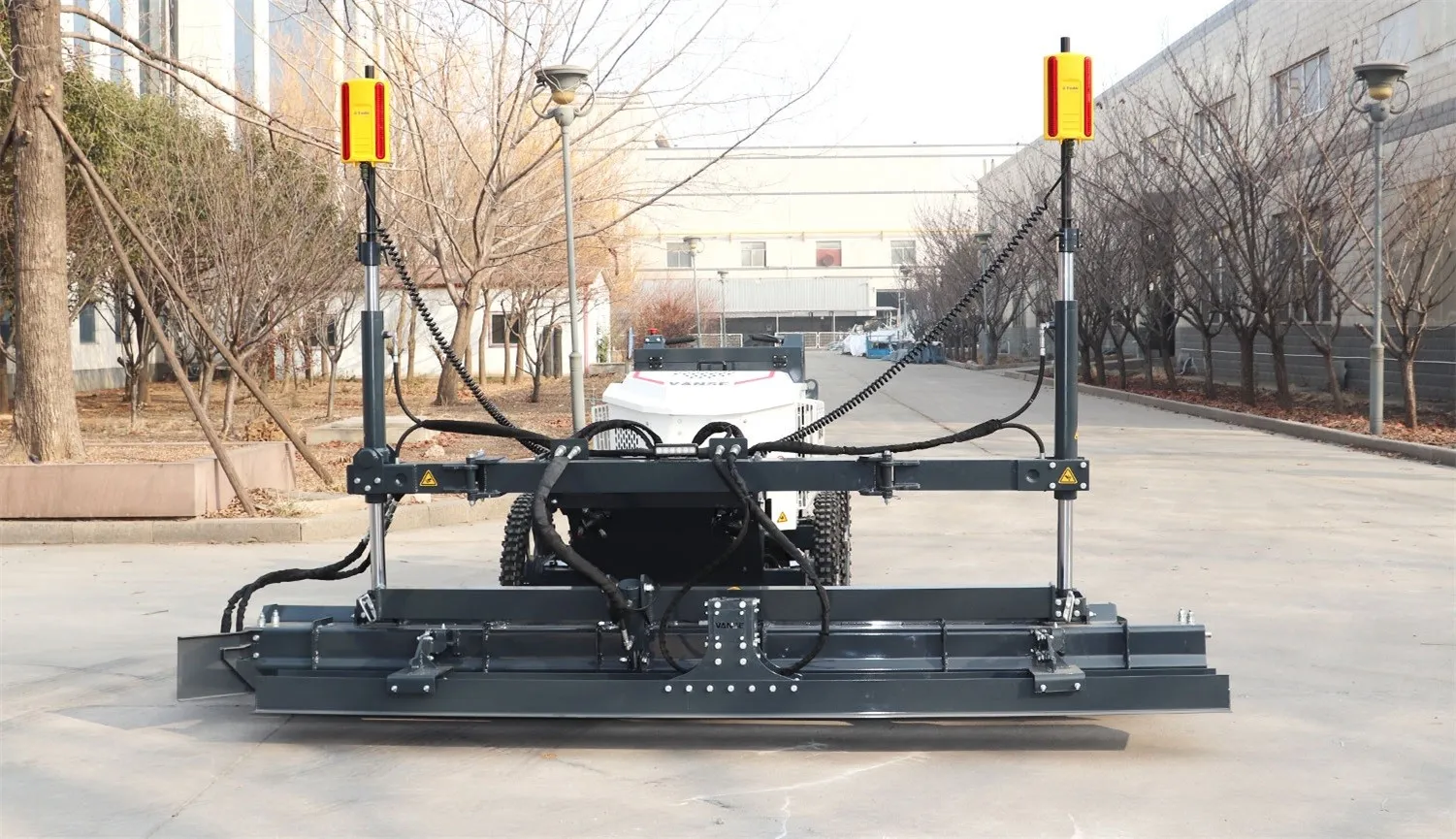

The leveling head of the concrete laser leveling machine integrates a variety of functional components to work together to complete high-precision leveling operations. The scraper is located at the front end of the leveling head. Its function is to initially scrape off the concrete that is higher than the reference elevation and spread the concrete roughly to the designed height. Next, the spreading spiral auger will spread the concrete evenly to ensure that the concrete is evenly distributed in the construction area. The vibrator vibrates the concrete in a high-frequency vibration mode, making the particles inside the concrete more dense and improving the strength and flatness of the concrete. Finally, the leveling head finely trims the concrete surface to further eliminate the surface unevenness. For example, in the concrete construction of a certain airport runway, the scraper of the leveling head first scrapes the concrete flat, and after the spreading spiral spreads the concrete evenly, the vibrator vibrates at a frequency of more than 3,000 times/minute, which greatly improves the density of the concrete. After being trimmed by the leveling beam, the surface flatness of the runway finally reaches an extremely high standard, meeting the stringent requirements of aircraft takeoff and landing.
⛳ (II) Vibration improves density and flatness
Strong vibration is an important part of the concrete laser leveling machine to achieve high-precision leveling. The high-frequency vibration generated by the vibrator can make the aggregates in the concrete interlock with each other, expel the internal air, and greatly improve the density of the concrete. The dense concrete base provides a stable foundation for high-precision leveling of the surface, reducing the problem of surface unevenness caused by concrete settlement or non-compactness. At the same time, the fluidity of concrete increases during the vibration process, which helps the leveling head to better shape and level it. For example, in the floor construction of large shopping malls, the concrete density has increased by more than 20% through the efficient vibration of the concrete laser leveling machine, and the surface flatness has also been significantly improved, providing a high-quality base for subsequent floor decoration projects.
🎯 Equipment structure design and stability guarantee
⛳ (I) Stable frame and walking mechanism
The concrete laser leveling machine has a sturdy and stable frame structure that can effectively bear the weight of the equipment itself and various forces during the construction process. The frame is usually made of high-strength steel and has been optimized with good rigidity and deformation resistance. The walking mechanism ensures that the equipment moves smoothly in the construction site, and its design fully considers the passability and stability under different ground conditions. For example, some large concrete laser levelers are equipped with wide crawler walking devices, which increase the contact area with the ground and reduce the ground pressure. They can work stably even on soft ground, avoiding the decrease of leveling accuracy caused by equipment shaking or sinking.
⛳ (II) Accurate control and feedback system
The operator controls the concrete laser leveler through a simple and precise control system. The control system can accurately receive the operator's instructions and convert them into actual actions of the equipment. At the same time, the equipment is also equipped with a variety of sensors, such as inclination sensors, displacement sensors, etc., to monitor the operating status of the equipment in real time and feedback the information to the operator. For example, the inclination sensor can monitor the inclination angle of the equipment in real time during the operation process. Once the angle deviation is found to exceed the allowable range, it will immediately send an alarm to the operator and automatically adjust the equipment posture through the control system to ensure that the leveling operation is always carried out in a high-precision state.
