Acceptance Standards And Acceptance Procedures For Concrete Laser Leveling Machines
Acceptance standards and acceptance procedures for concrete laser leveling machines
✔ Introduction
As an important equipment for modern floor construction, the concrete laser leveling machine's acceptance work is of great significance to ensure equipment performance and construction quality. This article aims to discuss the acceptance standards and acceptance process of concrete laser leveling machines, combined with specific cases, to provide practical reference for relevant personnel.
✔ Acceptance Criteria for Concrete Laser Leveling Machines
1. Equipment appearance inspection
The appearance of the equipment should have no obvious damage, deformation, rust, etc. The connecting fasteners of each part should be in good condition without looseness or falling off. The paint coating on the surface of the equipment should be even and free of peeling, blistering, etc.
2. Equipment performance check
The performance inspection of laser leveling machine mainly includes the following aspects:

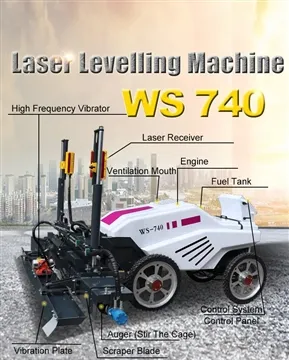

(1) Laser system: The laser transmitter should work normally, the light should be stable, and there should be no obvious drift. The receiver should be able to accurately receive the laser signal and control the leveling machine to operate according to the preset elevation.
(2) Leveling system: The scraper, vibrator and other components of the leveling machine should work normally without obvious wear, deformation, etc. The leveled ground should be smooth, without waves, bubbles, etc.
(3) Power system: Power systems such as engines and motors should work normally without abnormal noise, vibration, etc. Parameters such as oil pressure and water temperature should be within the normal range.
3. Safety performance check
Equipment safety performance inspection mainly includes the following aspects:
(1) Safety protection devices: The equipment should be equipped with complete safety protection devices, such as protection devices, emergency stop buttons, etc. These devices should be intact and functioning properly.
(2) Electrical system: Electrical circuits should be arranged neatly and without damage or exposure. The grounding of the equipment should be firm and reliable to ensure the safety of electricity.
(3) Operation convenience: The operation interface of the equipment should be clear and easy to understand, and the operating handles, switches, etc. should be sensitive and reliable and easy for operators to use.
✔ Acceptance process of concrete laser leveling machine
1.Preparation stage
Before acceptance, relevant acceptance tools should be prepared, such as distance meters, spirit levels, vibration testers, etc. At the same time, an acceptance team should be formed to clarify their respective responsibilities and tasks. In addition, you should also be familiar with the equipment's technical specifications, operating procedures and other related documents, and understand the equipment's performance characteristics and operating requirements.
2. Appearance inspection
Conduct a comprehensive inspection of the appearance of the equipment in accordance with the equipment appearance inspection requirements in the acceptance standards. If problems are discovered, they should be recorded in time and take photos to facilitate subsequent processing.
3.Performance check
In accordance with the equipment performance inspection requirements in the acceptance standards, inspect each performance of the equipment one by one. Such as the calibration of the laser system, the flatness test of the leveling system, the oil pressure and water temperature detection of the power system, etc. During the inspection process, the operating procedures should be strictly followed to ensure the accuracy of the inspection results.
4. Safety performance check
Conduct a comprehensive inspection of the safety performance of the equipment in accordance with the safety performance inspection requirements in the acceptance standards. Such as the integrity of safety protection devices, the safety of electrical circuits, the grounding of equipment, etc. During the inspection, special attention should be paid to potential safety hazards and dealt with promptly.
5. Rectification and re-inspection
If problems are found during the inspection, the supplier should be notified promptly for rectification. After the rectification is completed, the acceptance team should conduct a re-inspection to ensure that the problem is completely resolved. If the problem is serious and cannot be rectified or the acceptance standards are still not met after rectification, acceptance should be refused and the equipment should be returned or replaced.
6. Preparation and filing of acceptance report
After passing the acceptance, the acceptance team should prepare a detailed acceptance report. The report should include the acceptance process, problems discovered and their rectification status, acceptance conclusions, etc. The acceptance report should be true, accurate, complete, and archived for subsequent reference.
✔ Actual case analysis
Taking a floor construction project in an industrial park as an example, the project uses a concrete laser leveling machine to perform ground leveling operations. During the project acceptance phase, the acceptance team conducted strict checks in accordance with the above acceptance standards and processes.
1. During the appearance inspection,
the acceptance team found minor scratches and paint peeling on the surface of the equipment. After communication and negotiation with the supplier, the supplier agreed to repair and repaint the equipment.
2. During the performance inspection,
the acceptance team found that there was a deviation in the calibration of the laser system, resulting in the flatness of the ground being substandard. After inspection, it was found that the problem was caused by the improper installation position of the laser transmitter. The supplier promptly reinstalled and calibrated the laser transmitter, and the problem was resolved.
3. During the safety performance inspection,
the acceptance team found that the electrical circuits of the equipment were exposed, posing safety hazards. The supplier immediately insulated the exposed parts and strengthened safety protection measures.
After rectification and re-inspection, all indicators of the equipment met the acceptance standards. The acceptance team finally issued a detailed acceptance report and archived it.
✔ Conclusion
Through a detailed discussion of the acceptance criteria and acceptance process of concrete laser leveling machines and analysis of actual cases, we can see that strict acceptance work is of great significance to ensure equipment performance and construction quality. In the future, with the advancement of technology and the continuous development of the market, we look forward to more innovations and breakthroughs in performance and safety of concrete laser leveling machines, bringing more convenience and value to the floor construction industry. At the same time, we also call on relevant departments and enterprises to strengthen their understanding of the importance and necessity of equipment acceptance work, improve the scientificity and standardization of acceptance standards and processes, and provide a strong guarantee for the healthy development of the industry.
Thanks to All the Friends Who Support and Trust Shandong Vanse Machinery Technology Co., Ltd.
If you want to know more about Shandong Vanse Machinery Technology Co., Ltd. or have any questions, please feel free to contact us:
Our Factory
Shandong Vanse Machinery Technology Co., Ltd.
Share this article
About the Author: Shandong Vanse Machinery Technology Co., Ltd.
Shandong Vanse Machinery Technology Co., Ltd. is a high-tech manufacturer specializing in concrete construction machinery, including laser screeds and related equipment. The company integrates R&D, production, and global sales, with products exported to over 60 countries and widely used in infrastructure projects worldwide.
Previous Post
Next Post
Related Articles
You Might Also Like

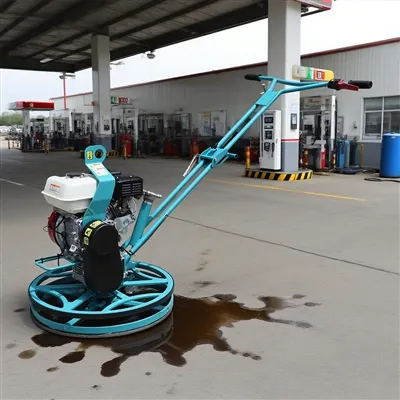

Technical tips for leveling the power trowel chassis and calibrating the blade height consistency
